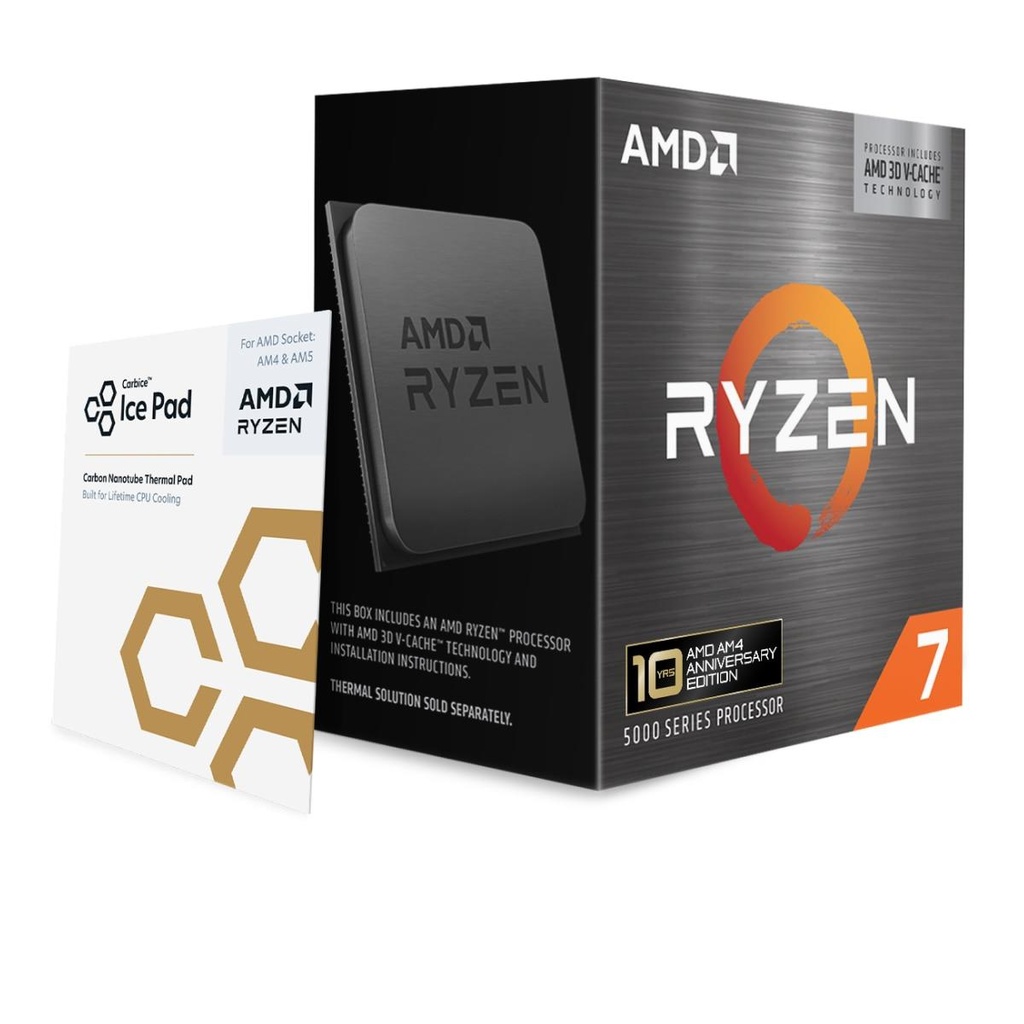

The AMD Ryzen™ 7 5800X3D is the ultimate gaming processor on any DDR4 platform. Every 10th Anniversary Edition AMD Ryzen™ 7 5800X3D Processor includes a Carbice® Ice Pad™.
General
| Unit Calculated Weight | 0.162 kg |
| Unit Calculated Volume | 0.001601 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | AMD Ryzen 7 5800X3D. Processor family: AMD Ryzen™ 7, Processor socket: Socket AM4, Processor lithography: 7 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR4-SDRAM. Processing Die size: 74 mm², Compatible operating systems: Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.075 |
Processor
| Compatible chipsets | AMD A520/AMD B450/AMD B550/AMD X470/AMD X570 |
| Cooler included | No |
| Package type | Box |
| Processor base frequency | 3.4 GHz |
| Processor boost frequency | 4.5 GHz |
| Processor cache | 96 MB |
| Processor cache type | L3 |
| Processor cores | 8 |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 5000 Series |
| Processor lithography | 7 nm |
| Processor manufacturer | AMD |
| Processor model | 5800X3D |
| Processor operating modes | 64-bit |
| Processor socket | Socket AM4 |
| Processor threads | 16 |
| Thermal Design Power (TDP) | 105 W |
Memory
| ECC | Yes |
| Maximum internal memory supported by processor | 128 GB |
| Memory channels | Dual-channel |
| Memory clock speeds supported by processor | 2667/2933/3200 MHz |
| Memory types supported by processor | DDR4-SDRAM |
Graphics
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| On-board graphics card model | Not available |
Features
| Compatible operating systems | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit |
| PCI Express slots version | 4.0 |
| Processing Die size | 74 mm² |
Operational conditions
| Minimum operating temperature | 90 °C |
