Enhance your setup with the 24B36X 24" FHD monitor for work & entertainment
The 24B36X is built for seamless transitions between productivity and entertainment. Its 24" FHD display delivers fluid visuals with a 144Hz refresh rate and ultra-fast 0.5ms MPRT. Adaptive Sync ensures tear-free performance, while HDR10 brings rich contrast and color. Designed for comfort, Low Blue Light technology helps reduce eye strain—making the 24B36X a smart, versatile choice for any workspace or gaming station.
General
| Unit Calculated Weight | 4.19 kg |
| Product Net Weight | 2.52 kg |
| Unit Calculated Volume | 0.02746 cubm |
| Units per Pallet | 0 |
| Summary | AOC B3 24B36X. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black |
| CnCode | 85285291 |
| Unit Box Height | 0.372 |
| Unit Box Length | 0.605 |
| Unit Box Width | 0.122 |
| Model name | 24B36X |
Display
| Adobe RGB coverage | 91.6 % |
| Anti-glare screen | Yes |
| Backlight type | W-LED |
| Contrast ratio (dynamic) | 20000000:1 |
| Contrast ratio (typical) | 1500:1 |
| DCI-P3 coverage | 95.8 % |
| Digital horizontal frequency | 30 - 160 kHz |
| Digital vertical frequency | 48 - 144 Hz |
| Display diagonal | 23.8 " |
| Display diagonal (metric) | 60.4 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| LED backlight | Yes |
| Maximum refresh rate | 144 Hz |
| Native aspect ratio | 16:9 |
| NTSC coverage (typical) | 112 % |
| Panel type | IPS |
| Pixel density | 92.5 ppi |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Response time | 4 ms |
| Response time (MPRT) | 0.5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| sRGB coverage (typical) | 128.8 % |
| Surface hardness | 3H |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync refresh rate range | 48 - 144 Hz |
| Flicker-free technology | Yes |
| Game mode | Yes |
| Low Blue Light technology | Yes |
| VESA Adaptive Sync support | Yes |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | No |
Design
| Detachable stand | Yes |
| Front bezel colour | Black |
| Market positioning | Gaming |
| Product colour | Black |

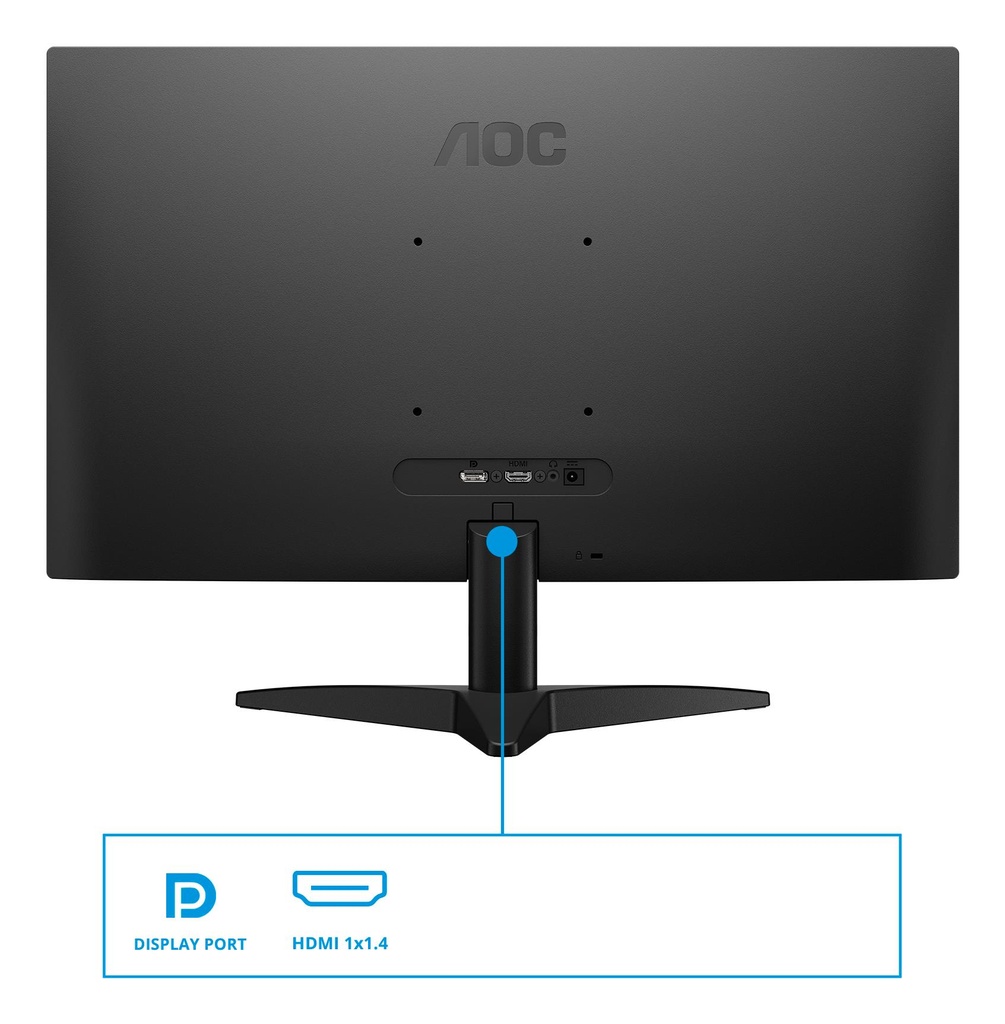

Ports & interfaces
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDCP version | 1.4 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone connectivity | 3.5 mm |
| Headphone out | Yes |
Ergonomics
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| VESA mounting | Yes |
Power
| Energy consumption (HDR) per 1000 hours | 21 kWh |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Energy efficiency class (HDR) | F |
| Energy efficiency class (SDR) | D |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 18 W |
| Power supply type | External |
Weight & dimensions
| Depth (with stand) | 198 mm |
| Depth (without stand) | 35.1 mm |
| Height (with stand) | 414.5 mm |
| Height (without stand) | 318.5 mm |
| Weight (with stand) | 2520 g |
| Weight (without stand) | 2210 g |
| Width (with stand) | 544 mm |
| Width (without stand) | 544 mm |
Packaging data
| Package depth | 124 mm |
| Package height | 378 mm |
| Package weight | 4650 g |
| Package width | 610 mm |
Packaging content
| Cables included | AC/HDMI |
| HDMI cable length | 1.5 m |
Other features
| Bezel thickness type | Ultra Narrow |
| Certification | WEEE,REACH compliant,RoHs compliant,CB,TUV-Bauart-Mark,ISO 9241-307,EAC,FCC |
| Compliance certificates | CE |
| Warranty period | 3 year(s) |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2326185/fiches?language=EN |
| Energy efficiency class | D |
| EPREL Registration Number | 2326185 |
| EPREL Version Number | 1 |
