The 24G4ZR delivers ultra-fast precision and smooth clarity for peak competitive performance
Dominate every match with the 24G4ZR. Its Fast IPS panel, 260Hz OC / 240Hz native refresh rate, and 1ms GtG ensure crystal-clear motion and instant responsiveness. G-Sync Compatible, Low Input Lag, and 0.3ms MPRT keep gameplay fluid and sharp. With HDR10, an ergonomic esports stand, and G-Menu control, this monitor is built for pure competitive advantage.
General
| Unit Calculated Weight | 6.64 kg |
| Unit Calculated Volume | 0.03795 cubm |
| Units per Pallet | 0 |
| Summary | AOC G4 24G4ZR. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 1 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting, Height adjustment. Product colour: Black, Red |
| Unit Box Height | 0.42 |
| Unit Box Length | 0.65 |
| Unit Box Width | 0.139 |
| Model name | 24G4ZR |
Display
| Adobe RGB coverage | 86.6 % |
| Anti-glare screen | Yes |
| Backlight type | W-LED |
| Contrast ratio (typical) | 1000:1 |
| DCI-P3 coverage | 87.7 % |
| Digital horizontal frequency | 30 - 290 kHz |
| Digital vertical frequency | 48 - 260 Hz |
| Display diagonal | 23.8 " |
| Display diagonal (metric) | 60.5 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| LED backlight | Yes |
| Maximum refresh rate | 260 Hz |
| Native aspect ratio | 16:9 |
| Panel type | Fast IPS |
| Pixel density | 92.56 ppi |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Response time | 1 ms |
| Response time (MPRT) | 0.3 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| sRGB coverage (typical) | 111.7 % |
| Surface hardness | 3H |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| NVIDIA G-SYNC | No |
| VESA Adaptive Sync support | Yes |
Design
| Detachable stand | Yes |
| Front bezel colour | Black |
| Product colour | Black,Red |

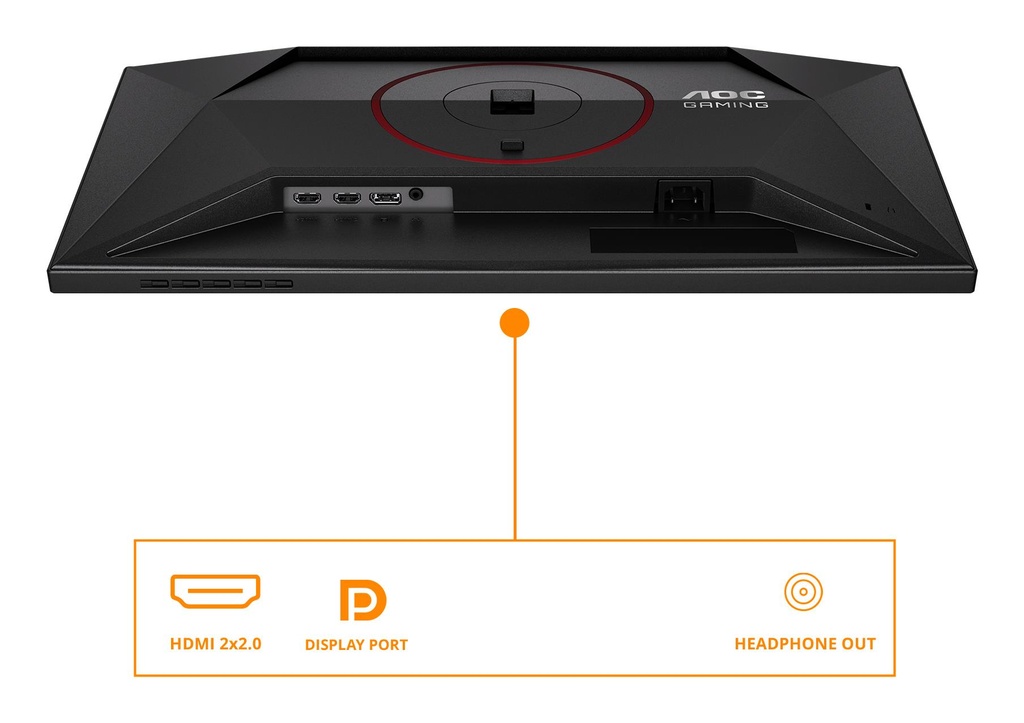

Ports & interfaces
| Audio output | Yes |
| Built-in USB hub | No |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Headphone connectivity | 3.5 mm |
| Headphone out | Yes |
| Headphone outputs | 1 |
Ergonomics

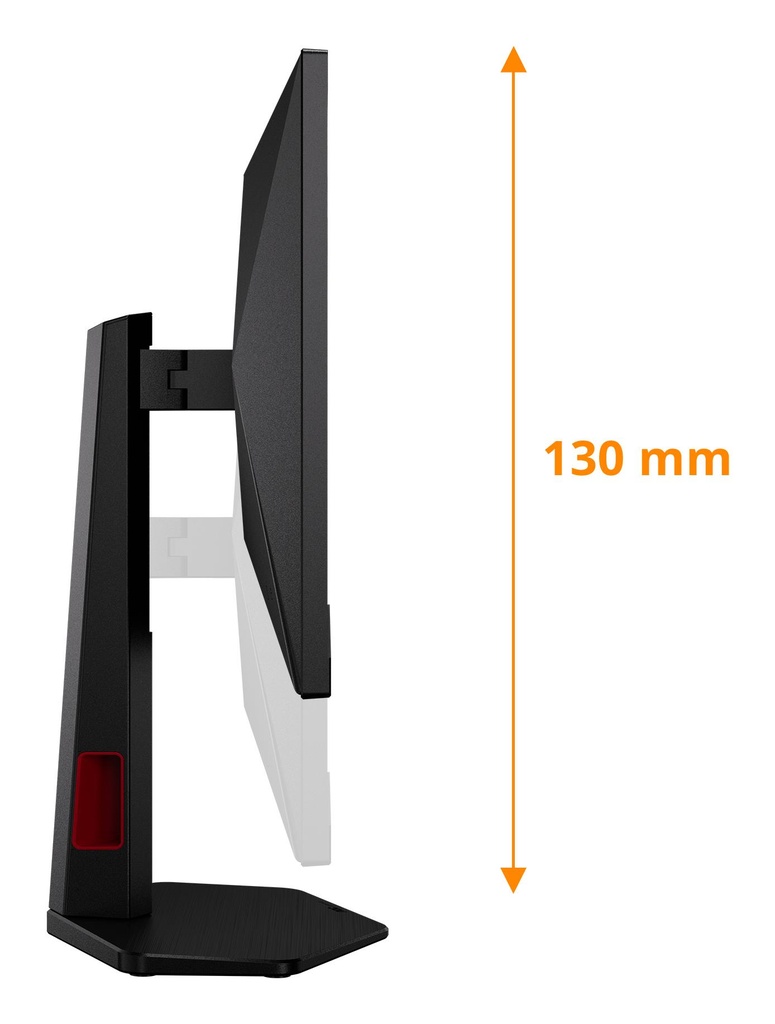

| Adjustable height (max) | 130 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Height adjustment | Yes |
| Panel mounting interface | 100 x 100 mm |
| Pivot | Yes |
| Pivot angle | -90 - 90 ° |
| Swivel angle range | -28 - 28 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 21 ° |
| VESA mounting | Yes |
Power
| Energy consumption (HDR) per 1000 hours | 22 kWh |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Energy efficiency class (HDR) | F |
| Energy efficiency class (SDR) | E |
| Energy efficiency scale | A to G |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 18 W |
| Power supply type | Internal |
Weight & dimensions
| Depth (with stand) | 207.7 mm |
| Depth (without stand) | 50.62 mm |
| Height (with stand) | 380.6 mm |
| Height (without stand) | 324.84 mm |
| Weight (with stand) | 4380 g |
| Weight (without stand) | 2580 g |
| Width (with stand) | 540 mm |
| Width (without stand) | 540 mm |
Packaging data
| Package depth | 139 mm |
| Package height | 420 mm |
| Package weight | 6640 g |
| Package width | 650 mm |
Packaging content
| Cables included | AC/DisplayPort/HDMI |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
Other features
| Bezel thickness type | Frameless |
| Brand specific technologies | Crosshair |
| Certification | WEEE,REACH compliant,RoHs compliant,CB,TUV-Bauart-Mark,ISO 9241-307,EAC,FCC |
| Compliance certificates | CE |
| Dial point | Yes |
| FPS counter | Yes |
| Local dimming | Yes |
| Low input lag | Yes |
| Motion blur reduction | Yes |
| Shadow control | Yes |
| Warranty period | 3 year(s) |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2486234/fiches?language=EN |
| Energy efficiency class | E |
| EPREL Registration Number | 2486234 |
| EPREL Version Number | 1 |
