From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

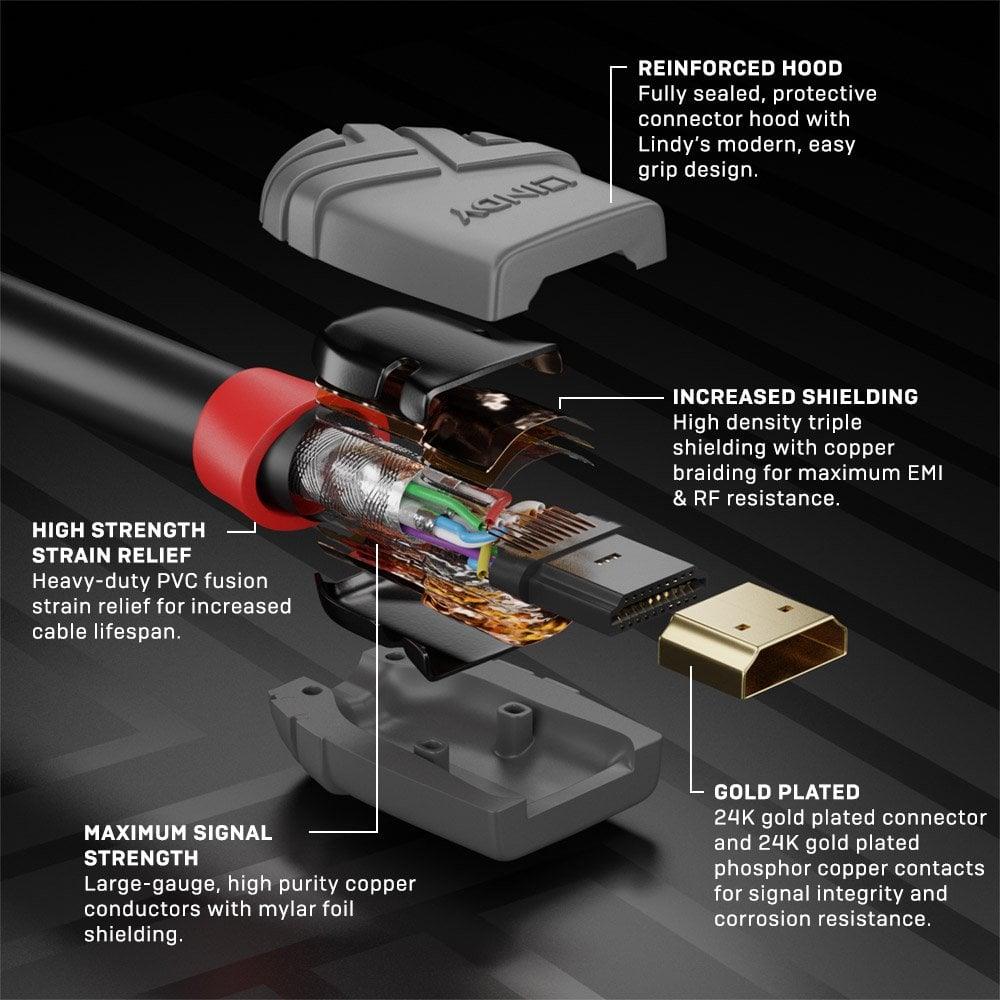

Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.
Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
- Superior performance and design Standard HDMI 2.0 cable
- Supports UHD resolutions up to 4096x2160@60Hz 4:2:0 8bit
- Robust PVC housing, gold plated connectors and contacts
- Triple shielded cable, corrosion resistant bare copper 24AWG conductors
- HDMI 2.0 compliant, 3D, 4K, 10.2Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty
General
| Unit Calculated Weight | 0.936 kg |
| Unit Calculated Volume | 0.004905 cubm |
| Units per Shipping Box | 7 |
| Units per Pallet | 0 |
| Summary | Lindy 7.5m Standard HDMI Cable, Anthra Line. Cable length: 7.5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Data transfer rate: 10.2 Gbit/s, Product colour: Black, Grey |
| CnCode | 85444290 |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.21 |
Features
| 3D | Yes |
| AWG wire size | 24 |
| Bending radius (min) | 98 mm |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 7.5 m |
| Cable material | Copper |
| Cable type | Round cable |
| Colour sampling | 4:2:0 |
| Connector 1 | HDMI Type A (Standard) |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Connector housing material | Polyvinyl chloride (PVC) |
| Contact material | Phosphor bronze |
| Data transfer rate | 10.2 Gbit/s |
| Dolby technologies | Dolby TrueHD/DTS-HD Master Audio |
| HDMI version | 2.0 |
| Maximum refresh rate | 60 Hz |
| Nominal attenuation | 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB |
| Product colour | Black/Grey |
| Shield material | Aluminium |
| Supported graphics resolutions | 3840 x 2160 |
Operational conditions
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
Certificates
| Certification | RoHS, REACH, UL |
| Compliance certificates | RoHS |
Weight & dimensions
| Cable diameter | 9.8 mm |
| Connector 1 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm |
| Connector 2 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm |
Packaging data
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
Logistics data
| Harmonized System (HS) code | 84733080 |
