Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion. Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections.
Principle of operation
Detects human presence by temperature difference with background thermal radiation. The microwave sensor prevents false alarms caused by complex interference.
Features
Designed for operation in rooms with fireplaces and air conditioners. Detects and ignores draughts, movement of curtains and blinds, and light flickering, glare and reflections.
Installation and set up

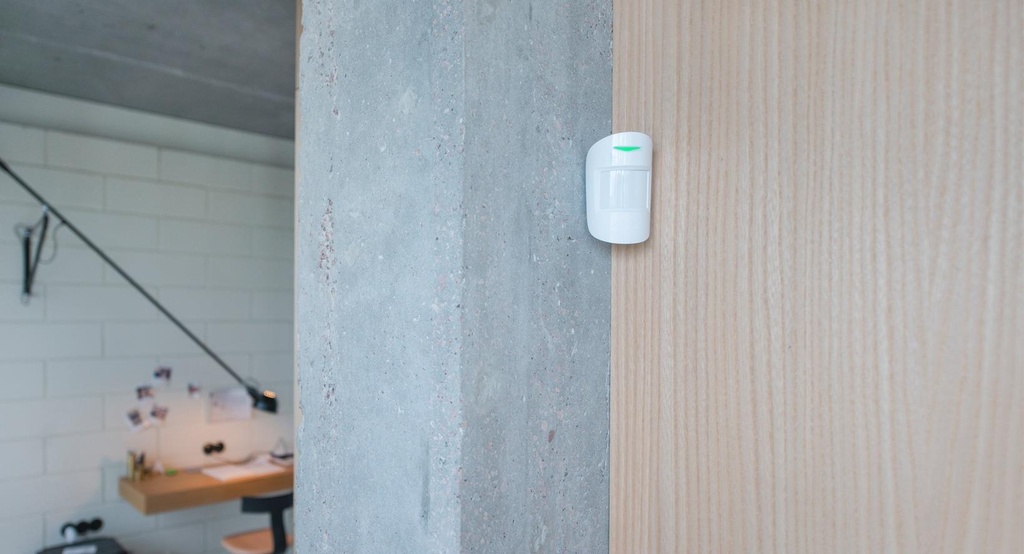

Ready to operate straight out the box. The battery is already installed inside, therefore there is no need to disassemble the detector. It can be mounted in just a few minutes using the SmartBracket mount.
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
- The additional microwave sensor filters possible interference from the air conditioner and curtain movement
- The device operates up to 5 years without battery replacement
- Ignores pets weighing up to 20 kg and with a height up to 50 cm
General
| Unit Calculated Weight | 0.14 kg |
| Unit Calculated Volume | 0.000598 cubm |
| Units per Shipping Box | 1 |

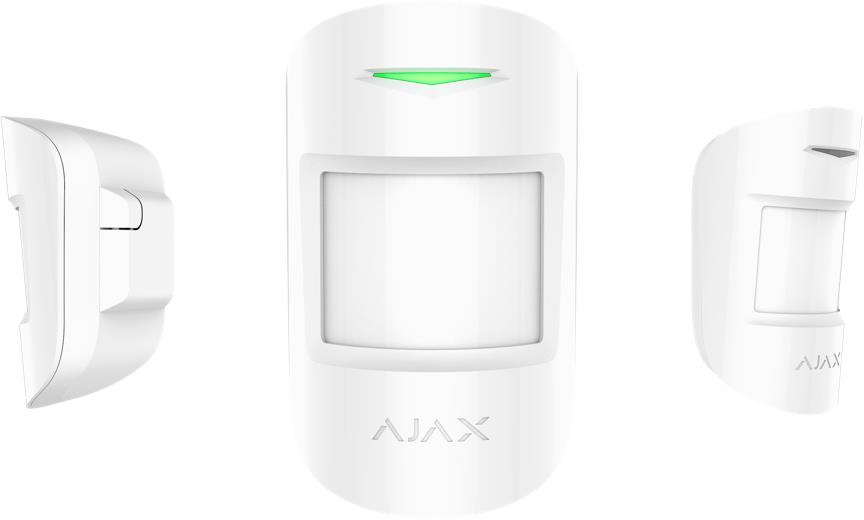

| Summary | Ajax MotionProtect Plus. Mounting type: Wall, Placement: Indoor, Product colour: White. Sensor type: Passive infrared (PIR) sensor/Microwave sensor, Connectivity technology: Wireless, Detection distance: 12 m. Power source type: Battery, Battery life: 5 year(s), Battery type: CR123A. Width: 65 mm, Depth: 50 mm, Height: 110 mm |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.115 |
| Unit Box Width | 0.08 |
| Model name | MotionProtect Plus |
Security
| Connectivity technology | Wireless |
| Detection distance | 12 m |
| False alarm protection | Yes |
| Interface | RF |
| Pet immunity (max) | 20 kg |
| Sensor type | Passive infrared (PIR) sensor/Microwave sensor |
| Tamper protection | Yes |
| Transmission distance | 1200 m |
Features
| Detection angle | 88.5 ° |
| Installation height (max) | 2.4 m |
| International Protection (IP) code | IP50 |
| LED indicators | Yes |
| Mounting type | Wall |
| Placement | Indoor |
| Product colour | White |
| Security algorithms | AES |
Power
| Battery life | 5 year(s) |
| Battery type | CR123A |
| Battery voltage | 3 V |
| Power source type | Battery |
Operational conditions
| Operating relative humidity (H-H) | 0 - 75 % |
| Operating temperature (T-T) | -10 - 40 °C |
Weight & dimensions
| Depth | 50 mm |
| Height | 110 mm |
| Weight | 96 g |
| Width | 65 mm |
Packaging content
| Manual | Yes |
