Eaton 3S provides power and surge protection for desktop computers, wireless networks, gaming consoles, and other critical equipment in your home or business.
- Eaton 3S supplies battery backup power during outage and advanced surge protection to prevent damage from lightning strikes or accidental grid surge
- Compact and appealing design with glossy finish will perfectly fit in any modern residential or office environment

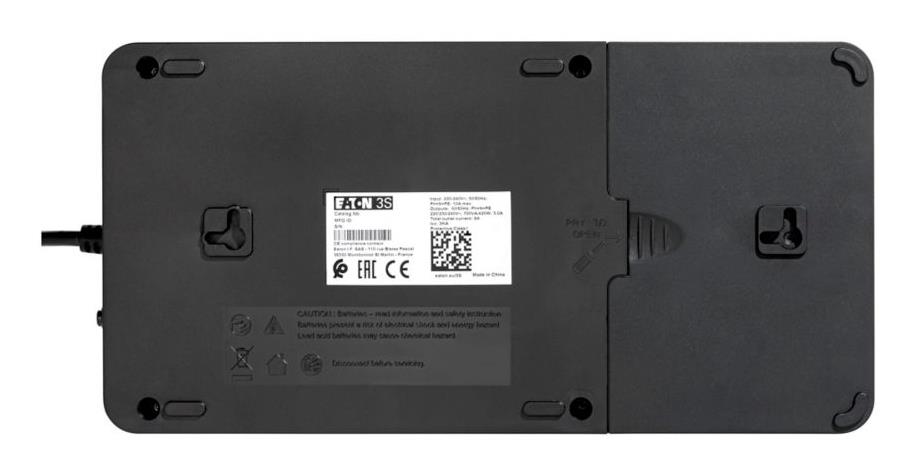

- To facilitate installation, wall mounting system is implemented on all models
- Surge protection circuits are compliant with IEC 61643-11 international standard
- 10A circuit breaker protects your equipment from overload (all models)
- Eaton offers free warranty for the equipment connected (applicable in EU countries and Norway only). This guarantee is included in the purchase price of all Eaton 3S products and covers unlimited warranty, covering damage due to the surge protection failure
General
| Unit Calculated Weight | 5.15 kg |
| Unit Calculated Volume | 0.01549 cubm |
| Units per Shipping Box | 1 |
| Summary | Eaton 3S850D. UPS topology: Standby (Offline), Output power capacity: 0.85 kVA, Output power: 510 W. AC outlet types: Type F, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Product colour: Black, White, Cable length: 1.5 m. Certification: CE/EAC/Ukr/Cm/CB report |
| Unit Box Height | 0.243 |
| Unit Box Length | 0.396 |
| Unit Box Width | 0.161 |
Features
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 284 V |
| Input operation voltage (min) | 161 V |
| Maximum current | 10 A |
| Output frequency | 50 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 510 W |
| Output power capacity | 0.85 kVA |
| Power protection features | Overdischarge |
| Surge protection | Yes |
| UPS topology | Standby (Offline) |
Ports & interfaces
| AC outlet types | Type F |
| AC outlets quantity | 8 AC outlet(s) |

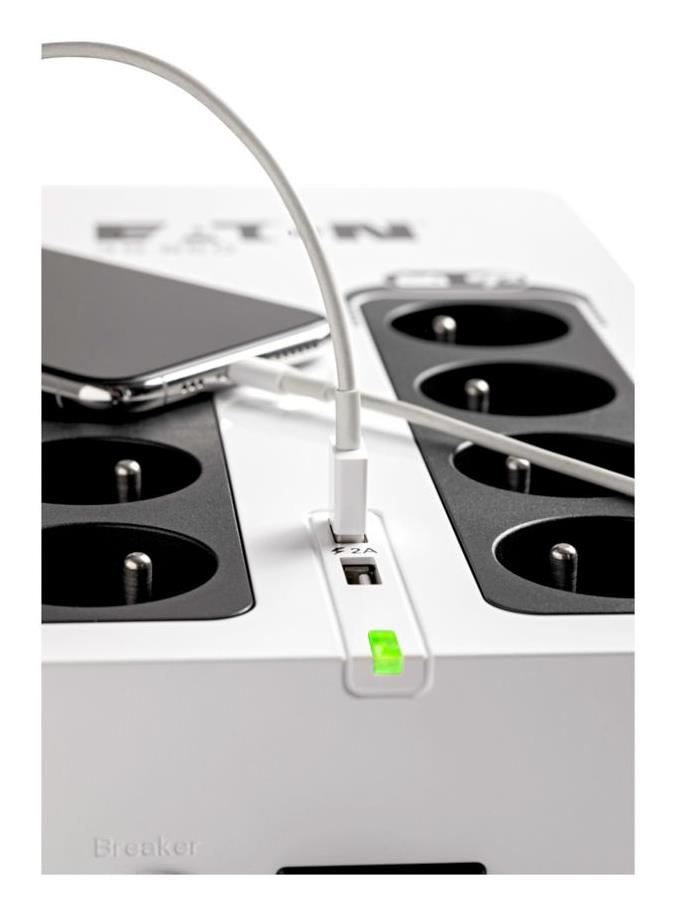

| USB 2.0 ports quantity | 2 |
| USB port | Yes |
Battery
| Automatic battery test | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cold start | Yes |
| Hot-swap battery | No |
Design
| Cable length | 1.5 m |
| LED indicators | Yes |
| Product colour | Black,White |
Operational conditions
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | CE/EAC/Ukr/Cm/CB report |
Safety regulation & standards
| Safety | IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11 |
Weight & dimensions
| Depth | 170 mm |
| Height | 86 mm |
| Weight | 4300 g |
| Width | 335 mm |
Logistics data
| Harmonized System (HS) code | 85078000 |
Other features
| Nominal input voltage | 230 V |
