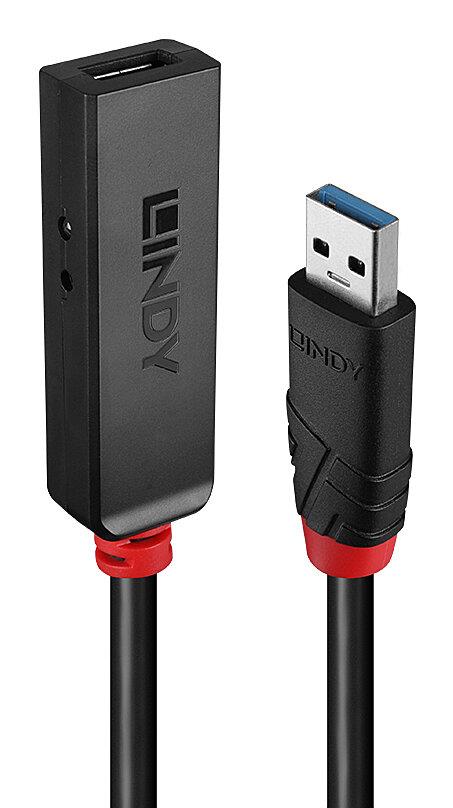

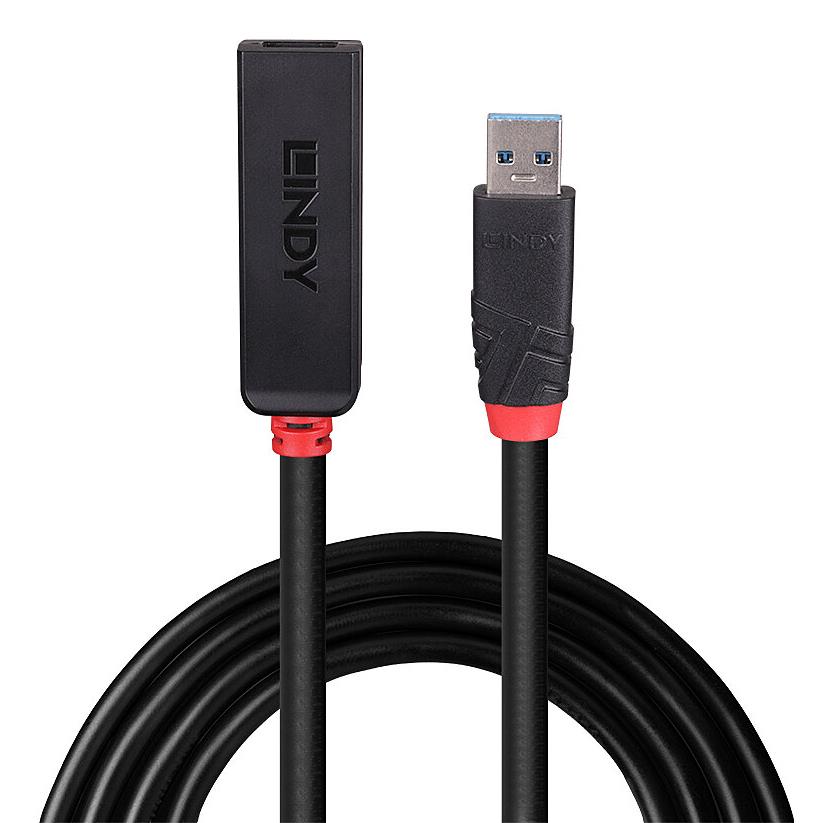

CABLE USB3 EXTENSION 5M/43401 LINDY

Kainos tik partneriams Prisijungti B2B

LINDY
Garantija: 24 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: LINDY

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 3m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning.

Up to 5 of these USB 3.0 Active Extensions Slim can be chained together. In addition, a maximum of 5 of the different cable lengths of these USB 3.0 Active Extensions Slim can be combined with each other. The only exception is the 15m version No. 43404: as it has 2 chipsets, a maximum of 3 other USB 3.0 Active Extensions Slim can be combined with it.

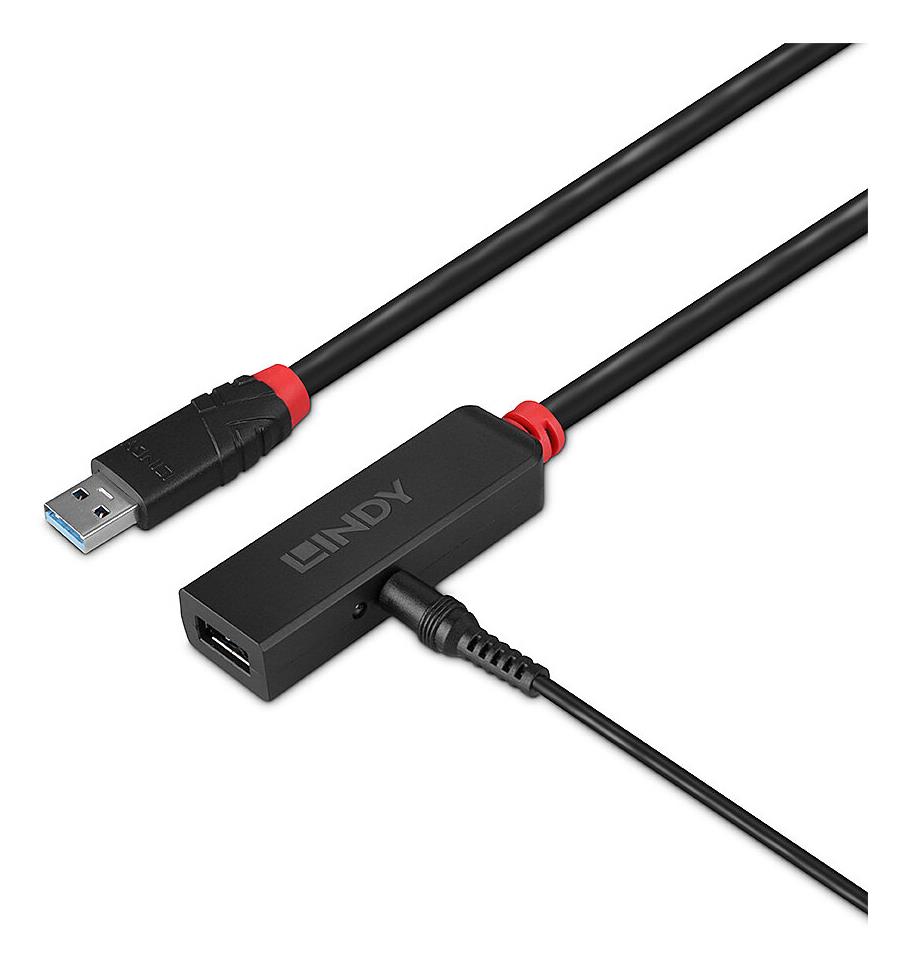

The Lindy USB 3.0 Active Extension Slim is supplied with power via the USB bus, but also has a DC socket for connecting a power supply unit for devices with high power requirements or if you want to connect several cables in series.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

  • USB 3.0 Active Extension Repeater Lead
  • Supports transfer rates up to 5Gbps

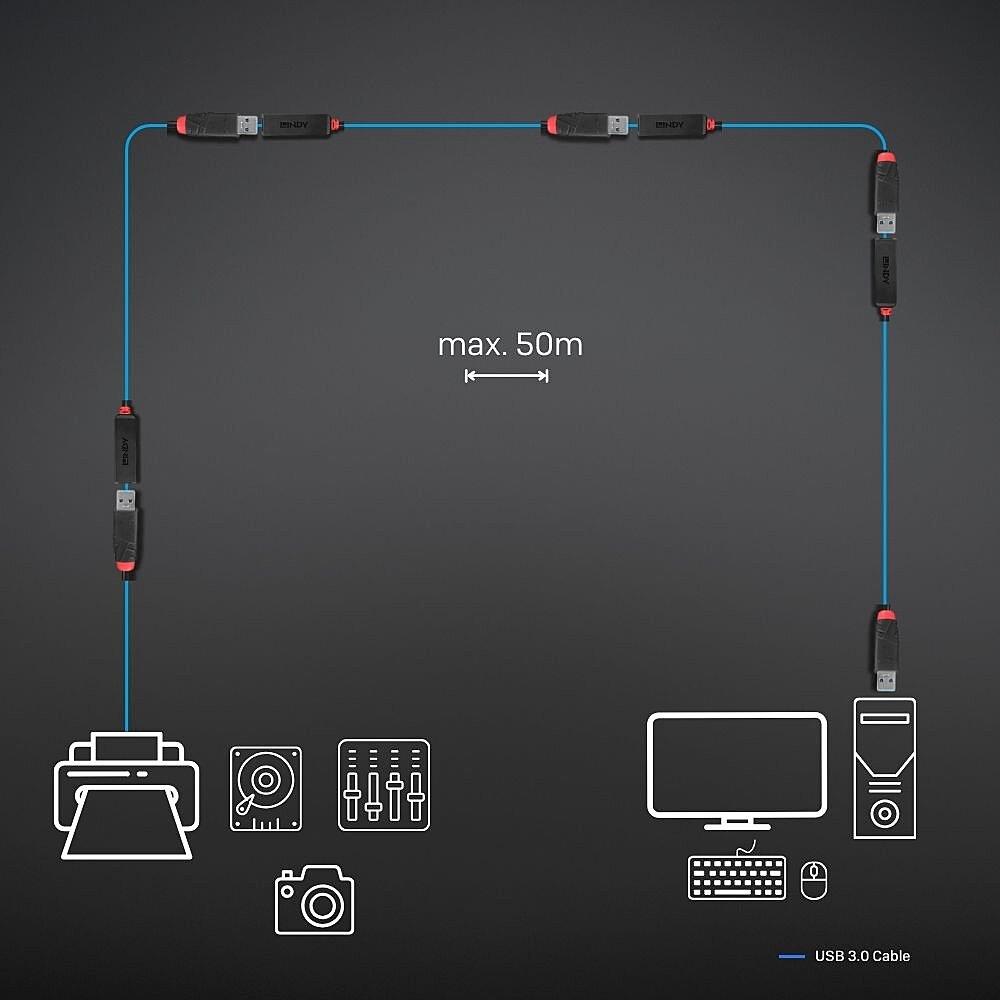

  • For even greater distances simply connect up to 5 cables in series
  • USB Power Adapter cable included
General
Unit Calculated Weight0.42 kg
Unit Calculated Volume0.001587 cubm
Units per Shipping Box1
SummaryLindy 5m USB 3.0 Active Extension Slim. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Power supply type: DC. Weight: 260 g, Connector 1 dimensions (WxDxH): 41.1 x 16.5 x 9.5 mm, Connector 2 dimensions (WxDxH): 67.5 x 22 x 13.5 mm. Quantity per pack: 1 pc(s), Package width: 236 mm, Package depth: 255 mm
Unit Box Height0.23
Unit Box Length0.23
Unit Box Width0.03
Model43401
Ports & interfaces
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Features
AWG wire size26
Cable diameter6.5 mm
Cable jacket materialPolyvinyl chloride (PVC)
Cable length5 m
Cable typeRound cable
CertificationCE, FCC, RoHS & REACH, CP65
Conductor materialTinned copper
Connector contacts platingNickel
Data transfer rate5000 Mbit/s
Housing materialAcrylonitrile butadiene styrene (ABS)
LED indicatorsYes
Plug and PlayYes
Product colourBlack
Transmission mediumTwisted pair
Power
Power supply typeDC
Weight & dimensions
Connector 1 dimensions (WxDxH)41.1 x 16.5 x 9.5 mm
Connector 2 dimensions (WxDxH)67.5 x 22 x 13.5 mm
Weight260 g
Packaging data
Package depth255 mm
Package typePolybag
Package weight300 g
Package width236 mm
Quantity per pack1 pc(s)
Packaging content
ManualYes
Quick start guideYes
Operational conditions
Maximum operating temperature40 °C
Minimum operating temperature0 °C
Operating temperature (T-T)0 - 40 °C
Operating temperature (T-T)32 - 104 °F
Storage temperature (T-T)-10 - 60 °C
Technical details
Compliance certificatesCE/Federal Communications Commission (FCC)/REACH/RoHS
