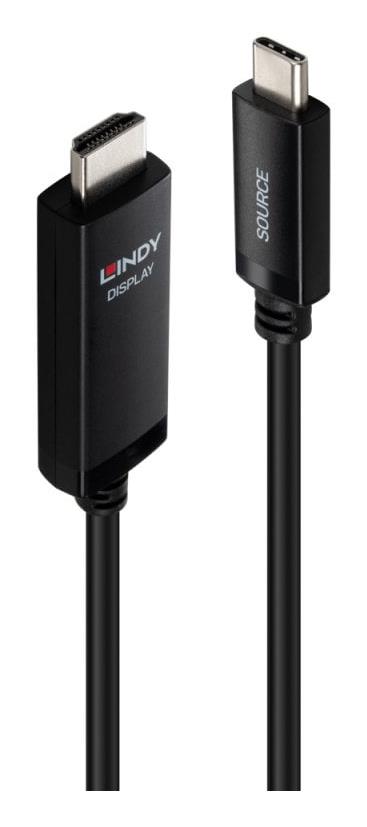

This Lindy USB Type C to HDMI® 8K60 Adapter Cable is a high performance solution, which allows users to easily add external video capabilities to a computer featuring the USB Type C port with additional support for DisplayPort 1.4 Alternate Mode. The HDMI® connector of the adapter cable can be directly connected to the HDMI® display - while the 5m cable allows for a more flexible positioning of the HDMI® display than when using a box converter - perfect for a simple and adaptable installation.
This cable supports resolutions up to 8K 7680x4320 60 Hz an 4K 144Hz making it the ideal tool for 8K game streaming or high resolution 8K video editing. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour. HDCP 2.2 ensures issue-free playback of 8K Ultra HD movies and other 8K content.
This cable is powered by the USB Bus, therefore no external power supply is needed and with ‘Plug and Play’ installation, this converter cable can be installed into an AV ecosystem with minimum difficulty, ideal for both professional and first time users.
- Connect a 8K HDMI® display to your computer´s USB Type C port
- Supports HDMI® resolutions up to 7680x4320@60Hz and 3840x2160@144Hz
- Requires DisplayPort Alternate Mode support by the USB Port/Bus
- Plug & Play, no drivers required
General
| Summary | Lindy 43436. Cable length: 5 m, Connector 1: USB Type-C, Connector 2: HDMI. Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UL. Connector 1 dimensions (WxDxH): 39.6 x 12 x 6.5 mm, Connector 2 dimensions (WxDxH): 71 x 21 x 11 mm. Package type: Polybag. Quantity per pack: 1 pc(s) |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.15 |
| Model name | 43436 |
Features
| AWG wire size | 32 |
| Bend radius (min) | 28.8 mm |
| Cable length | 5 m |
| Chipset | CS5565AN |
| Conductor material | Tinned copper |
| Connector 1 | USB Type-C |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | HDMI |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Connector housing material | Plastic |
| Data transfer rate | 48 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI version | 2.1 |
| Jacket material | Polyvinyl chloride (PVC) |
| Maximum refresh rate | 144 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Supported graphics resolutions | 3840 x 2160/7860 x 4320 |
| Supported video modes | 2160p/4320p |
| USB Type-C DisplayPort Alternate Mode | Yes |
Operational conditions
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/REACH/RoHS/UL |
Weight & dimensions
| Connector 1 dimensions (WxDxH) | 39.6 x 12 x 6.5 mm |
| Connector 2 dimensions (WxDxH) | 71 x 21 x 11 mm |
Packaging data
| Package type | Polybag |
Packaging content
| Quantity per pack | 1 pc(s) |
