Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic.
Even & Slim Bezel Design
The UH7Q-E series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience..
Convenient webOS Platform
The UH7Q-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fitsyou.
- HDR Support
- webOS Smart Platform
- Slim&Even Bezel
General
| Unit Calculated Weight | 20 kg |
| Unit Calculated Volume | 0.1578 cubm |
| Units per Pallet | 0 |
| Summary | LG UH7Q-E. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black |
| Unit Box Height | 0.8 |
| Unit Box Length | 1.36 |
| Unit Box Width | 0.145 |

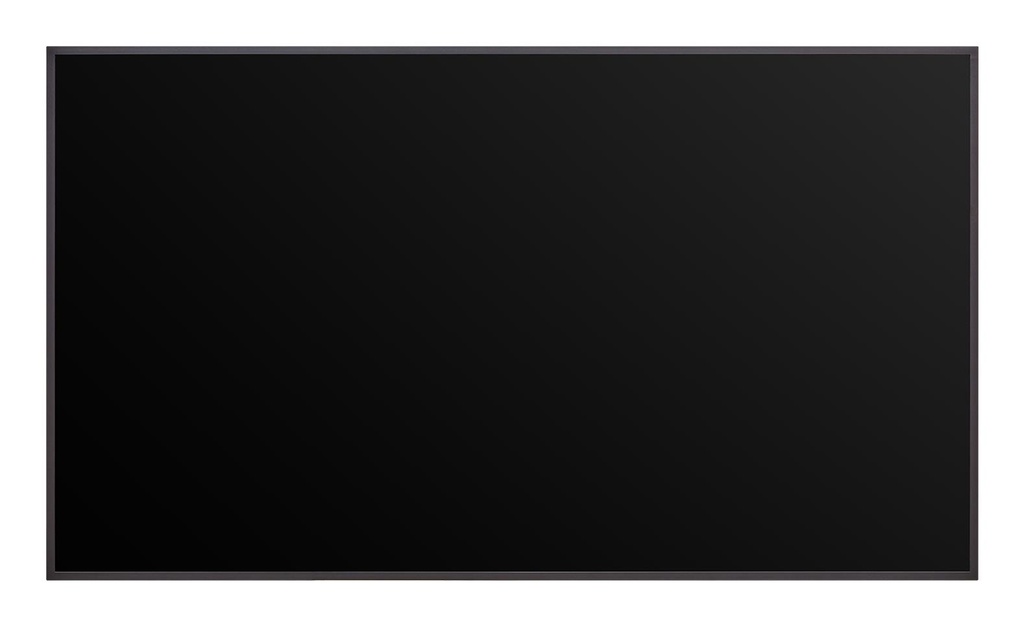

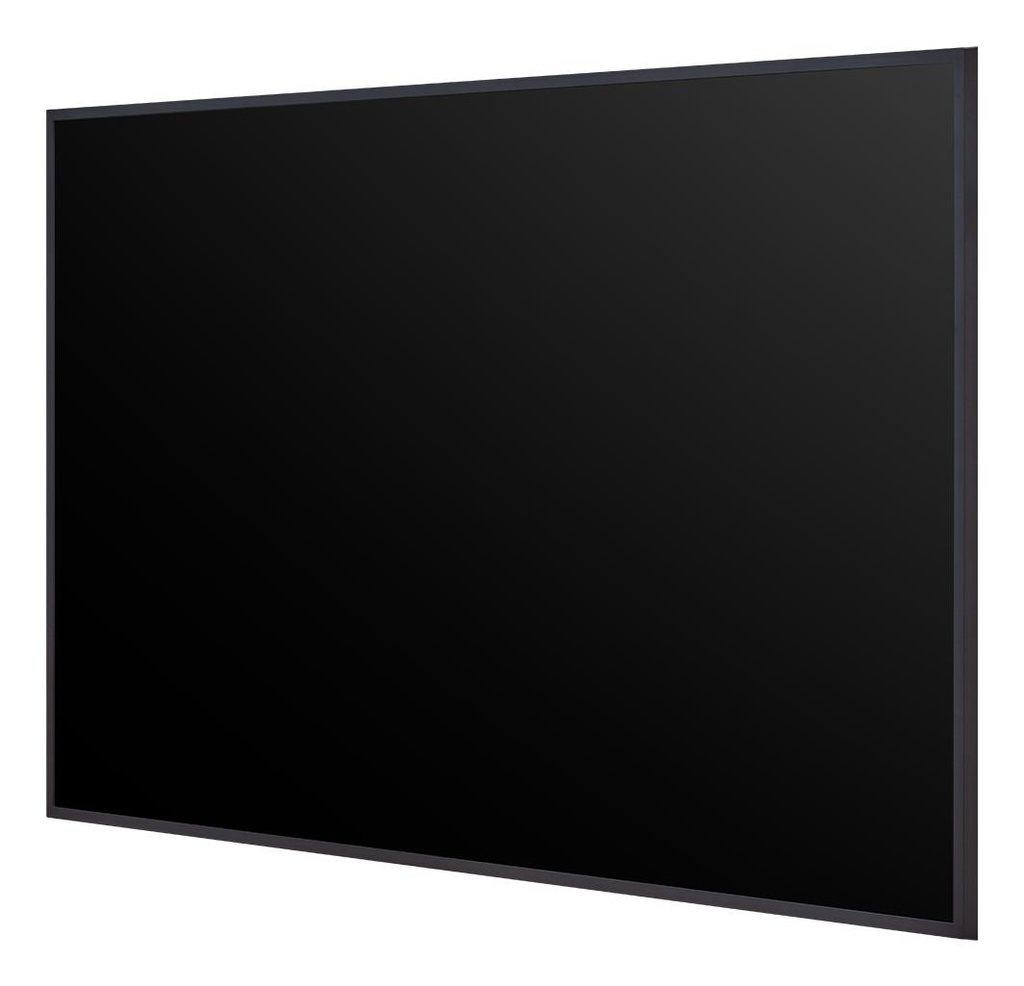

| Model name | UH7Q-E |
Display
| Colour depth | 10 bit |
| Colour gamut | 95 % |
| Contrast ratio (dynamic) | 1000000:1 |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 700 cd/m² |
| Display diagonal | 55 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| Haze rate | 25 % |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Panel type | ADS |
| Rated lifetime | 50000 h |
| Response time | 8 ms |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Ports & interfaces
| Audio (L/R) out | 1 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| RS-232C | Yes |
| USB connector type | USB Type-A/USB Type-C |
| USB port | Yes |
| USB ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB version | 2.0 |
Audio
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Design
| Bezel colour | Black |
| Panel mounting interface | 300 x 300 mm |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| VESA mounting | Yes |
Performance
| International Protection (IP) code | IP5X |
| On Screen Display (OSD) languages | Multi |
| Operating hours (hours/days) | 24/7 |
| Purpose | Universal |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Energy consumption (SDR) per 1000 hours | 101 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | G |
| Power consumption (max) | 103 W |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 160 W |
Computer system
| Built-in processor | No |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Operating system installed | WebOS |
Weight & dimensions
| Display depth | 29.7 mm |
| Display height | 710.8 mm |
| Display width | 1239 mm |
Packaging data
| Package depth | 152 mm |
| Package height | 810 mm |
| Package weight | 20500 g |
| Package width | 1360 mm |
Packaging content
| Cables included | AC/USB Type-C |
| Remote control included | Yes |
| Tilt angle | 15 ° |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
Network
| Ethernet LAN | Yes |
| Wi-Fi | No |
Brand-specific features
| LG technologies (AV/TV) | Smart Energy Saving |
Features
| Wall mountable | Yes |
Technical details
| Compliance certificates | CE/Federal Communications Commission (FCC)/KC |
| Sustainability certificates | ENERGY STAR/ErP |
Other features
| Bezel width | 11.4 mm |
| Power supply type | Internal |
| Safety | CB / NRTL |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2459675/fiches?language=EN |
| Energy efficiency class | G |
| EPREL Registration Number | 2459675 |
| EPREL Version Number | 3 |
