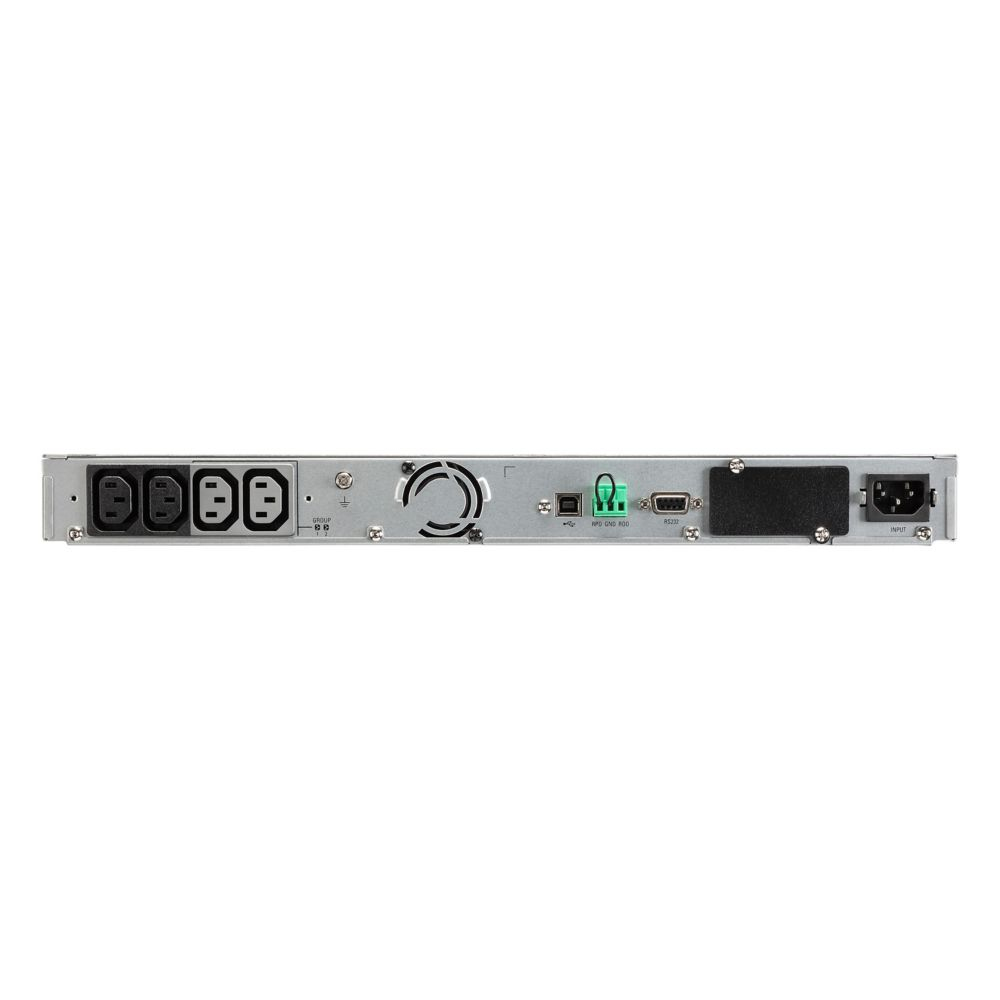

EATON 520 Watts 650 VA LineInteractive 5P650IRG2
General
| Unit Calculated Weight | 11.2 kg |
| Unit Calculated Volume | 0.04595 cubm |
| Units per Shipping Box | 1 |
| Summary | Eaton 5P650IRG2. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 520 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2 min, Typical backup time at half load: 9 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 1U. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
| Unit Box Height | 0.175 |
| Unit Box Length | 0.59 |
| Unit Box Width | 0.445 |
| Model | 5P Gen2 |
Features
| ECO mode | No |
| Efficiency | 98 % |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 160 V |
| Noise level | 40 dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Output power | 520 W |
| Output power capacity | 0.65 kVA |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
Ports & interfaces
| AC outlet types | C13 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
Battery
| Automatic battery test | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Hot-swap battery | Yes |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 9 min |
Design
| Display type | LCD |
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 1U |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
Certificates
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
Packaging content
| Management card included | No |
| Rack mount kit | Yes |
Safety regulation & standards
| Safety | IEC/EN 62040-1, UL 1778 |
Weight & dimensions
| Depth | 361 mm |
| Height | 43.2 mm |
| Weight | 8600 g |
| Width | 438 mm |
Packaging data
| Bundled software | Intelligent Power Software suite |
Other features
| Input connection type | IEC C14 |
| Mac compatibility | No |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
