Highlights
| Product Highlights |
|
Features
| UPS Topology | Line-Interactive |
| Output Power Capacity | 0.65 kVA |
| Output Power | 520 W |
| Waveform | Pure sine |
| Input Operation Voltage (min) | 160 V |
| Input Operation Voltage (max) | 294 V |
| Input Frequency | 40/70 Hz |
| Output Operation Voltage (min) | 200 V |
| Output Operation Voltage (max) | 240 V |
| Output Frequency | 50/60 Hz |
| Number of Input Phases | 1 |
| Number of Output Phases | 1 |
| Efficiency | 98% |
| Noise Level | 40 dB |

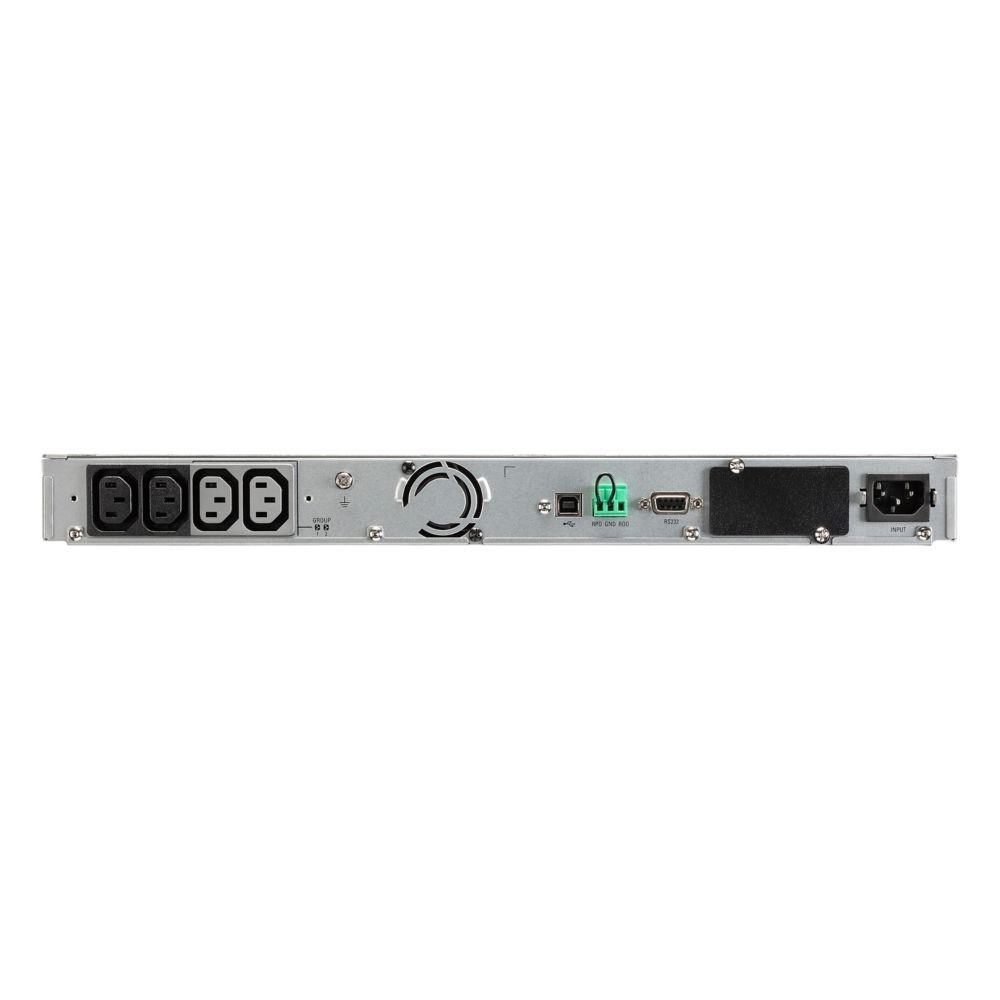

Ports & Interfaces
| AC Outlet Types | C13 coupler |
| Power Plug | C14 coupler |
| AC Outlets Quantity | 4 AC outlet(s) |
| USB Port | Yes |
| RS-232 Ports | 1 |
Battery
| Battery Technology | Sealed Lead Acid (VRLA) |
| Typical Backup Time At Half Load | 9 min |
| Hot-swap Battery | Yes |
Design
| Form Factor | Rackmount |
| Product Colour | Black |
| Display Type | LCD |
Operational Conditions
| Operating Temperature (T-T) | 0 - 35 °C |
Packaging Content
| Rack Mount Kit | Yes |
Weight & Dimensions
| Width | 438 mm |
| Depth | 361 mm |
| Height | 43.2 mm |
| Weight | 8.6 kg |
Warranty and Other
| Warranty Terms | 24 months |
| Product Condition | Original |
