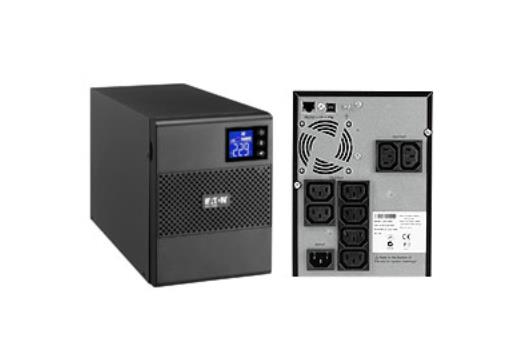

Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today’s most sensitive IT equipment.
General
| Unit Calculated Weight | 12.4 kg |
| Unit Calculated Volume | 0.0344 cubm |
| Units per Shipping Box | 1 |
| Summary | Eaton 5SC1000i. Output power capacity: 1 kVA, Output power: 700 W, Waveform: Sine. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 5 min, Typical backup time at half load: 13 min. Form factor: Tower, Product colour: Black, Display type: LCD. Certification: CE/GS/C-Tick |
| Unit Box Height | 0.305 |
| Unit Box Length | 0.47 |
| Unit Box Width | 0.24 |
Features
| Audible alarm(s) | Yes |
| Efficiency | 97 % |
| Input frequency | 50 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 184 V |
| Noise level | 40 dB |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 700 W |
| Output power capacity | 1 kVA |
| Power protection features | Overload |
| Waveform | Sine |
Ports & interfaces
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
Battery
| Typical backup time at full load | 5 min |
| Typical backup time at half load | 13 min |
Design
| Display type | LCD |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
Operational conditions
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 40 °C |
Certificates
| Certification | CE/GS/C-Tick |
Safety regulation & standards
| Safety | IEC 62040-1, CB Report (TUV) |
Weight & dimensions
| Depth | 340 mm |
| Height | 210 mm |
| Weight | 11100 g |
| Width | 150 mm |
Logistics data
| Harmonized System (HS) code | 85078000 |
Other features
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
