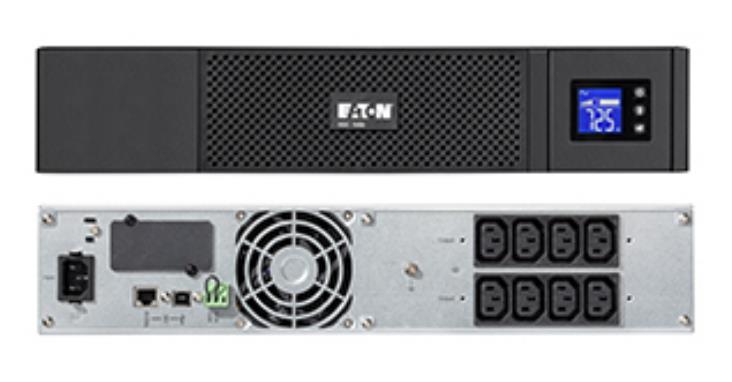

EATON 700 Watts 1000 VA Wave form type Pure sinewave LineInteractive Rack 2U 5SC1000IR
General
| Unit Calculated Weight | 19 kg |
| Unit Calculated Volume | 0.07297 cubm |
| Units per Shipping Box | 1 |
| Summary | Eaton 5SC1000IR. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: CE, CB report (TÜV). Safety: IEC / EN 62040-1, UL 1778 |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.575 |
Features
| Input frequency | 45/55 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 184 V |
| Noise level | 45 dB |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 45-55 Hz (50Hz system), 55-65Hz (60Hz system) Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 700 W |
| Output power capacity | 1 kVA |
| Power protection features | Overdischarge |
| UPS topology | Line-Interactive |
Ports & interfaces
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
Design
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 2U |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | CE, CB report (TÜV) |
Safety regulation & standards
| Safety | IEC / EN 62040-1, UL 1778 |
Weight & dimensions
| Depth | 405 mm |
| Height | 86.2 mm |
| Weight | 14960 g |
| Width | 440 mm |
Logistics data
| Harmonized System (HS) code | 85078000 |
Other features
| Output voltage | 230 V |
