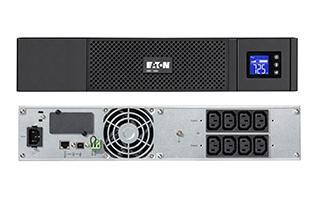

EATON 1050 Watts 1500 VA Wave form type Pure sinewave LineInteractive Rack 2U 5SC1500IR
General
| Unit Calculated Weight | 22.3 kg |
| Unit Calculated Volume | 0.07387 cubm |
| Units per Shipping Box | 1 |
| Summary | Eaton 5SC 1500I RACK2U. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1050 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV). Width: 440 mm, Depth: 405 mm, Height: 86.2 mm |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.57 |
| Unit Box Width | 0.54 |
Features
| Input frequency | 45/65 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 184 V |
| Noise level | 45 dB |
| Output frequency regulation | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 1050 W |
| Output power capacity | 1.5 kVA |
| Power protection features | Overdischarge |
| UPS topology | Line-Interactive |
Ports & interfaces
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| USB port | Yes |
Design
| Display type | LED |
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 2U |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV) |
Weight & dimensions
| Depth | 405 mm |
| Height | 86.2 mm |
| Weight | 17780 g |
| Width | 440 mm |
Logistics data
| Harmonized System (HS) code | 85078000 |
