UHD Signage Display with LG webOS Platform and Advanced Security

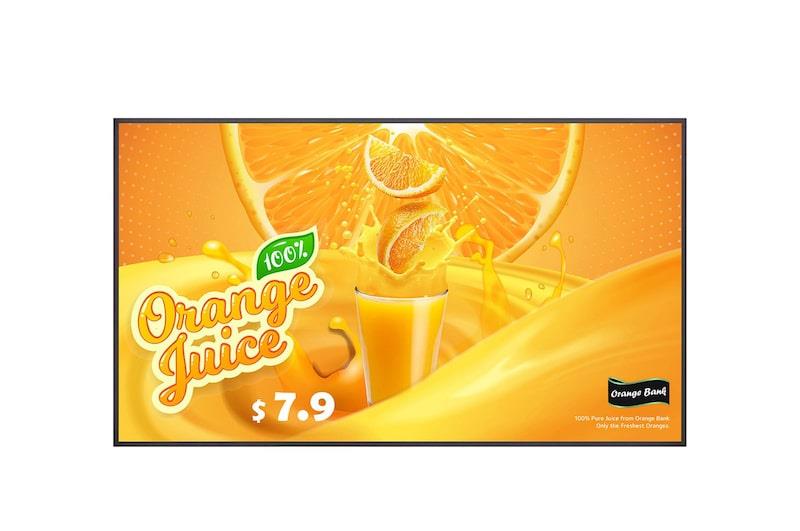

Superb Picture Quality with Ultra HD Resolution
With the resolution of LG UHD Signage, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

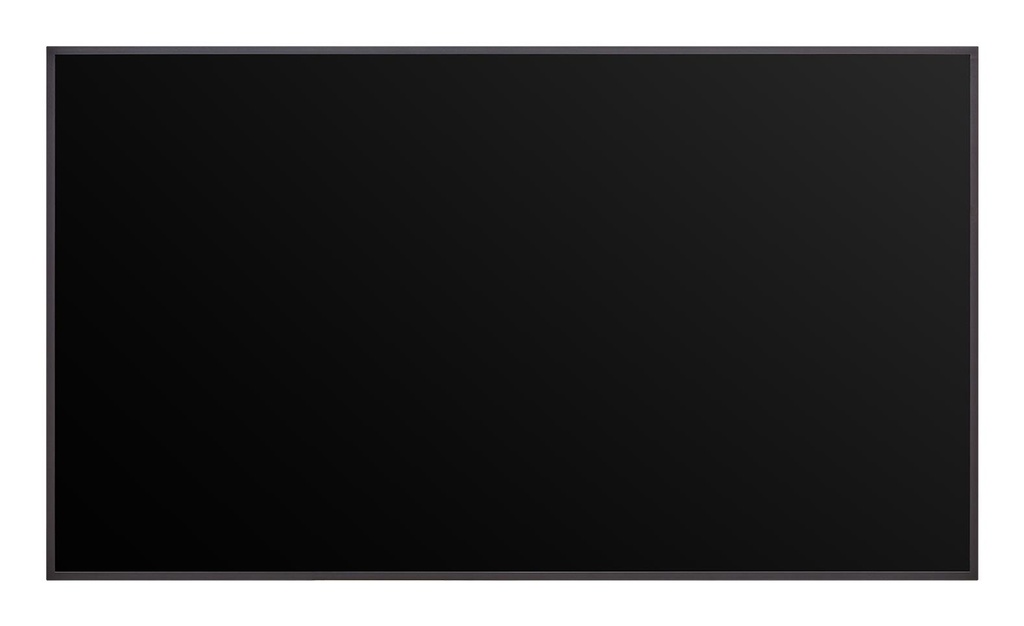

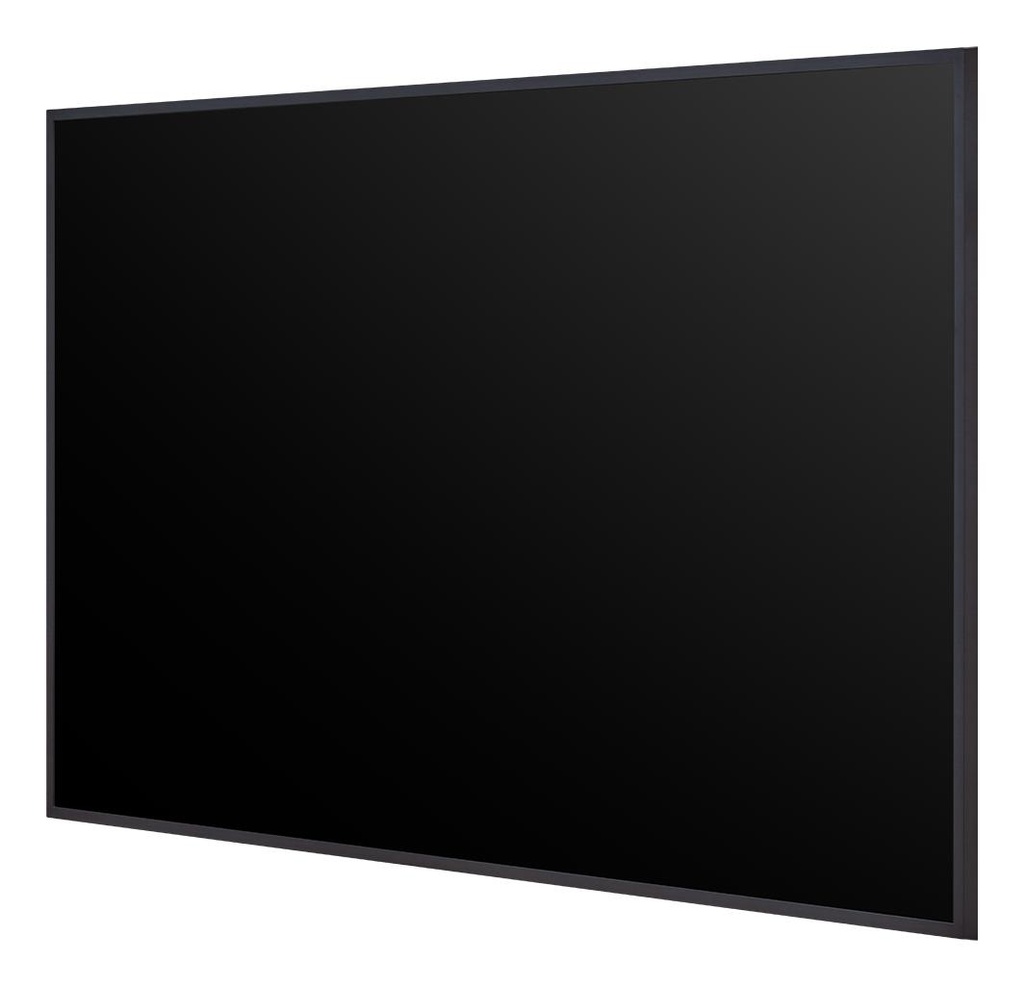

Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
Design for Space Utilization

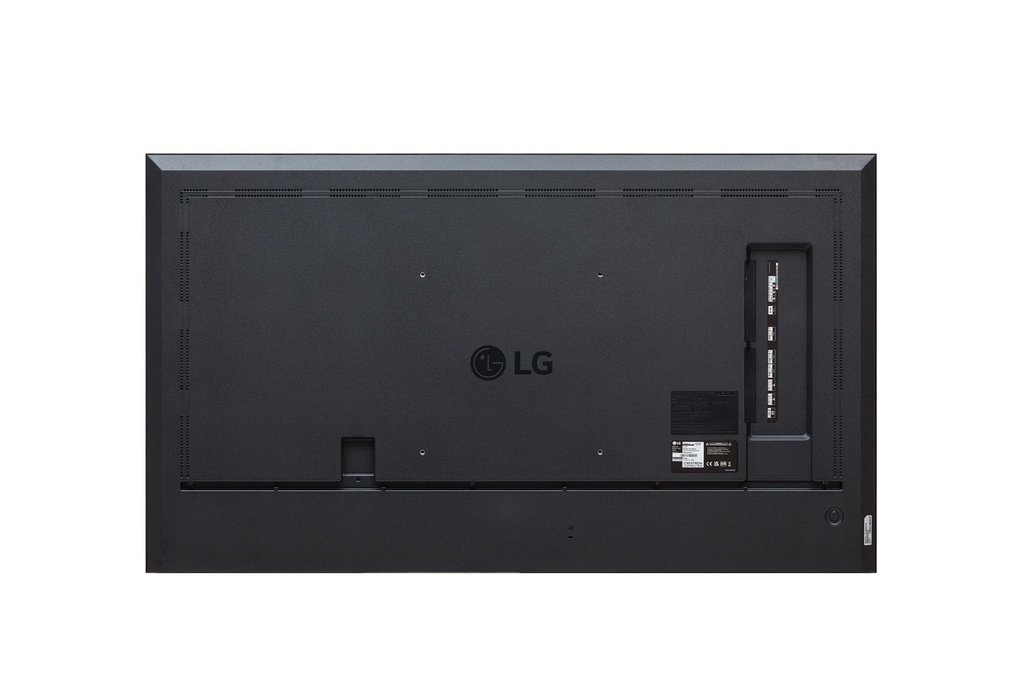

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.
Durability that Provides Reliability for LG UHD Signage Optimized for business environments
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction, ensuring the durability of LG UHD signage.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.
SuperSign Solutions
LG SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 11.4 mm (Even Bezel)
- webOS Smart Platform
- LG Shield
General
| Unit Calculated Weight | 27 kg |
| Unit Calculated Volume | 0.2582 cubm |
| Units per Pallet | 0 |
| Summary | LG 65UH5Q-E. Display diagonal: 165.1 cm (65"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black |
| Unit Box Height | 0.95 |
| Unit Box Length | 1.58 |
| Unit Box Width | 0.172 |
| Model name | 65UH5Q-E |
| Model | 65UH5Q-E |
Display
| Contrast ratio (dynamic) | 1000000:1 |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 500 cd/m² |
| Display diagonal | 65 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Panel life | 50000 h |
| Response time | 8 ms |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |

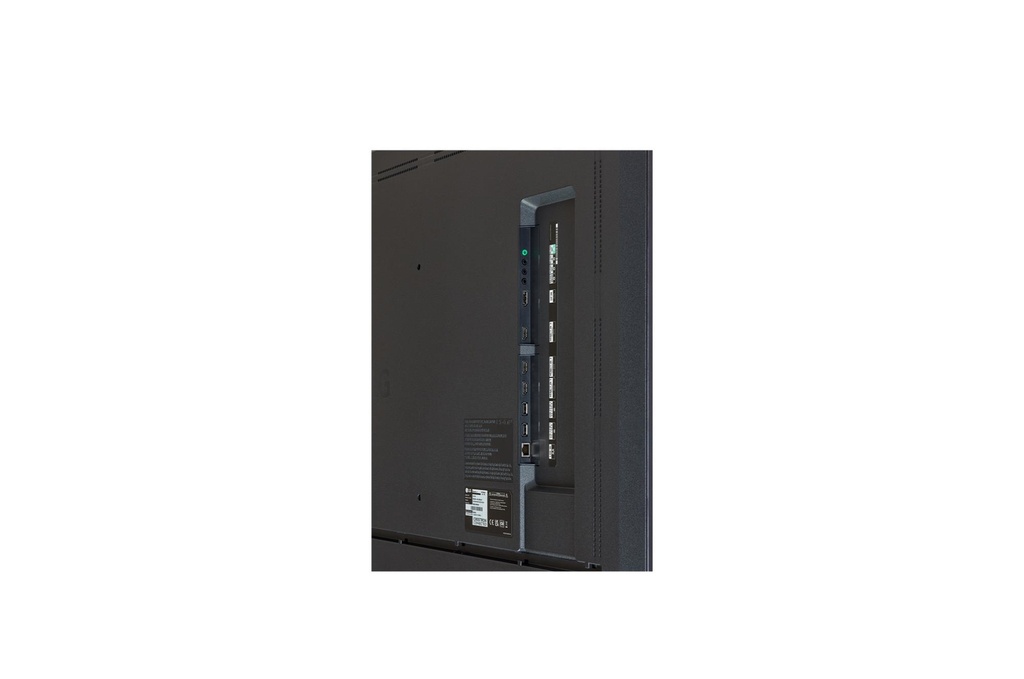

Ports & interfaces
| DisplayPorts quantity | 1 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 3 |
| HDMI version | 2.2/1.4 |
| Remote (IR) input | 1 |
| RS-232C | Yes |
| USB connector type | USB Type-A |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
Audio
| Bluetooth audio | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Design
| Bezel width (bottom) | 11.4 mm |
| Bezel width (side) | 11.4 mm |
| Bezel width (top) | 11.4 mm |
| Panel mounting interface | 300 x 300 mm |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
Performance
| International Protection (IP) code | IP5X |
| Operating hours (hours/days) | 24/7 |
| Purpose | Universal |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Energy consumption (SDR) per 1000 hours | 130 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | G |
| Heat generation (max) | 699 BTU/h |
| Heat generation (typical) | 444 BTU/h |
| Power consumption (economy mode) | 91 W |
| Power consumption (off) | 0.5184 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 130 W |
Computer system
| Built-in processor | Yes |
| Operating system installed | WebOS |
Weight & dimensions
| Display depth | 297 mm |
| Display height | 835 mm |
| Display weight | 21000 g |
| Display width | 1459 mm |
Packaging data
| Package depth | 172 mm |
| Package height | 950 mm |
| Package weight | 27000 g |
| Package width | 1580 mm |
Packaging content
| Cables included | AC |
| Remote control included | Yes |
| Tilt angle | 15 ° |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
Network
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Sensors
| Gyroscope | Yes |
| Temperature sensor | Yes |
Other features
| Power supply type | Internal |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2406051/fiches?language=EN |
| Energy efficiency class | G |
| EPREL Registration Number | 2406051 |
| EPREL Version Number | 2 |
