The Lindy 65W USB Type A & C GaN Charger can charge two devices simultaneously. 65W Power Delivery and PPS are supported by the USB Type C port while the USB Type A port provides fast charging with up to 45W. When both ports are used in parallel a maximum power of 20W will be provided.

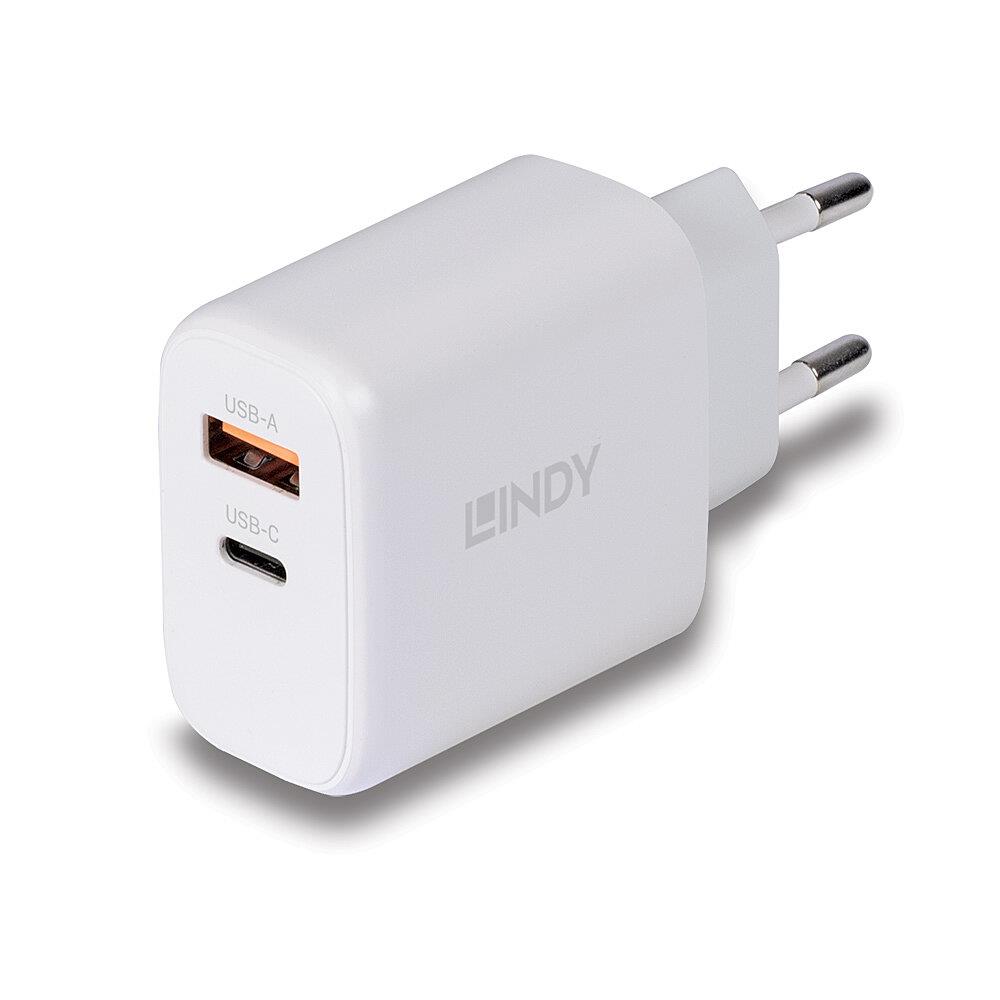

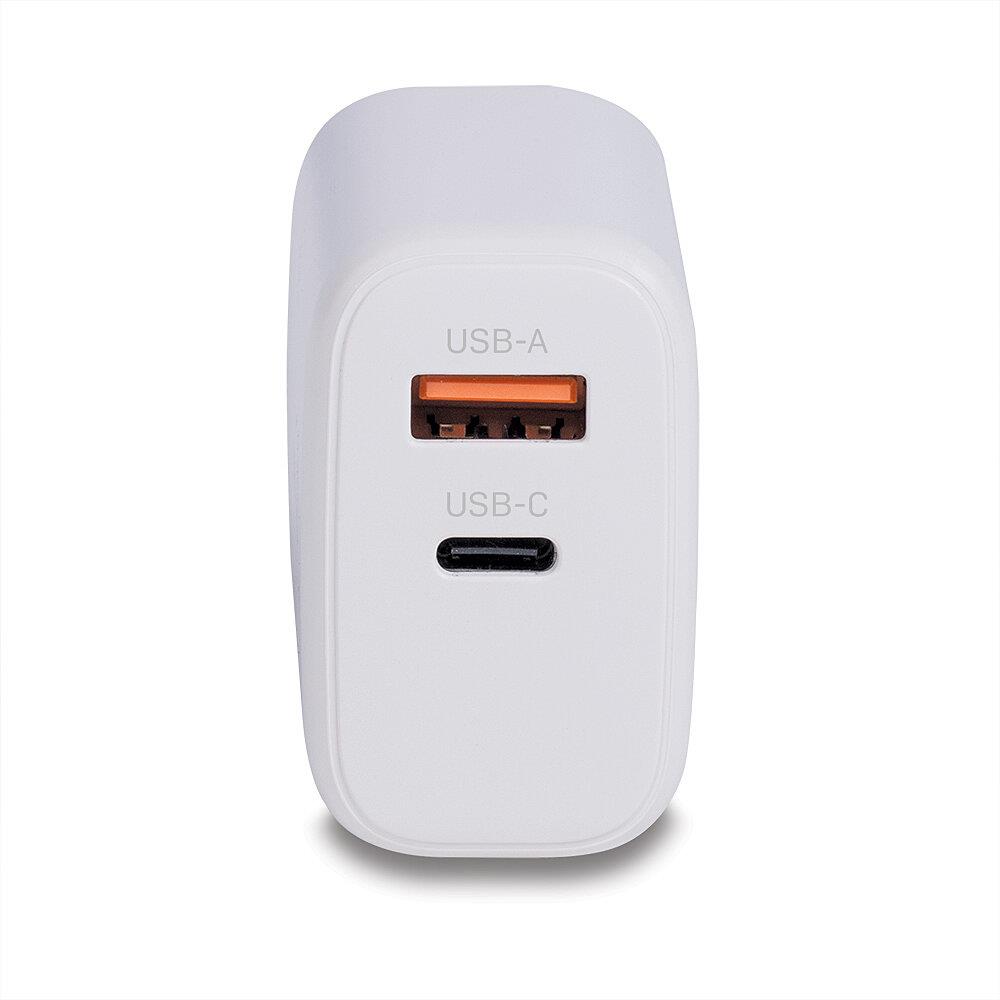

Featuring both a USB Type C female and a USB Type A female port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 65W and PPS (Progammable Power Supply), connected devices can be provided with faster and smarter charging than what is possible from a standard Type C charger supplied with many devices; it can modify voltage and current in real-time by feeding maximum power based on a device's charging status.
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.
- Charges and powers two devices simultaneously via a USB Type C and a USB Type A port
- 65W GaN technology via the USB Type C port provides fast charging for smartphones, tablets, laptops and other mobile devices
- Compact design for maximum mobility
- Built-in safety features such as overvoltage and overcurrent protection
General
| Unit Calculated Weight | 0.12 kg |
| Unit Calculated Volume | 0.000432 cubm |
| Units per Shipping Box | 1 |
| Summary | Lindy 73428. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V. USB 2.0 ports quantity: 1, USB Type-C ports quantity: 1, Fast charging, Power protection features: Over current, Over voltage, Overheating, Short circuit. Product colour: White |
| Unit Box Height | 0.04 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.08 |
Performance
| Charger compatibility | Universal |
| Charger type | Indoor |
| Fast charging | Yes |
| Fast charging technology | Power Delivery 3.0 |
| Number of simultaneously connected devices (max) | 2 |
| Power protection features | Over current/Over voltage/Overheating/Short circuit |
| Power source type | AC |
| Programmable power supply (PPS) | Yes |
| USB 2.0 ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 65 W |
| USB Type-C ports quantity | 1 |
Design
| Connector material | Copper |
| Gallium nitride (GaN) transistors | Yes |
| Housing material | Polyvinyl chloride (PVC),Polycarbonate (PC) |
| Product colour | White |
Power
| Average active efficiency | 81.38% |
| Efficiency at low load (10%) | Yes |
| Input current | 1.5 A |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Maximum output voltage | 20 V |
| Maximum power | 65 W |
| Minimum output voltage | 5 V |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 3.25 A |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output voltage accuracy (±) | 5 % |
| Power consumption (no load) | 0.1 W |
Weight & dimensions
| Depth | 85.3 mm |
| Height | 41.6 mm |
| Weight | 40 g |
| Width | 26.8 mm |
Packaging data
| Package depth | 100 mm |
| Package height | 45 mm |
| Package type | Carton |
| Package weight | 60 g |
| Package width | 80 mm |
Operational conditions
| Operating relative humidity (H-H) | 20 - 90 % |
| Operating temperature (T-T) | 0 - 25 °C |
| Storage relative humidity (H-H) | 20 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
Packaging content
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Certificates
| Compliance certificates | CE/REACH/RoHS |
Sustainability
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
Logistics data
| Warranty period | 2 year(s) |
