Superb Picture Quality with Ultra HD Resolution
With the resolution that is 4 times higher than FHD, it makes the colors and details of the content more vivid and realistic.
Slim Design
The PK640S stands out with its slim design. Its compact form not only saves space but also allows for easy installation, making it an ideal choice for a variety of settings.
Convenient webOS Platform
LG webOS 25, upgraded in SoC and web engine, is available on PK640S series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.
Versatile Content Management with LG SuperSign CMS
LG SuperSign CMS is an integrated, intuitive solution for managing creative and well-organized digital signage content. It helps connect customers to a variety of services while improving the overall user experience.
Content and Group Management
The embedded Content and Group Management System lets you easily edit and play content, set playlists, and control signage with a remote control, mouse, or mobile phone—no separate PC or software required. This makes content management straightforward and user-friendly.
Display Power Management Support
Display Power Management (DPM) can be set to ‘On’ when a TV signal is detected, allowing for more efficient power management.
Real-Time Monitoring with LG ConnectedCare
LG ConnectedCare, an optional cloud service solution, offers easy and fast maintenance by remotely monitoring the status of displays in client workplaces. It supports fault diagnosis and remote control services, helping to ensure stable operation for clients’ businesses.
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 300 nits
- Backlight Life : 30,000 Hrs, 16 Hrs / 7 Days
- LG Solution Compatibility
General
| Unit Calculated Weight | 46.5 kg |
| Unit Calculated Volume | 0.5775 cubm |
| Units per Pallet | 0 |

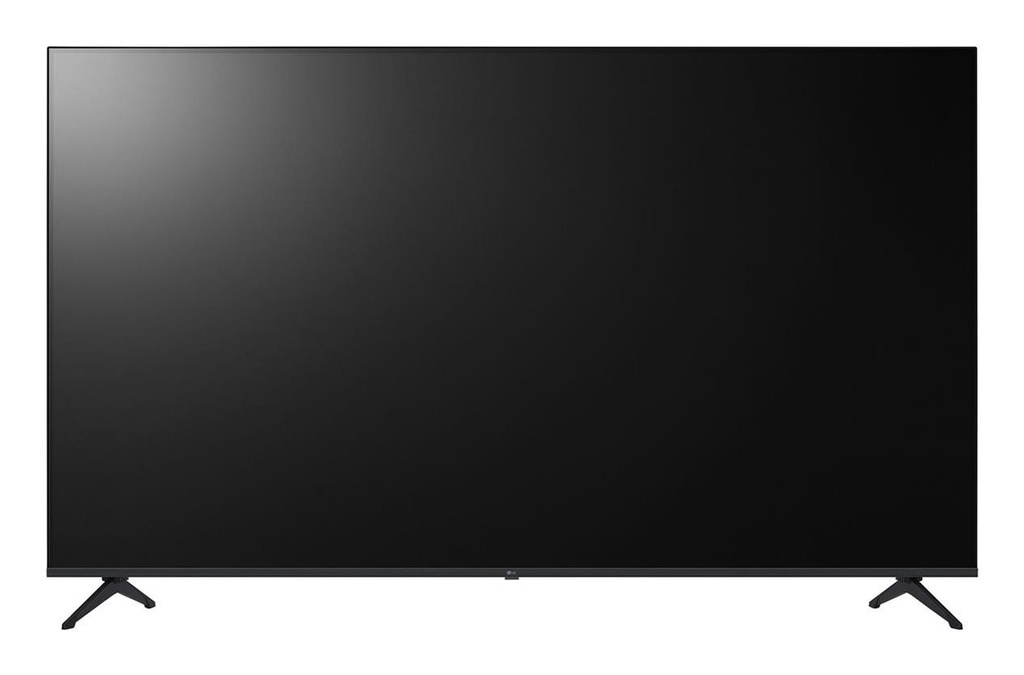

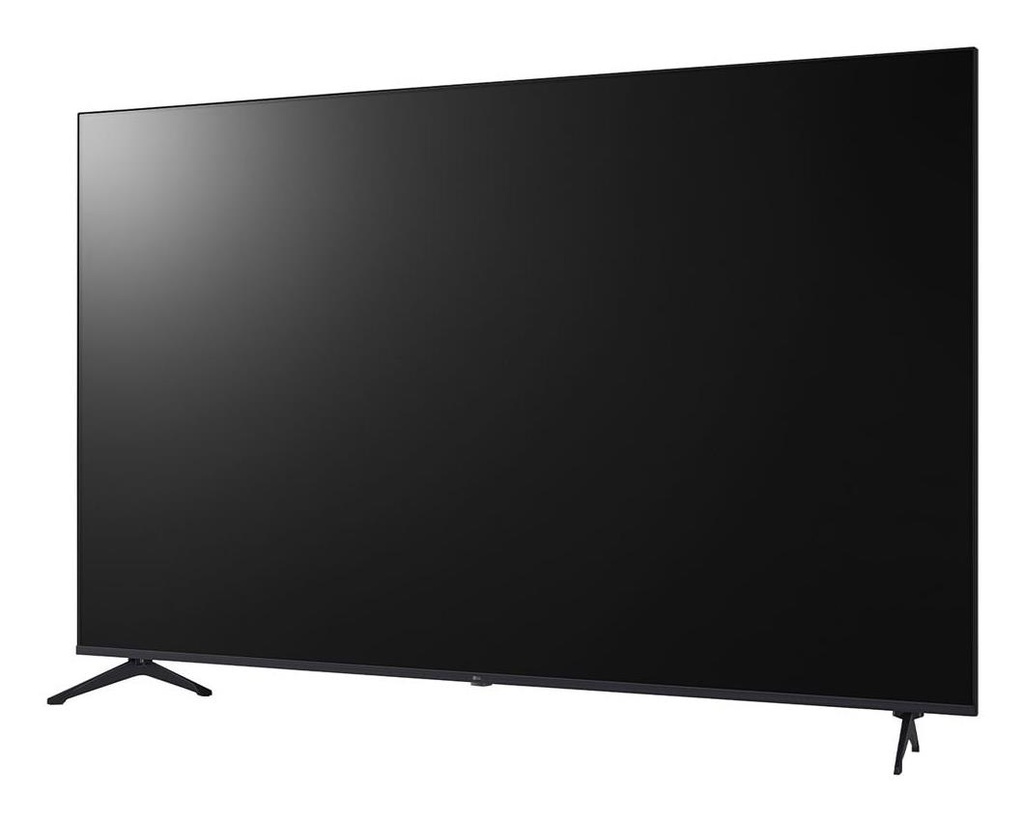

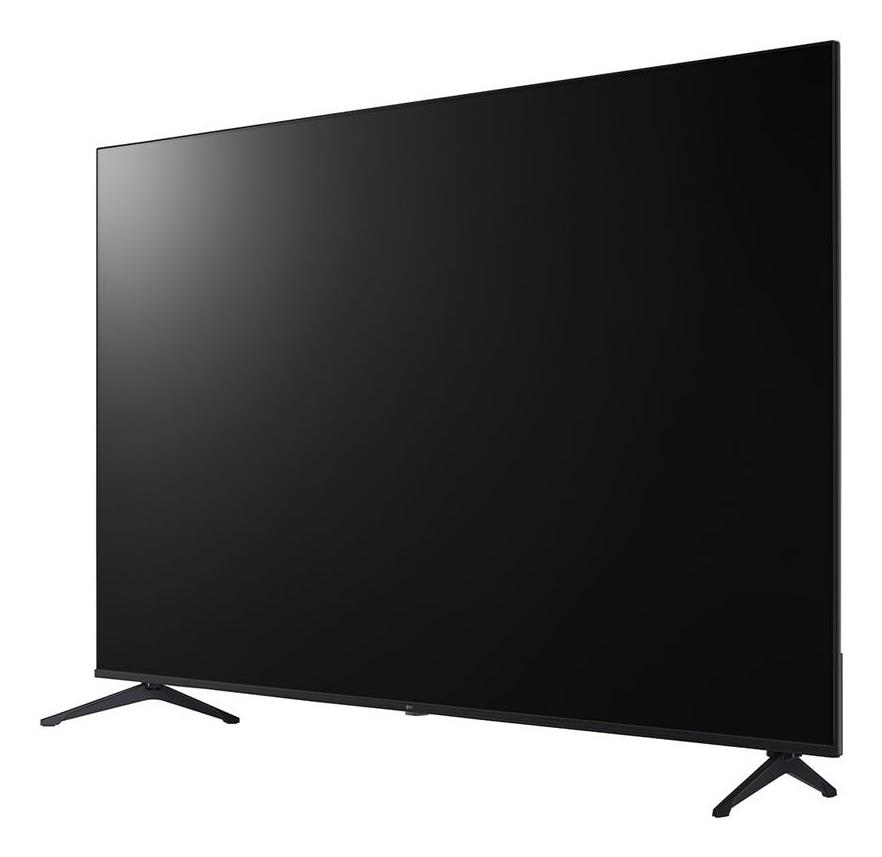

| Summary | LG 86PK640S. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 300 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 16/7. Operating system installed: WebOS. Product colour: Black |
| Unit Box Height | 1.25 |
| Unit Box Length | 2.1 |
| Unit Box Width | 0.22 |
| Model name | 86PK640S |
Display
| Contrast ratio (dynamic) | 1000000:1 |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 300 cd/m² |
| Display diagonal | 86 " |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 Pro (HDR10 Pro)/Hybrid Log-Gamma (HLG) |
| LED backlighting type | Direct-LED |
| Native refresh rate | 60 Hz |
| Response time | 8 ms |
| Touchscreen | No |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| Number of antenna connectors | 1 |
| RS-232C | Yes |
| USB port | Yes |
Audio
| Audio output channels | 2.0 channels |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
Performance
| Analog signal format system | ATSC/NTSC |
| Global-IPTV support | Yes |
| Operating hours (hours/days) | 16/7 |
| Purpose | Universal |
| Web browser | Yes |
Power
| Input voltage | 100 - 240 V |
| Power consumption (max) | 157 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 143 W |
Computer system
| Operating system installed | WebOS |
| Operating system version | 25 |
Packaging content
| Cables included | AC/RS-232 |
| Remote control included | Yes |
| Remote control type | L-con AKB75095376 |
| Stand included | Yes |
Network
| Ethernet LAN | Yes |
Technical details
| Compliance certificates | Federal Communications Commission (FCC)/UL |
