The ASUS Prime AP304 ARGB is an ATX case with a curved glass panel and four pre-installed ARGB fans, supporting graphics cards up to 420mm in length and featuring a patented airflow design that includes an innovative slot vent in the lower section of the chassis.

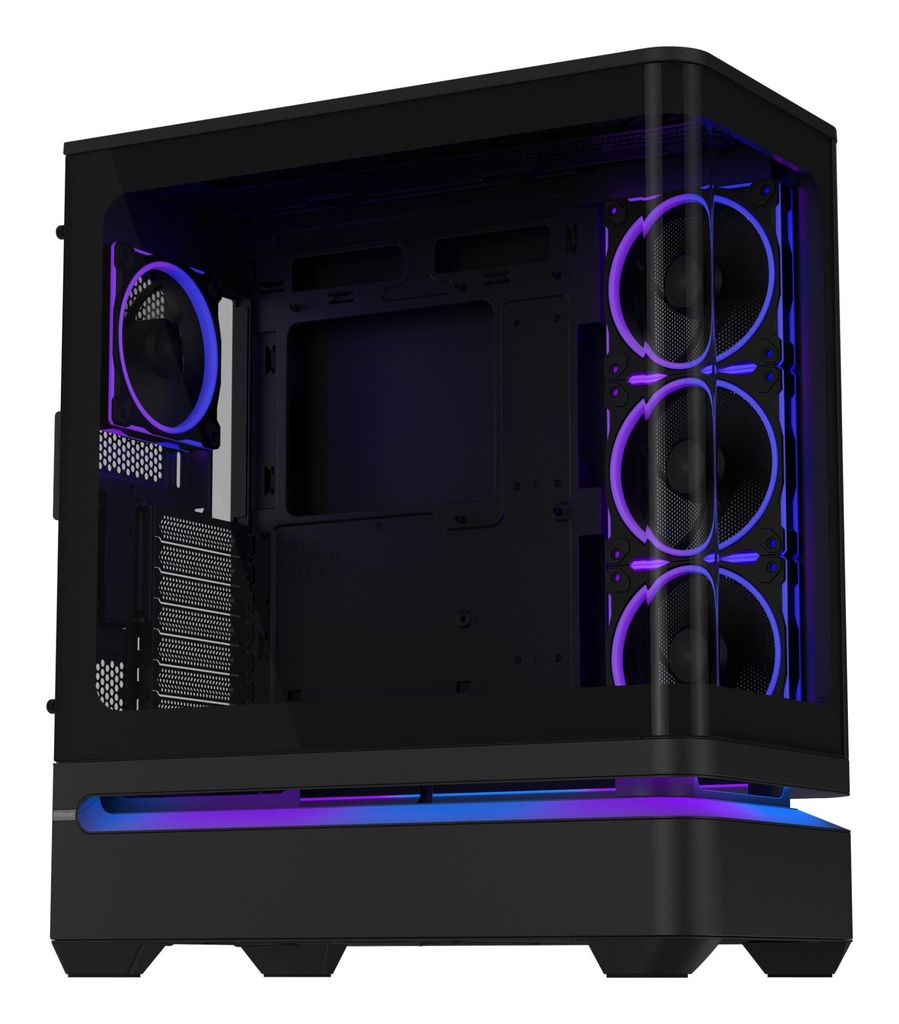

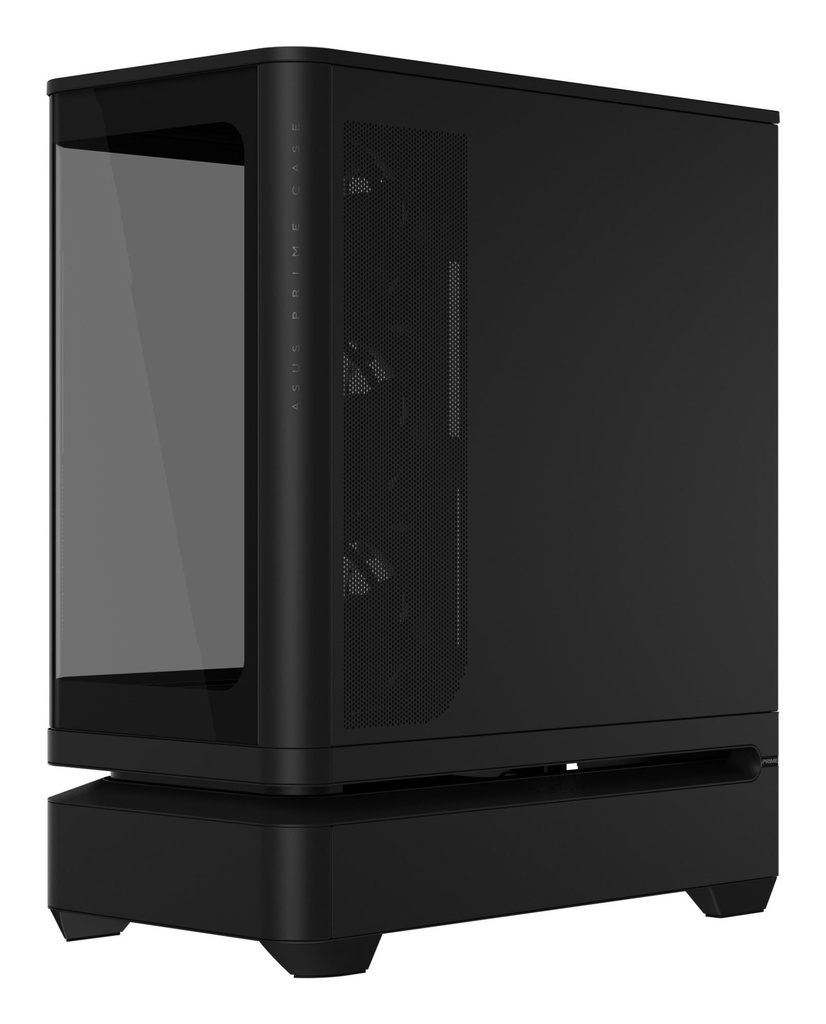

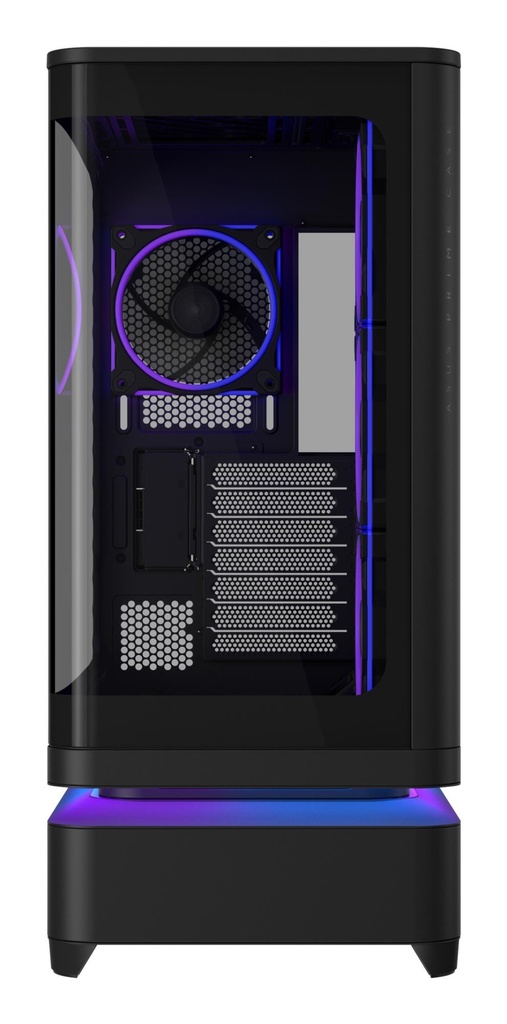

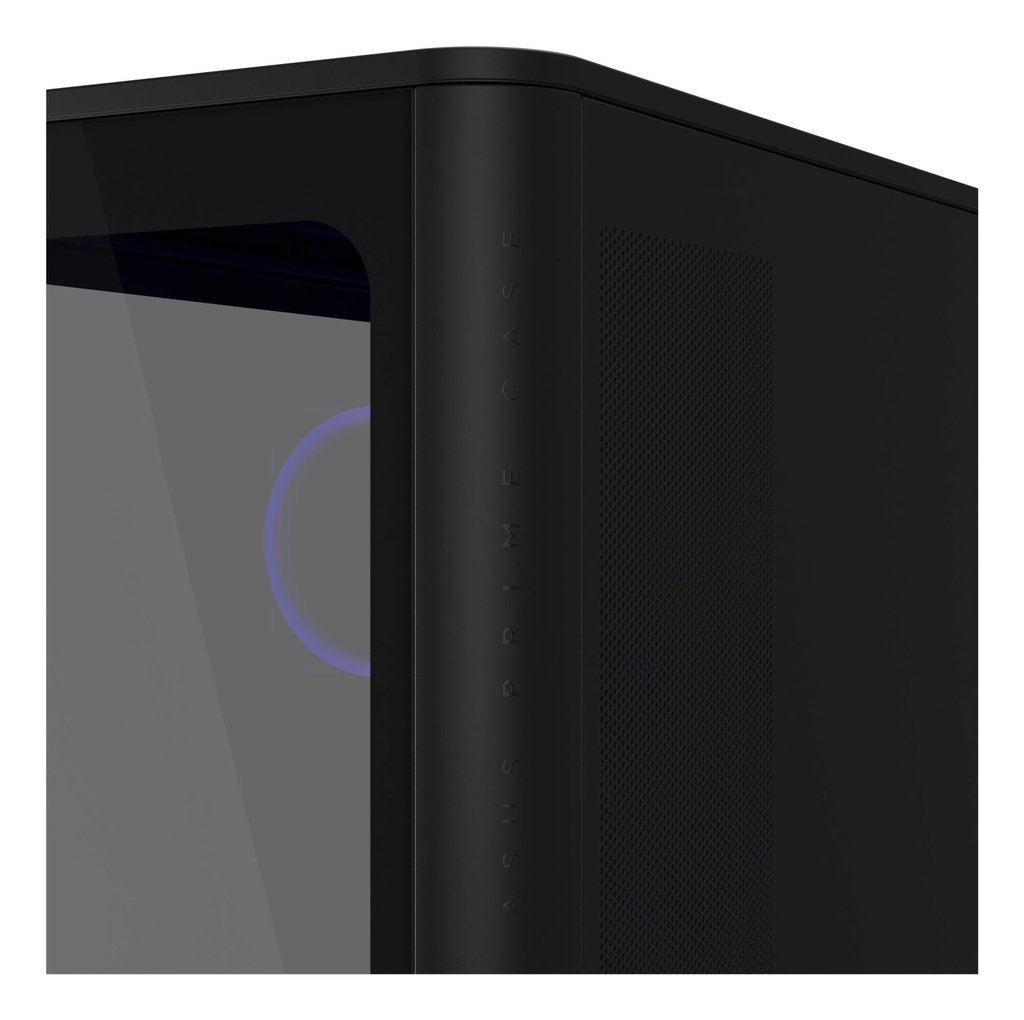

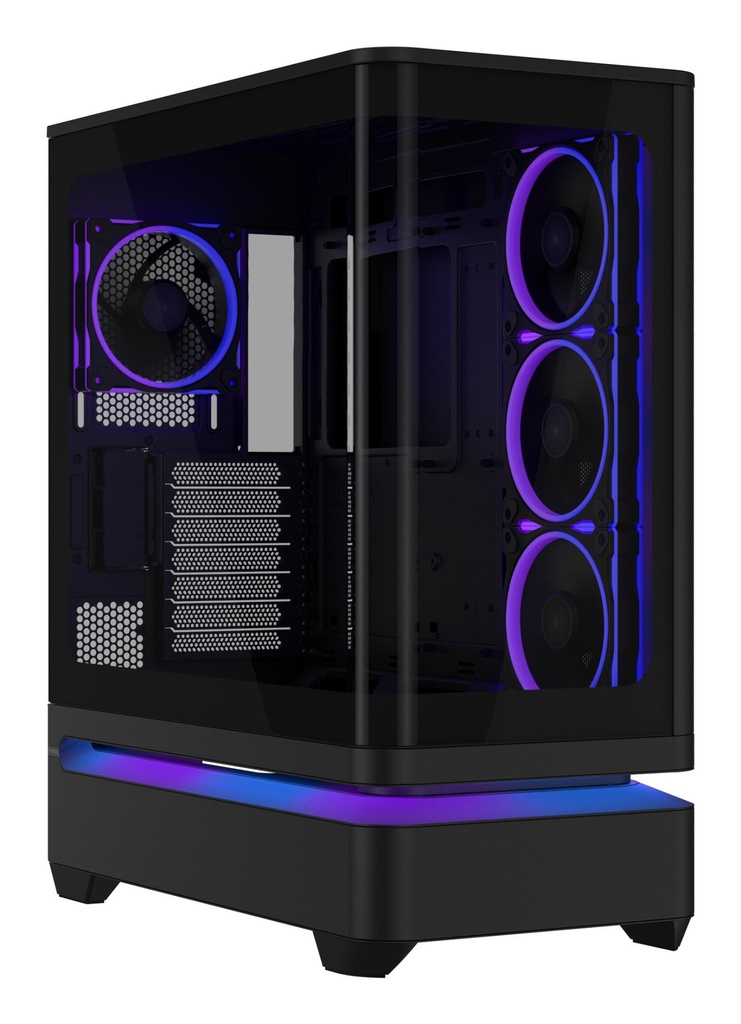

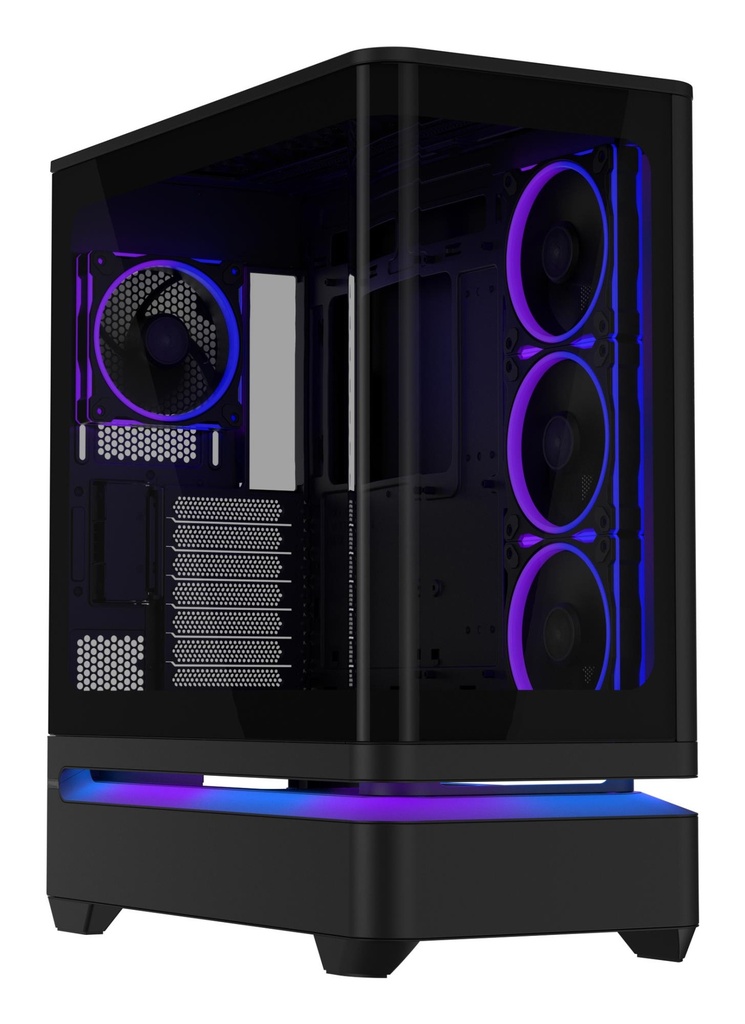

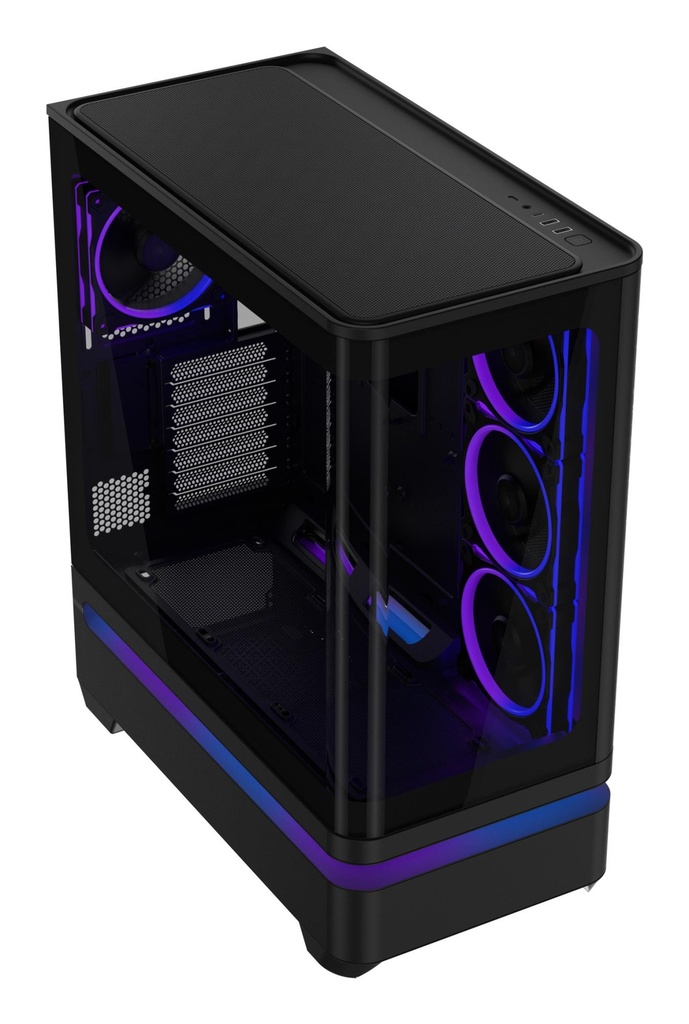

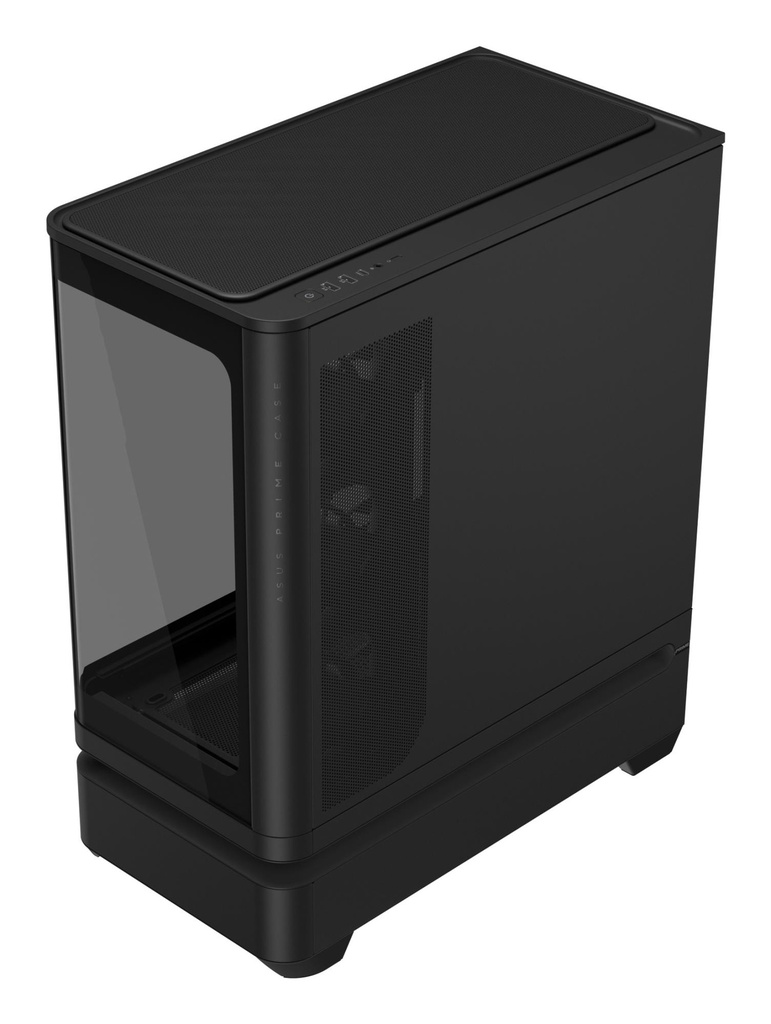

ASUS Prime AP304 ARGB
The ASUS Prime AP304 ARGB is a versatile panoramic ATX chassis designed to showcase system components with style. A patented slot vent with a three-sided ventilation structure provides optimal cooling for the graphics card, while an integrated ARGB light band works seamlessly with ASUS Aura Sync. Plus, a patented graphics card slot clamp and reinforced graphics card bracket provide easy and secure installation in a variety of builds.
- Curved tempered-glass panel extends seamlessly from the front to the side, offering a panoramic view of the components from almost any angle
- Patented graphics card slot clamp provides effortless tool-free installation
- Patented slot vent provides optimal graphics card cooling
- Integrated ARGB light band works seamlessly with Aura Sync
- Four pre-installed ARGB fans with vibrant lighting effects help ensure balanced cooling performance
- Easy-detach rail makes panel removal and reattachment safe and simple
General
| Summary | ASUS PRIME AP304 TG ARGB BLACK. Type: PC, Product colour: Black, Supported motherboard form factors: Mini-ITX, ATX, micro ATX. Side fans installed: 3x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 3.5,2.5". Width: 240 mm, Depth: 535 mm, Height: 450 mm. Package width: 530 mm, Package depth: 325 mm, Package height: 625 mm |
| Unit Box Height | 0.63 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.33 |
| Name | CASE MIDITOWER ATX W/O PSU/PRIME AP304 TG ARGB BLACK ASUS |
| Model name | PRIME AP304 TG ARGB BLACK |
Design
| Maximum PSU length | 200 mm |
| Maximum graphics card length | 420 mm |
| Maximum CPU cooler height | 175 mm |
| On/off button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Illumination colour | Multi |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX/micro ATX/Mini-ITX |
| Product colour | Black |
| Type | PC |
Display
| Built-in display | No |
Ports & interfaces
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling
| Top radiator sizes supported | 120/240/360 mm |
| Top fans diameters supported | 120/140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Side fans diameters supported | 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans installed | 3x 120 mm |
Storage
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Weight | 11500 g |
| Height | 450 mm |
| Depth | 535 mm |
| Width | 240 mm |
Packaging data
| Package weight | 13000 g |
| Package height | 625 mm |
| Package depth | 325 mm |
| Package width | 530 mm |
ELKO Verified Logistics Data
| Unit Height | 63 cm |
| Unit Depth | 53 cm |
| Unit Width | 33 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Weight | 13.7 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 33 cm |
| Shipping Box Depth | 53 cm |
| Shipping Box Height | 63 cm |
| Shipping Box Weight | 13.66 kg |
| Unit Calculated Volume | 0.1102 cubm |
