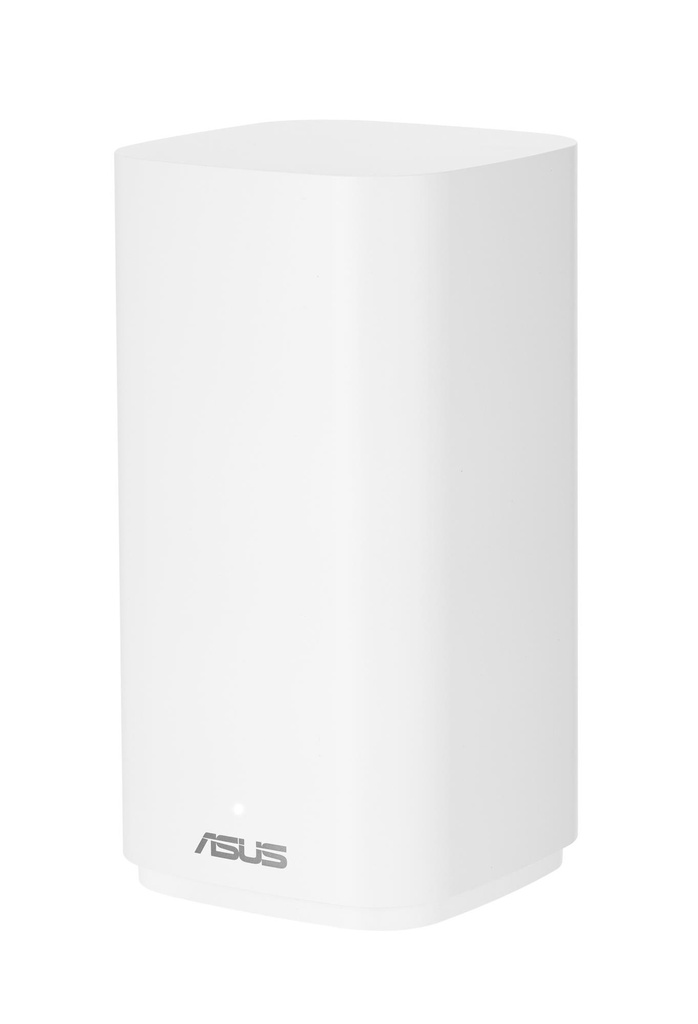

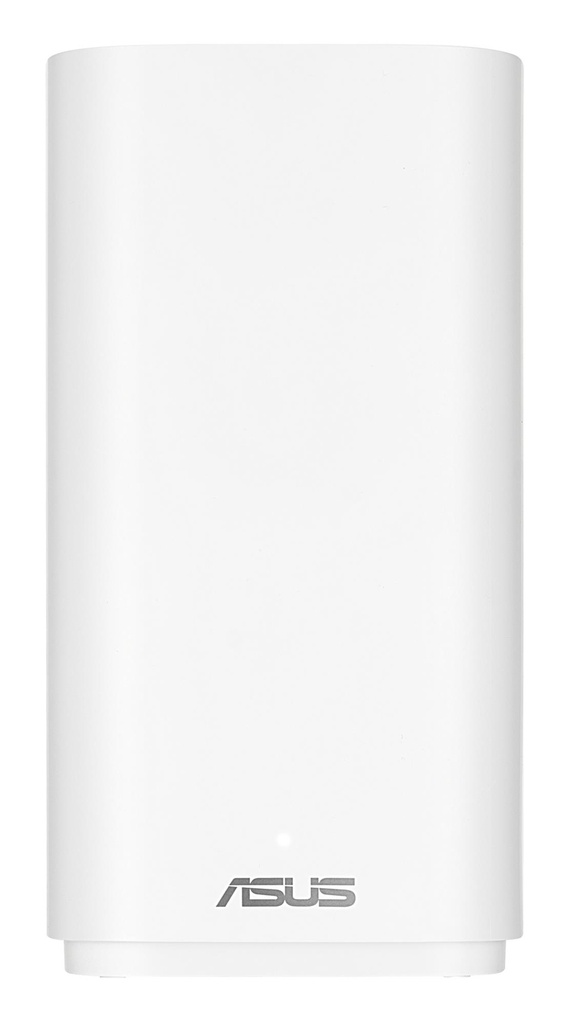

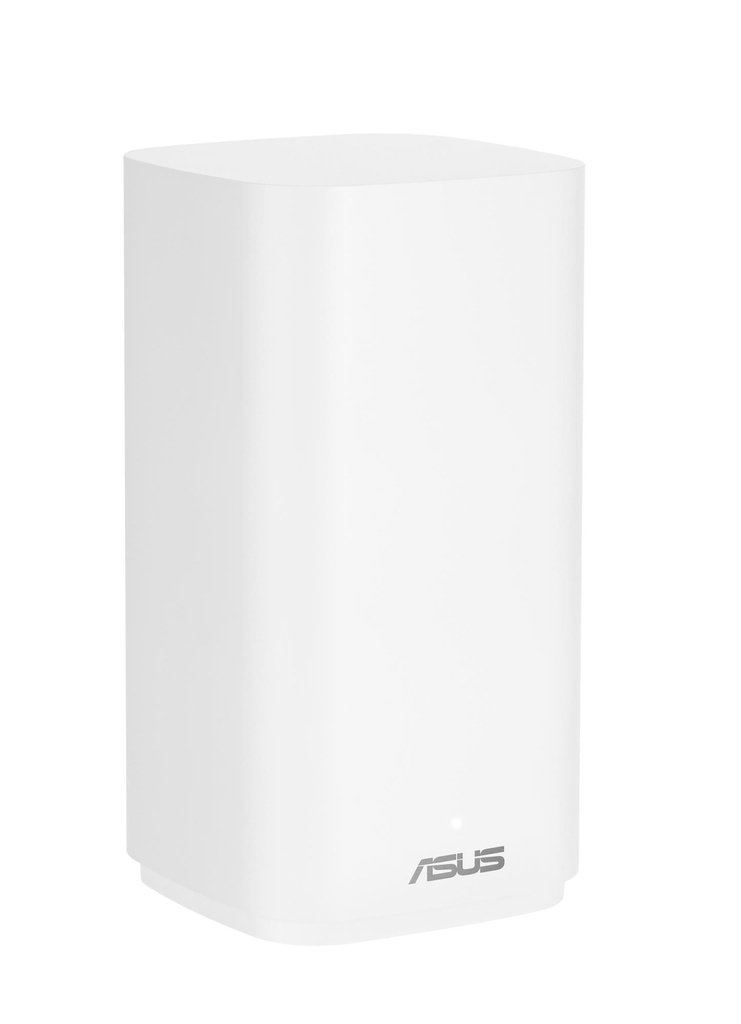

ASUS ZenWiFi BD4 Outdoor
Worry-Free WiFi, Indoors and Out
Powered by WiFi 7 and next-gen AiMesh technology, the ASUS ZenWiFi BD4 Outdoor router delivers blazing-fast speeds up to 3600 Mbps, helping ensure seamless and reliable WiFi from your backyard to every corner of your home. IP65 water-resistance and flexible mounting options make it ideal for outdoor installation in a variety of settings. Dual 2.5G PoE ports further streamline setup by eliminating the need for an electrical outlet. In addition, a suite of advanced network security features and Smart Home Master SSIDs deliver premium protection and effortless control for your connected devices.
- Dual-band WiFi 7 speeds up to 3600 Mbps with MLO and 4K-QAM
- WiFi 7 powering AiMesh technology boosts coverage up to 2530 ft², with easy extendibility and seamless connectivity for compatible ASUS routers, indoors and outdoors
- Built for durability with ESD and surge protection, an IP65 certified water-resistant and dustproof enclosure, and a wide operating range from -30°C to 60°C, making it ideal for outdoor environments

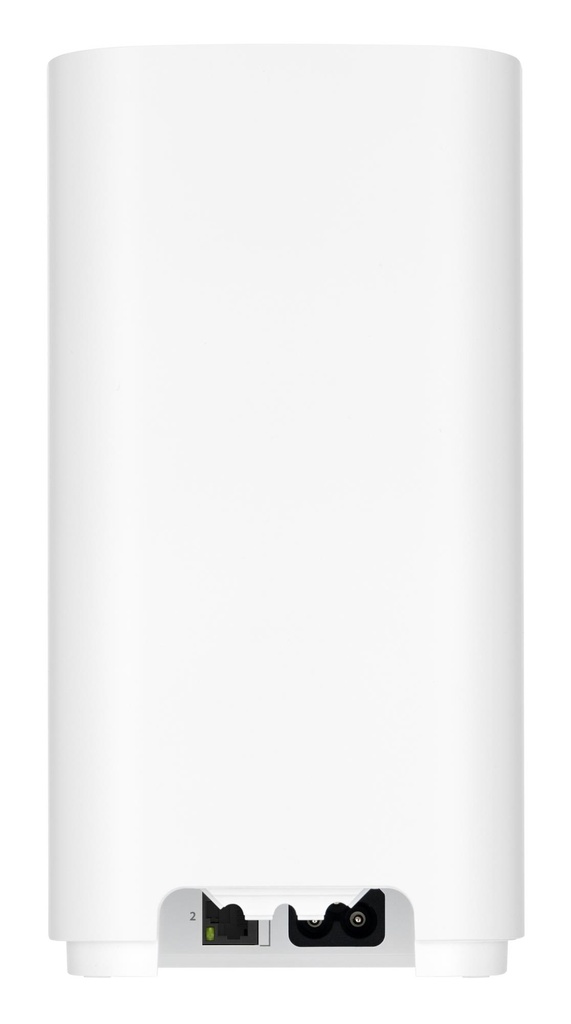

- Supports both Power over Ethernet and AC power for streamlined installation options, with two 2.5G PoE-in ports featuring auto WAN detection

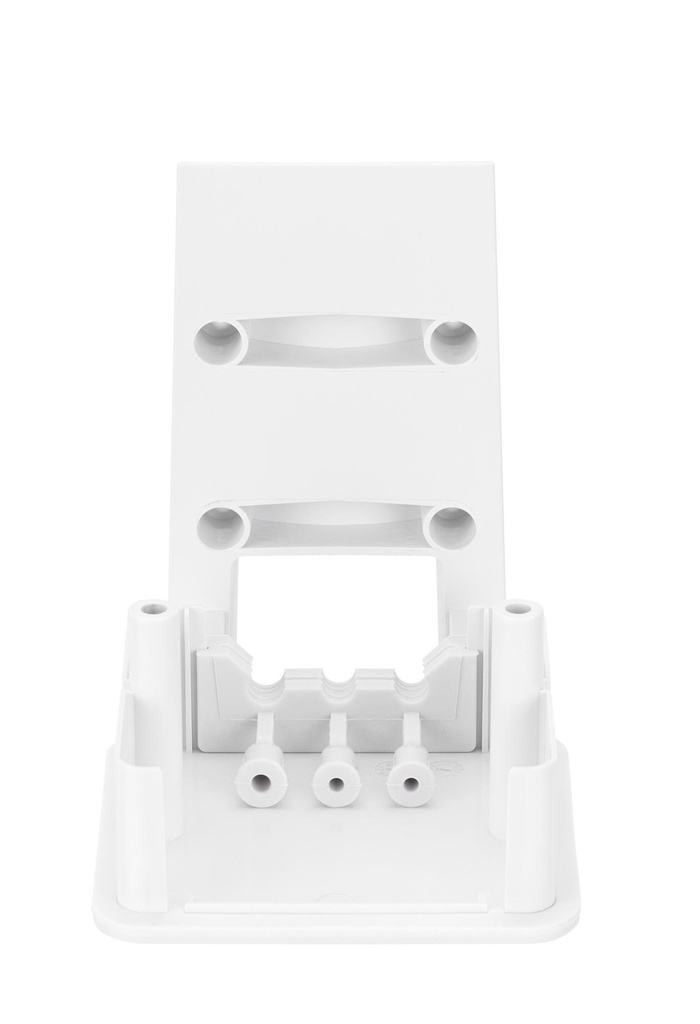

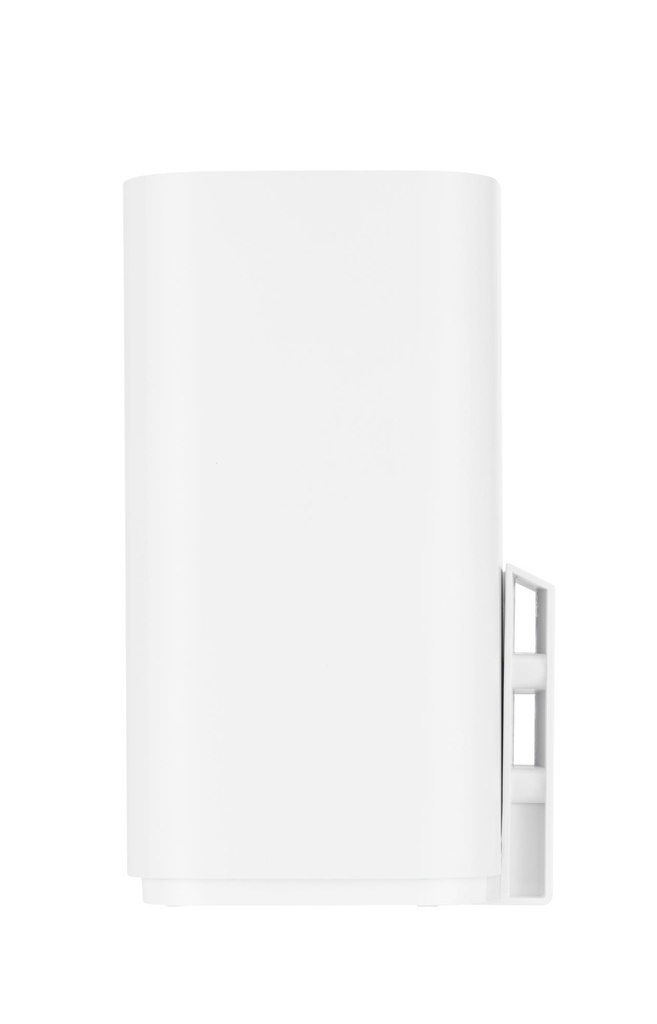

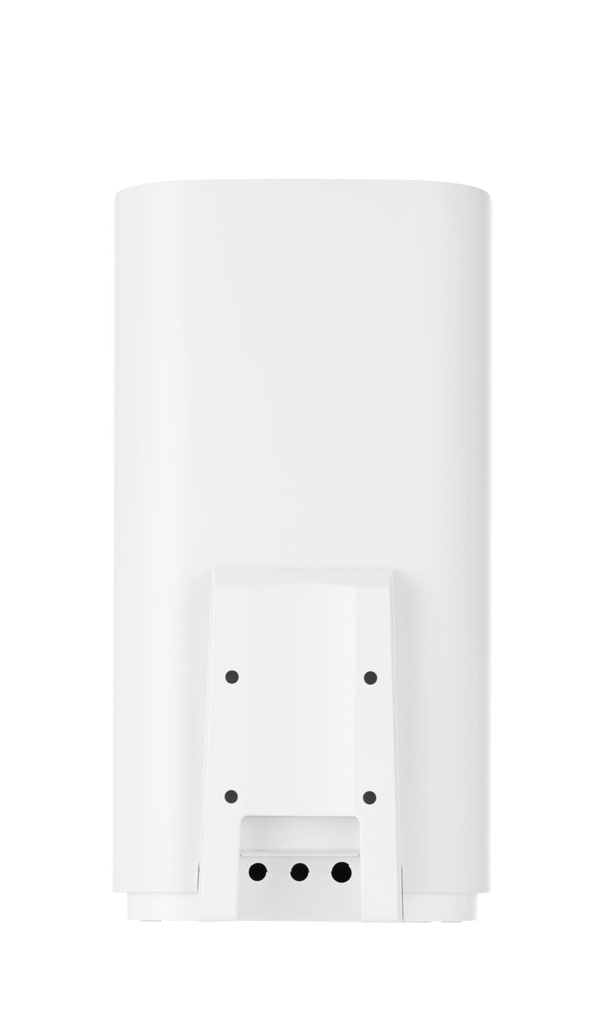

- Versatile mounting options provide easy deployment in various outdoor scenarios, whether wall-mounted, pole-mounted, or placed on a flat surface
- 24/7 end-to-end protection with commercial-grade AiProtection Pro and advanced VPNs
- Establish up to three SSIDs for IoT devices and parental controls with the Smart Home Master Network
General
| Summary | ASUS ZenWiFi BD4 BE3600 Outdoor 1 Pack. Product colour: White, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 3600 Mbit/s. Processor frequency: 1.5 GHz, Internal memory: 512 MB, Flash memory: 128 MB. AC input voltage: 110 - 240 V, AC input frequency: 50 - 60 Hz, AC adapter output voltage: 12 V. Width: 106 mm, Depth: 106 mm, Height: 200 mm |
| CnCode | 85176200 |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.245 |
| Unit Box Width | 0.135 |
| Model name | ZenWiFi BD4 BE3600 Outdoor 1 Pack |
Design
| Antenna type | Internal |
| Antennas quantity | 2 |
| LED indicators | Power |
| Maximum coverage | 235 m² |
| Product colour | White |
| Product type | Mesh router |
| Reset button | Yes |
Wireless LAN features
| Dynamic DNS (DDNS) | Yes |
| IGMP snooping | Yes |
| Security algorithms | WPA2-Enterprise/WPA2-Personal/WPA3-Personal/WPA-Enterprise/WPA-Personal/WPS |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| VPN support | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (max) | 3600 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
Features
| BeamForming | Yes |
| Built-in processor | Yes |
| DHCP server | Yes |
| Firewall security | Firewall |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| MU-MIMO technology | Yes |
| Parental control | Yes |
| Parental control features | Content filter,SafeSearch,Time rewards |
| Port forwarding | Yes |
| Processor cores | 4 |
| Processor frequency | 1.5 GHz |
| Quality of Service (QoS) support | Yes |
| Virtual assistant | Google Assistant |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet WAN | Yes |
Power
| AC adapter output current | 2 A |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 240 V |
Weight & dimensions
| Depth | 106 mm |
| Height | 200 mm |
| Weight | 1040 g |
| Width | 106 mm |
Packaging content
| Ethernet cable | Yes |
| Number of products included | 1 pc(s) |
| Quick installation guide | Yes |
Packaging data
| Package depth | 246 mm |
| Package height | 134 mm |
| Package weight | 1840 g |
| Package width | 250 mm |
ELKO Internal Logistics Data
| Shipping Box Depth | 51.5 cm |
| Shipping Box Height | 28 cm |
| Shipping Box Weight | 12.1000003814697 kg |
| Shipping Box Width | 43.5 cm |
| Unit Calculated Volume | 0.01045 cubm |
ELKO Logistics Data
| Unit Calculated Weight | 2.02 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 6 |
