ROG Strix GS-BE7200 Dual-band WiFi 7 (802.11be) Gaming Router, supports 4096-QAM, up to 7.2 Gbps, dual gaming ports, enhanced 5GHz long-range antennas, Gaming Network, Smart Home Master, AiProtection, and comprehensive VPN features

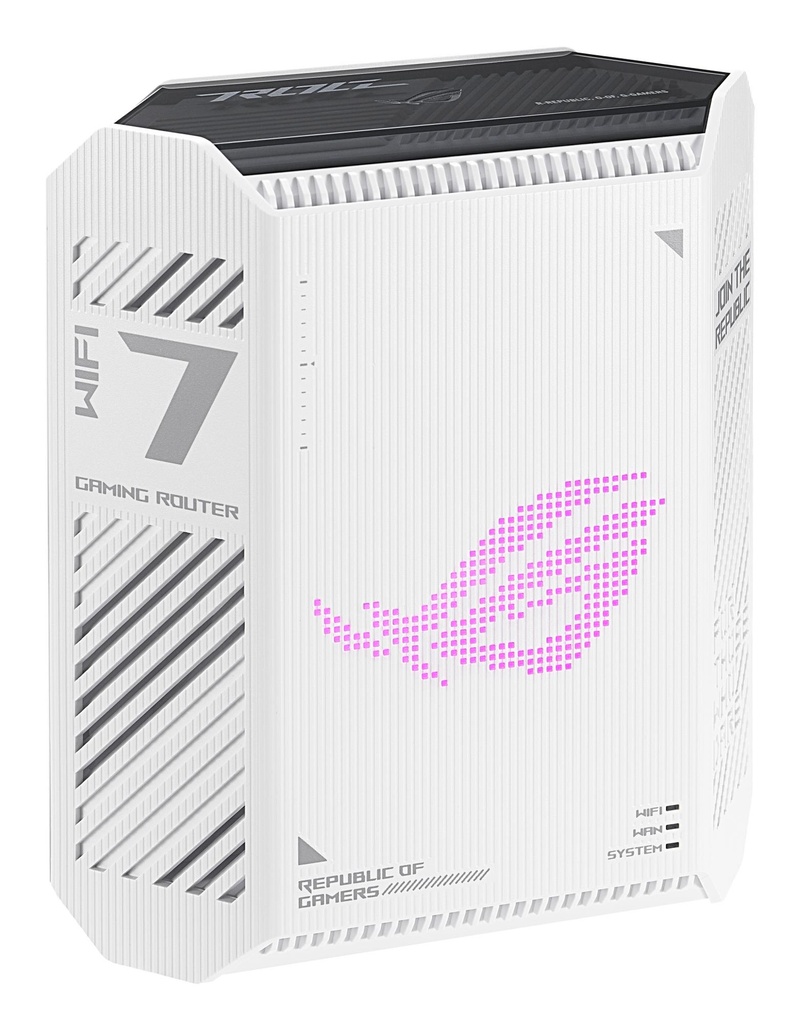

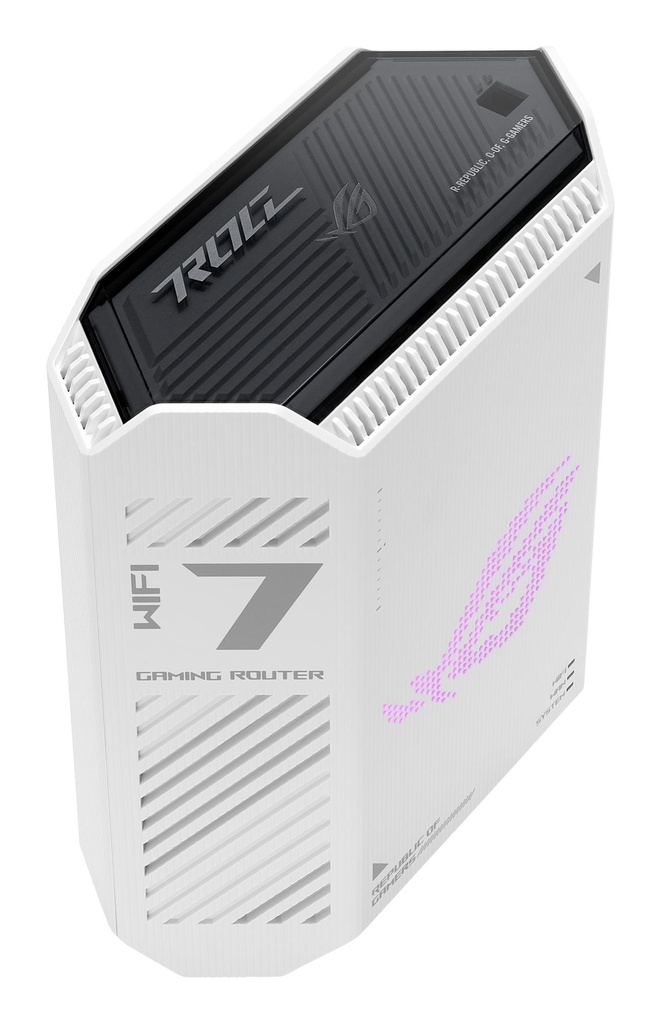

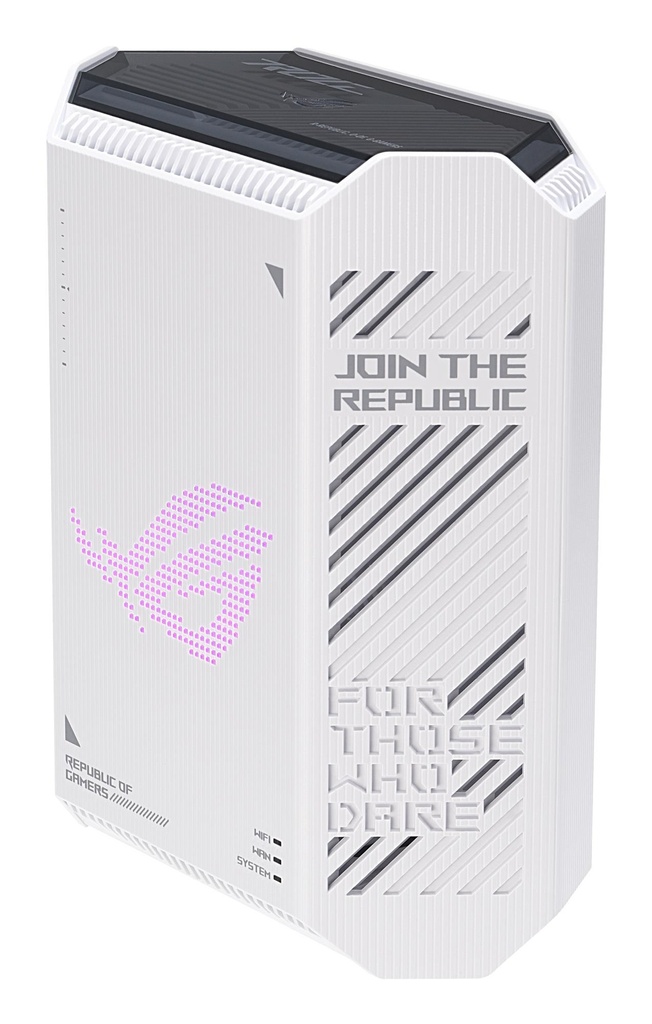

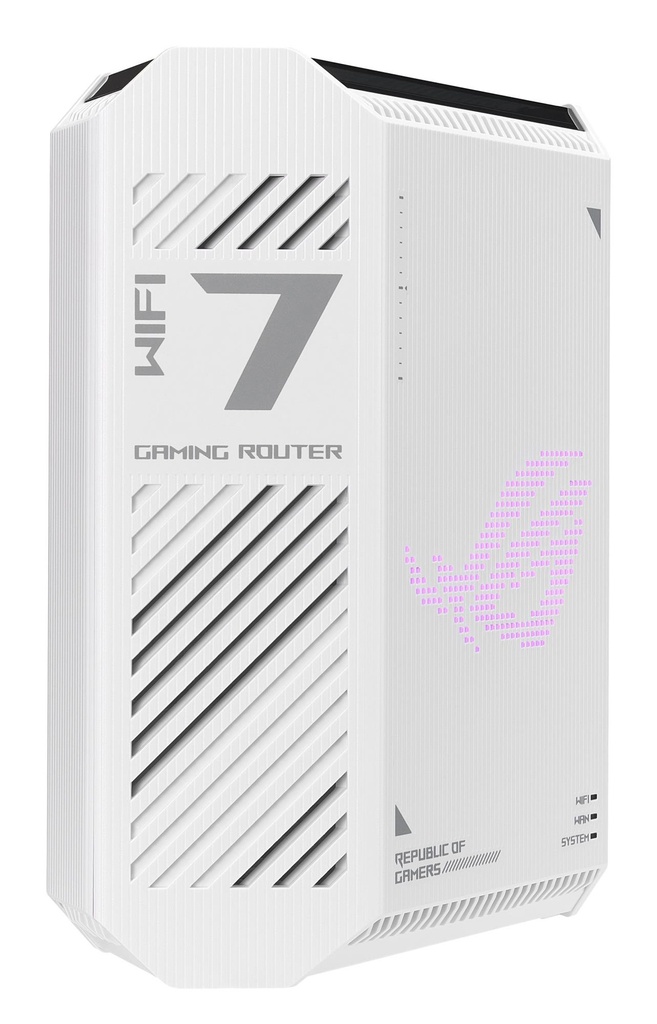

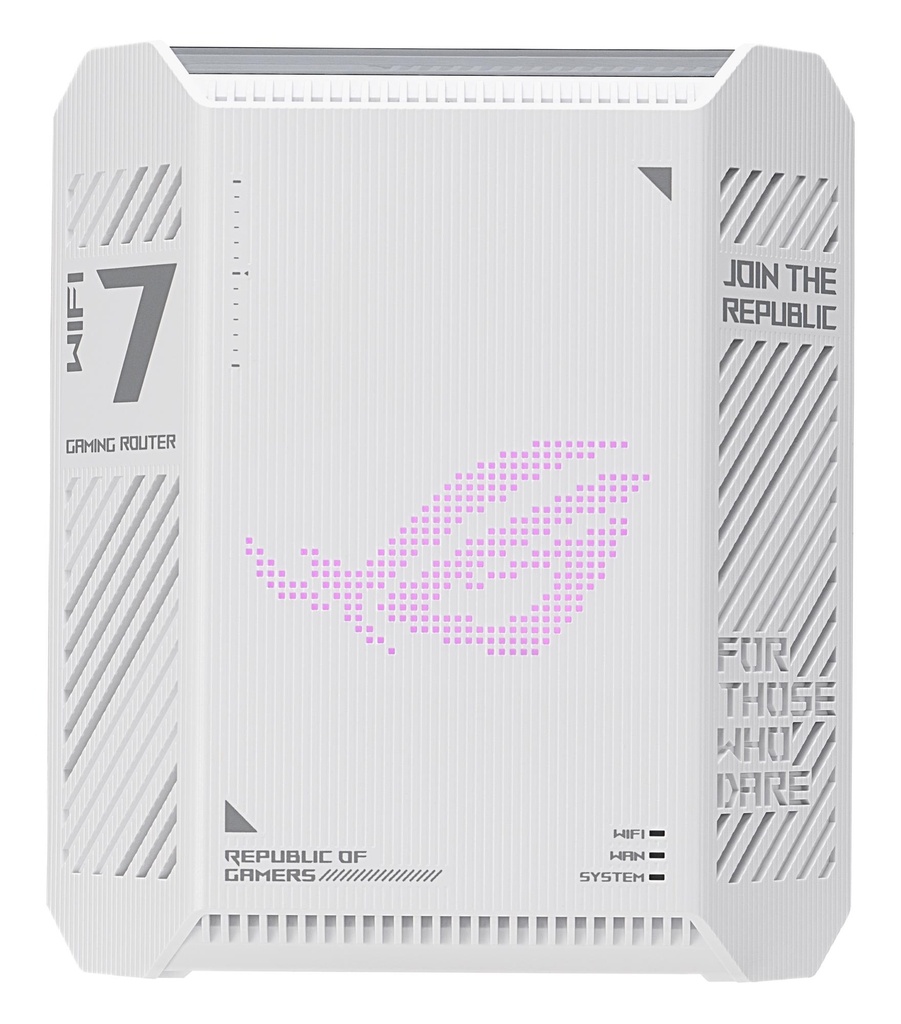

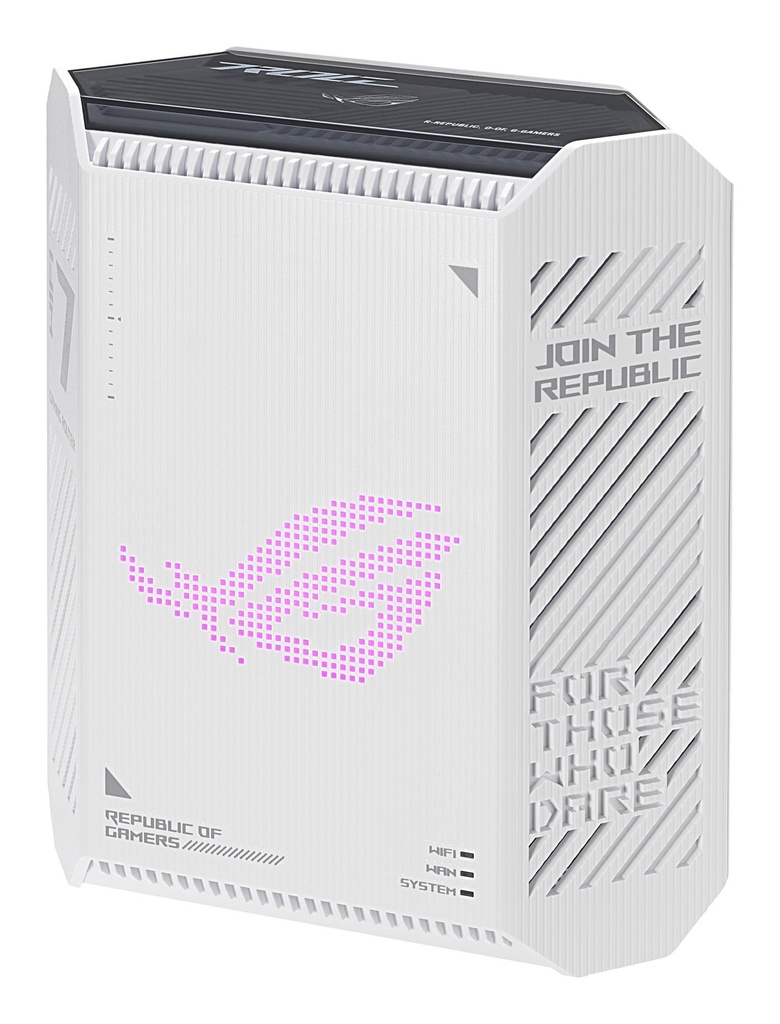

ROG Strix GS-BE7200
POWER YOUR VICTORY
The ROG Strix GS-BE7200 is a premium WiFi 7 gaming router delivering up to 7200Mbps with dual-band Multi-Link Operation, 160MHz channels, and advanced 4K-QAM for fast, stable, low-latency online gameplay. Its advanced 5GHz 5T5R five-antenna design improves signal throughput by up to 15% for extended coverage, while two dedicated 2.5G Ethernet gaming ports prioritize wired gaming traffic for smoother, more responsive play.
- Dual-band WiFi 7 throughput of up to 7200Mbps with MLO and 4K-QAM
- 12.5G wired capacity with four 2.5G LAN ports and one 2.5G WAN port
- Six internal antennas and boosted 5GHz range, delivering up to 15% better throughput at long distances than standard 5GHz 4T4R routers
- ROG-exclusive Gaming Network with Adaptive QoE prioritizes game traffic in real time, keeping gameplay smooth and lag-free—even under heavy network load
- Easy IoT device and VPN subnetwork setup, parental controls, and instant connections with Smart Home Master
- Advanced triple-level network security with AiProtection and pre-installed VPN support
- WiFi 7-enhanced AiMesh enables a secure and extendable network for compatible ASUS routers
General
| Unit Calculated Weight | 1.58 kg |
| Unit Calculated Volume | 0.007762 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | ASUS GS-BE7200. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 7200 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 2500 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA2, WPA3-Personal, WPA3-Enterprise, WPS, SSH, NAT functionality: NAT Passthrough : NAT Passthrough : NAT Passthrough : PPTP Pass-Through NAT Passthrough : L2TP.... Product type: Tabletop router, Product colour: White, Black, LED indicators: WAN, WLAN, System |
| CnCode | 85176200 |
| Unit Box Height | 0.245 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.1 |
| Model name | GS-BE7200 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 1376 Mbit/s |
| WLAN data transfer rate (max) | 7200 Mbit/s |
| WLAN data transfer rate (second band) | 5764 Mbit/s |
WAN connection
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n |
| PPPoE/PPTP/L2TP pass-through | Yes |
| VPN server | Y |
| VPN support | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |

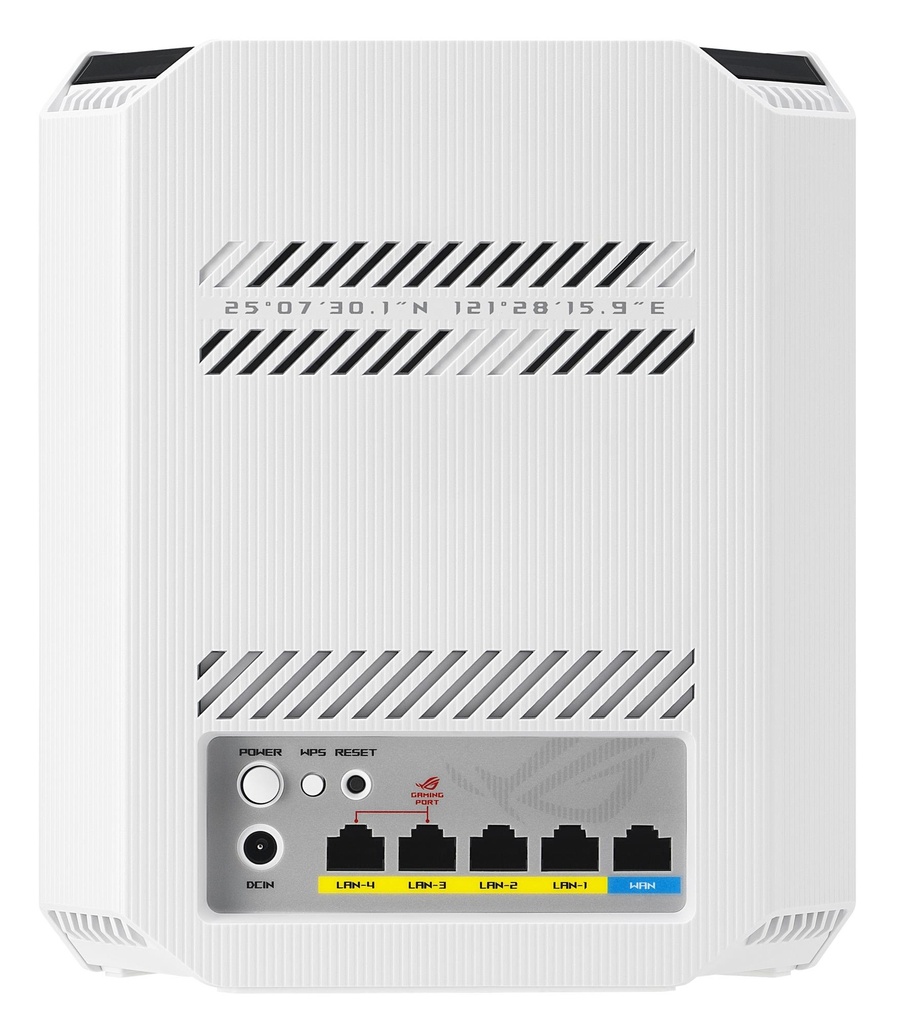

Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| Bandwidth control | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Traffic statistics | Yes |
| Web-based management | Yes |
| WPS push button | Yes |
Security
| Firewall | Yes |
| Guest access | Yes |
| IGMP snooping | Yes |
| NAT functionality | NAT Passthrough : NAT Passthrough : NAT Passthrough : PPTP Pass-Through NAT Passthrough : L2TP Pass-Through NAT Passthrough : IPSec Pass-Through NAT Passthrough : RTSP Pass-Through NAT Passthrough : H.323 Pass-Through NAT Passthrough : SIP Pass-Through NA |
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Security algorithms | SSH/WPA/WPA2/WPA3-Enterprise/WPA3-Personal/WPS |
Protocols
| DHCP server | Yes |
Design
| LED indicators | WAN,WLAN,System |
| On/off switch | Yes |
| Product colour | Black/White |
| Product type | Tabletop router |
Packaging content
| Cables included | DC |
| Quick start guide | Yes |
| Warranty card | Yes |
Antenna
| Antenna design | Internal |
| Antennas quantity | 6 |
Features
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 1024 MB |
| Internal memory type | DDR4 |
| Processor cores | 4 |
| Processor frequency | 2000 MHz |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 110 - 240 V |
| Output current | 2.5 A |
| Output voltage | 12 V |
| Power source type | DC |
Weight & dimensions
| Depth | 80 mm |
| Height | 207 mm |
| Weight | 750 g |
| Width | 182.3 mm |
Packaging data
| Number of products included | 1 pc(s) |
| Package depth | 241 mm |
| Package height | 95 mm |
| Package type | Box |
| Package weight | 1390 g |
| Package width | 273 mm |
