ASUS Zenbook S 14
New Zen with superior AI
Experience the world-changing power of AI with Zenbook S 14, a new-era ASUS Copilot+ PC that combines an exceptional 1.1 cm-slim1 design with cutting-edge technology. Its all-metal body — with a unique Ceraluminum™ high-tech ceramic lid and nature-inspired colors — houses next-level AI capabilities, driven by up to the latest Intel® Core™ Ultra 9 processor (Series 2) with ambient cooling minimize noise. Immerse yourself in a visual feast with the stunning 3K ASUS Lumina OLED2 display, complemented by rich and powerful sound from the four-speaker audio system. Zenbook S 14 brings you elegance, power, and innovation in a slim and sophisticated package.
- Windows 11 Home 64-bit
- Intel Core Ultra 7 258V (12MB Cache)
- 35.6 cm (14") 3K 2880 x 1800 OLED
- 32GB LPDDR5x-SDRAM & 1000GB SSD
General
| Unit Calculated Weight | 2.93 kg |
| Unit Calculated Volume | 0.01274/0.01311 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ASUS Zenbook S14 UX5406SA-PV050W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 258V. Display diagonal: 35.6 cm (14"), HD type: 3K, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 140V. Operating system installed: Windows 11 Home. Product colour: Grey. Weight: 1.2 kg |
| Unit Box Height | 0.28 |
| Unit Box Length | 0.455 |
| Unit Box Width | 0.1 |
| NB Family name | ZenBook Series |
Processor
| Low Power Efficient-core Base Frequency | 2200 MHz |
| Low Power Efficient-core Max Turbo Frequency | 3.7 GHz |
| Low Power Efficient-cores | 4 |
| Maximum turbo power | 37 W |
| Performance cores | 4 |
| Performance-core base frequency | 2.2 GHz |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Processor base power | 17 W |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor cores | 8 |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 258V |
| Processor threads | 8 |

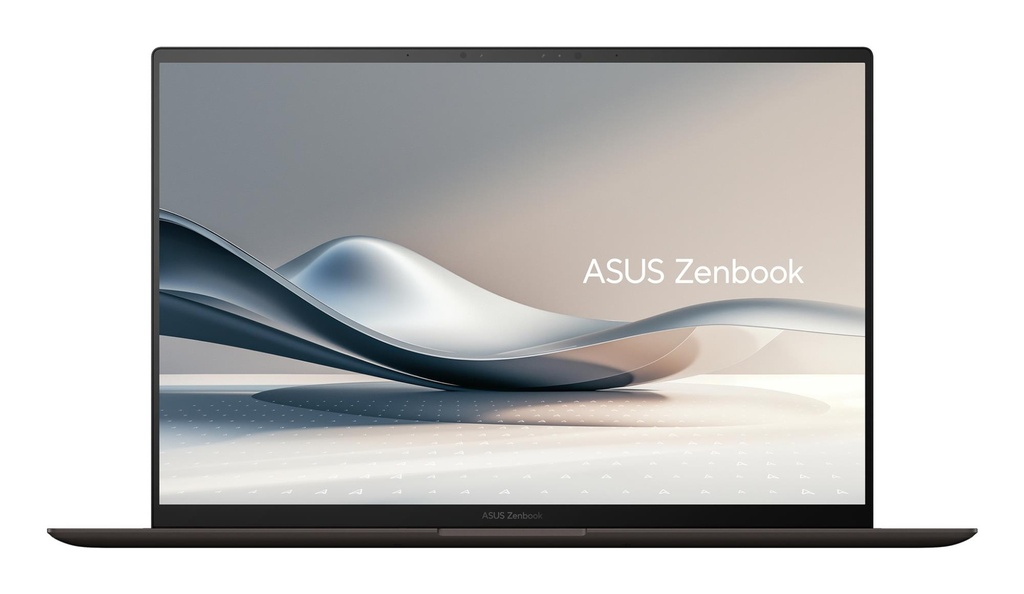

Display
| Colour gamut | 100 % |
| Display brightness | 400 cd/m² |
| Display diagonal | 14 " |
| Display resolution | 2880 x 1800 pixels |
| Display surface | Gloss |
| HD type | 3K |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 120 Hz |
| Native aspect ratio | 16:10 |
| Panel type | OLED |
| RGB colour space | DCI-P3 |
| Touchscreen | No |
Design
| Colour name | Zumaia Gray |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Market positioning | Home |
| Product colour | Grey |
| Product type | Laptop |
Neural processor unit (NPU)
| AI software frameworks supported by NPU | DirectML/ONNX RT/OpenVINO/WebNN/Windows ML |
| GPU performance up to | 64 TOPs |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 47 TOPs |
| Sparsity support | Yes |
| Total processor performance up to | 115 TOPs |
| Windows Studio effects support | Yes |
Memory
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Maximum internal memory | 32 GB |
| Memory form factor | On-package |
Storage
| M.2 SSD size | 2280 (22 x 80 mm) |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| Optical drive type | No |
| SSD capacity | 1000 GB |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total SSDs capacity | 1000 GB |
| Total storage capacity | 1000 GB |
Graphics
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics 140V |
Audio
| Audio system | Smart Amp |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
Network
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |

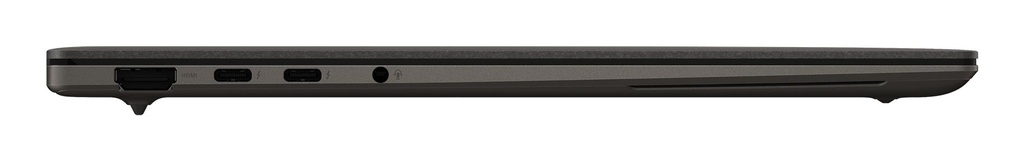

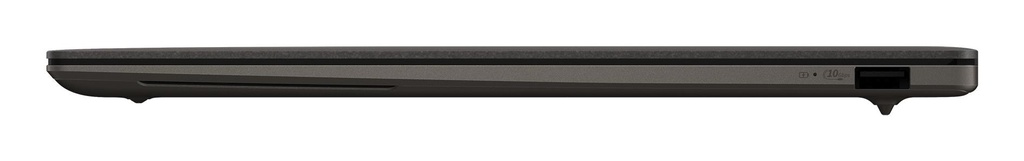

Ports & interfaces
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 9.4 |

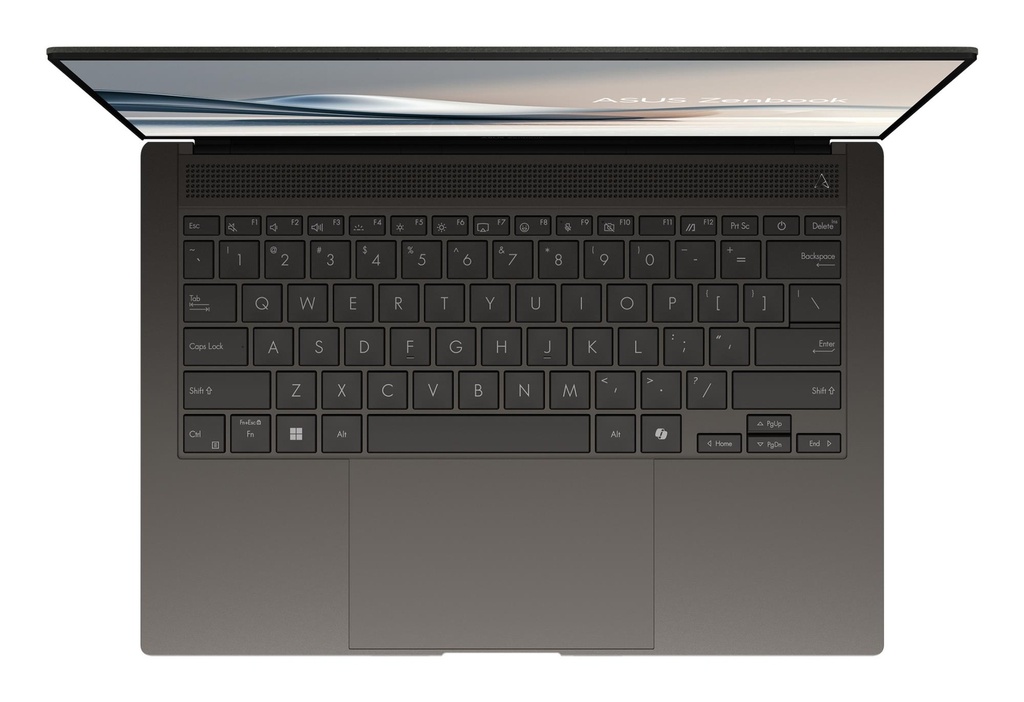

Keyboard
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Pointing device | Touchpad |
Software
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
Battery
| Battery capacity | 72 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.25 A |
| AC adapter output voltage | 20 V |
| AC adapter power | 65 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
Security
| Trusted Platform Module (TPM) | Yes |
| Windows Hello | Yes |
Weight & dimensions
| Depth | 214.7 mm |
| Height (front) | 11.9 mm |
| Height (rear) | 12.9 mm |
| Weight | 1200 g |
| Width | 310.3 mm |
Packaging content
| AC adapter included | Yes |
