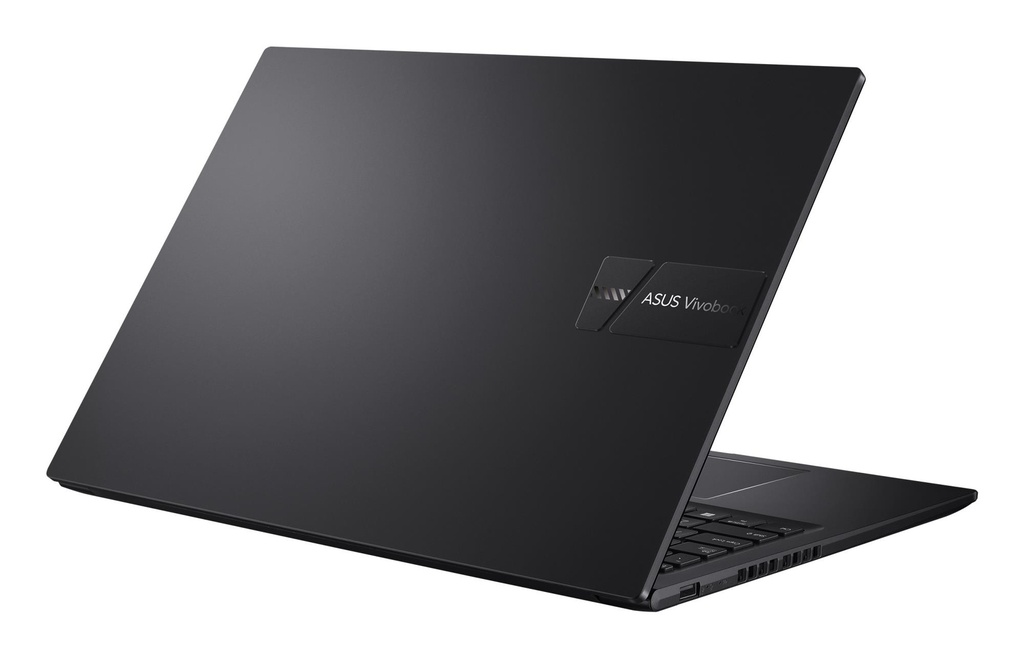

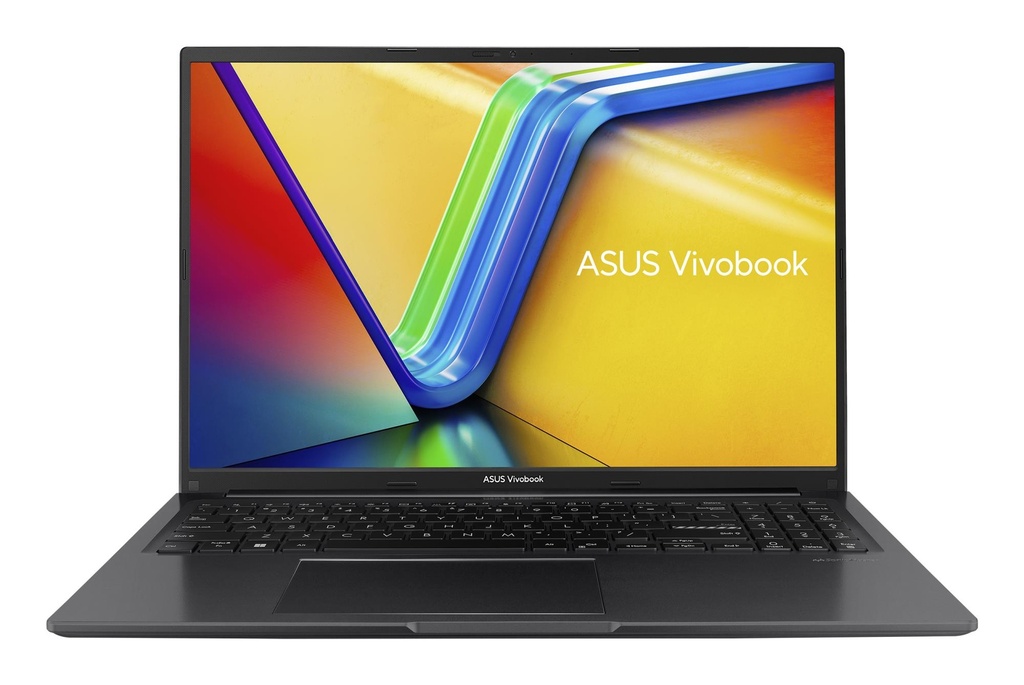

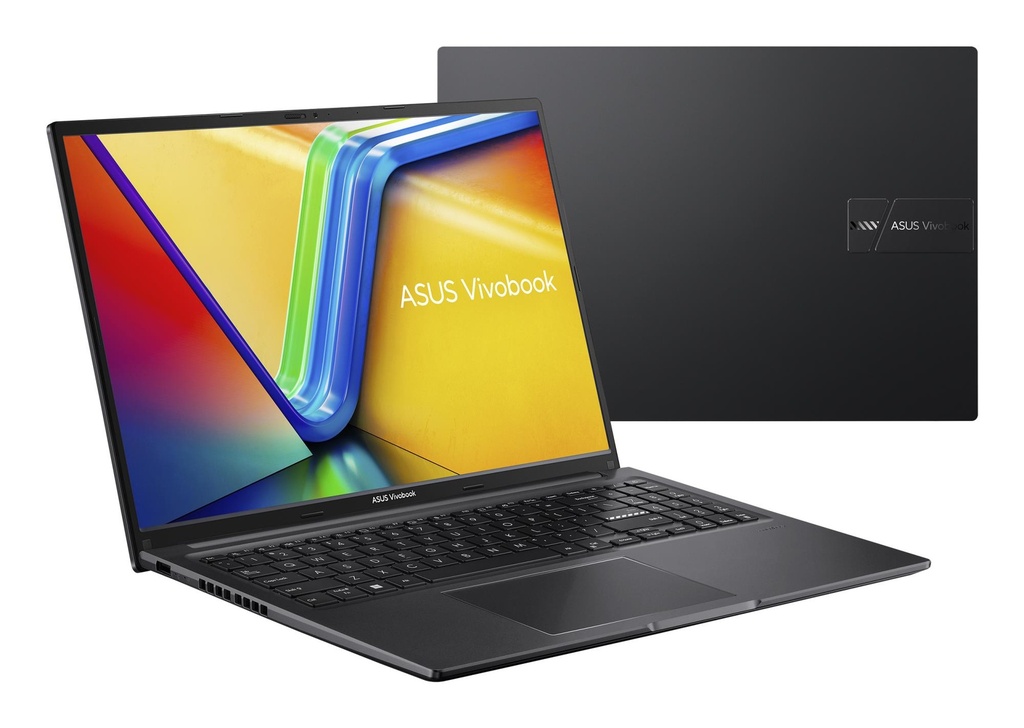

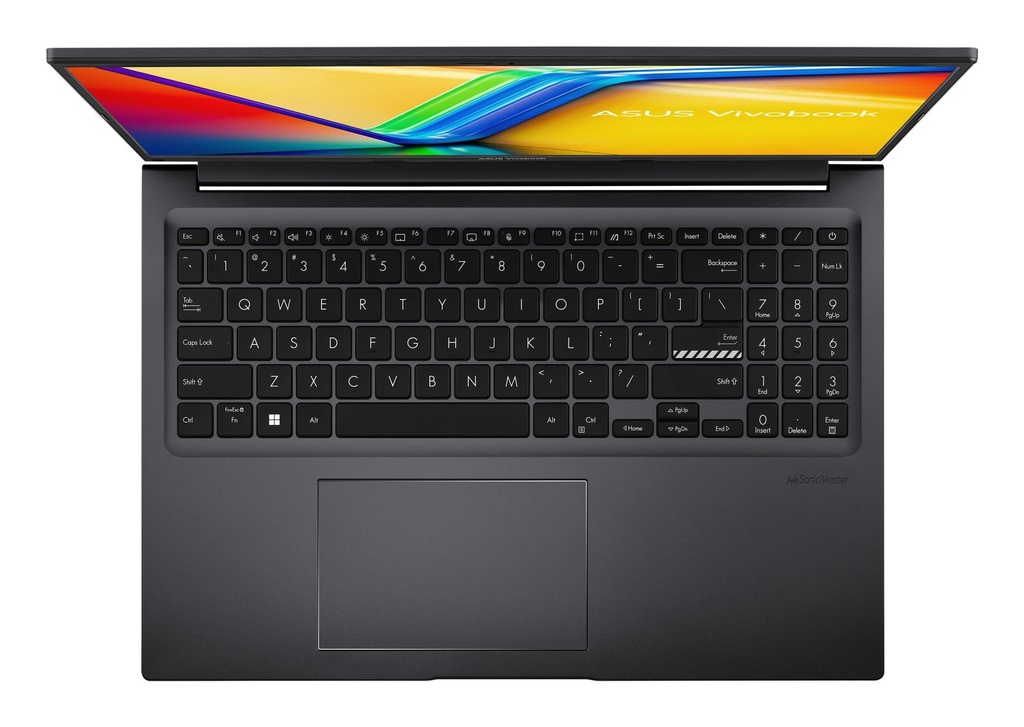

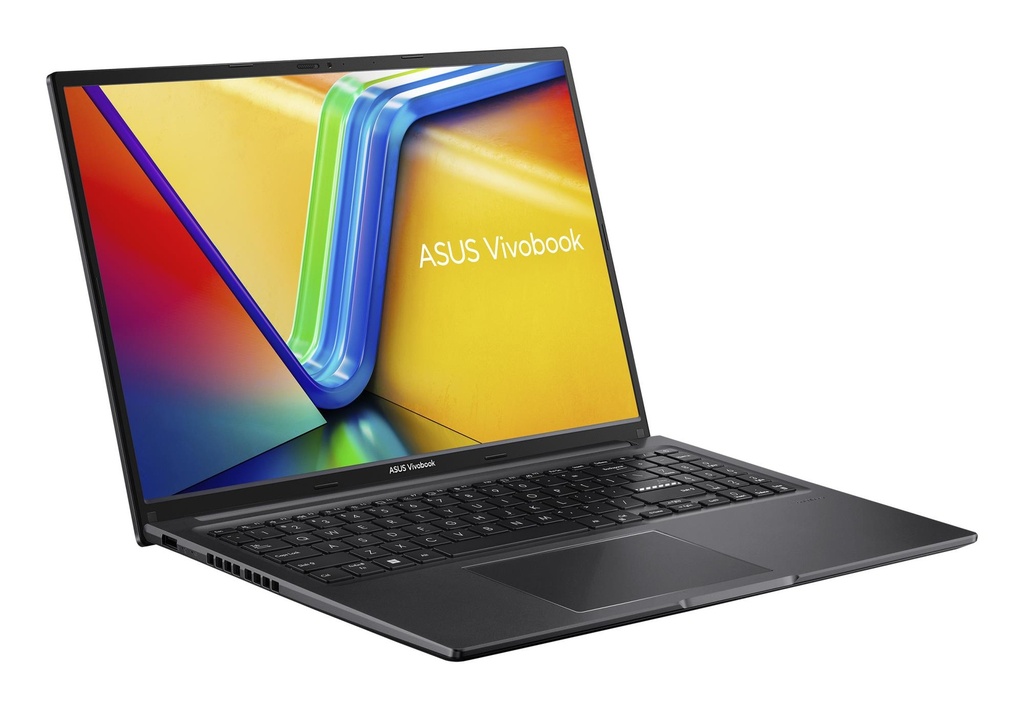

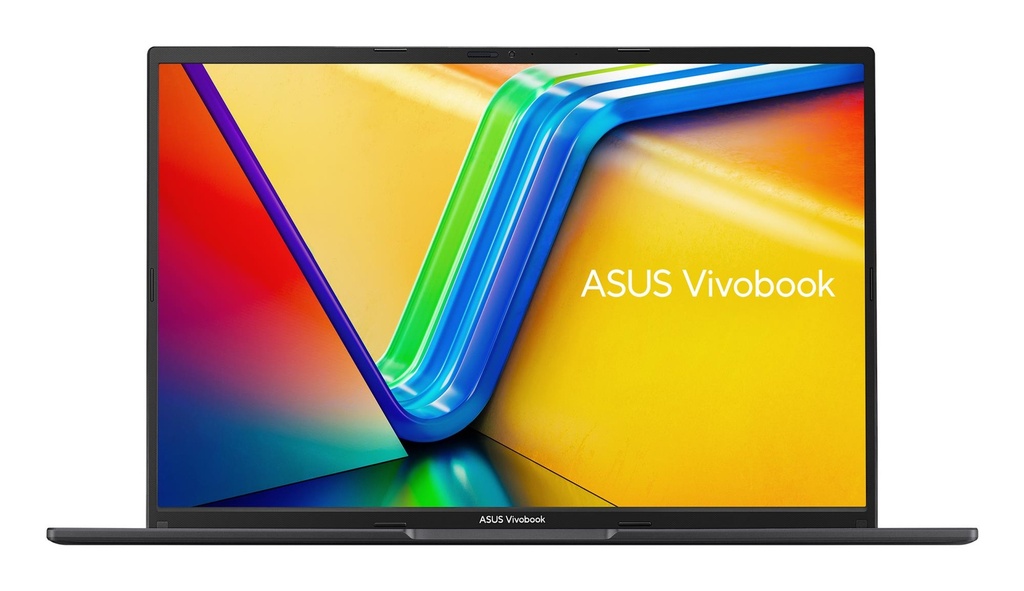

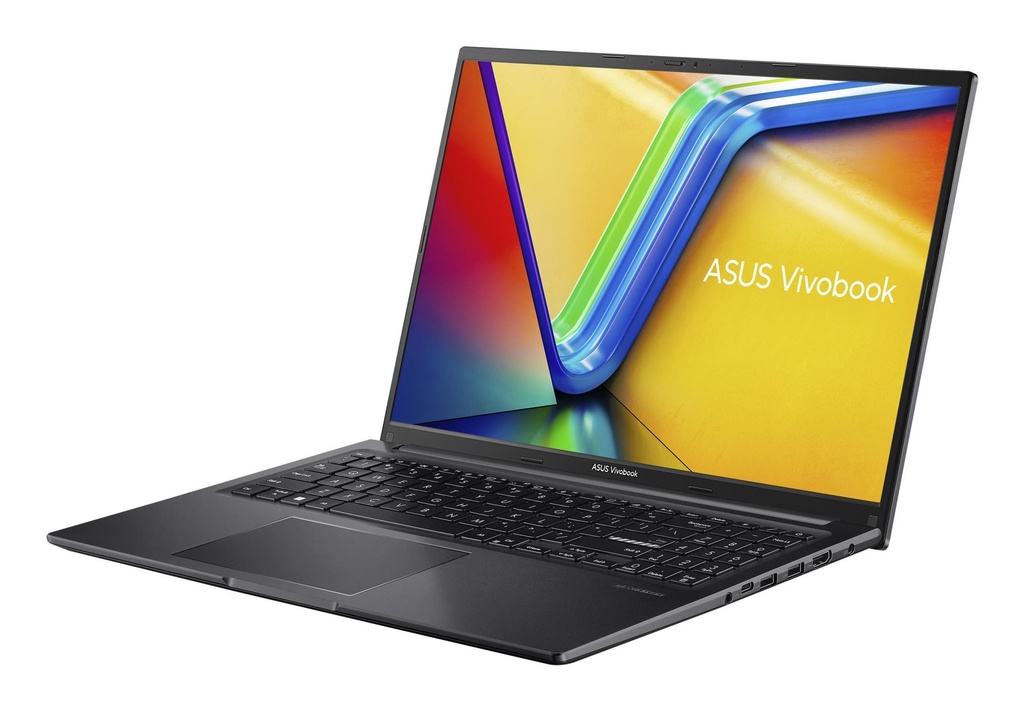

Brighten your vision
Everything is smoother with the powerful ASUS Vivobook 16 OLED, the feature-packed laptop with a brilliant 120 Hz1 OLED HDR2 display that has a cinema-grade 100% DCI-P3 gamut. And everything’s easier too, thanks to user-friendly features including a 180° lay-flat hinge, a physical webcam shield and dedicated function keys to turn your mic on or off. Your health is in safe hands with ASUS Antimicrobial Guard Plus protecting frequently-touched surfaces, and the bigger touchpad is now more finger-friendly. Enjoy the smooth power of Vivobook 16 OLED!
- Windows 11 Home 64-bit
- AMD Ryzen 7 170 (3.2GHz)
- 40.6 cm (16") WUXGA 1920 x 1200 OLED
- 16GB DDR5-SDRAM (1 x 8) & 1000GB SSD
General
| Unit Calculated Weight | 2.82 kg |
| Unit Calculated Volume | 0.009615 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ASUS Vivobook 16 OLED M1605NAQ-SH035W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 7, Processor model: 170, Processor frequency: 3.2 GHz. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 680M. Operating system installed: Windows 11 Home. Product colour: Black |
| Unit Box Height | 0.305 |
| Unit Box Length | 0.485 |
| Unit Box Width | 0.065 |
| Model name | M1605NAQ-SH035W |
| NB Family name | VivoBook Series |
Processor
| L2 cache | 4 MB |
| L3 cache | 16 MB |
| Processor boost frequency | 4.75 GHz |
| Processor cache type | L2 & L3 |
| Processor cores | 8 |
| Processor family | AMD Ryzen™ 7 |
| Processor frequency | 3.2 GHz |
| Processor generation | AMD Ryzen 100 Series |
| Processor manufacturer | AMD |
| Processor model | 170 |
| Processor threads | 16 |
Display
| Colour gamut | 95 % |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 300 cd/m² |
| Display diagonal | 16 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 1920 x 1200 pixels |
| Display response rise/fall | 0.2 ms |
| Display surface | Gloss |
| HD type | WUXGA |
| LED backlight | Yes |
| Low Blue Light technology | Yes |
| Maximum display brightness (HDR) | 500 cd/m² |
| Maximum refresh rate | 60 Hz |
| Native aspect ratio | 16:10 |
| Panel type | OLED |
| RGB colour space | DCI-P3 |
| Touchscreen | No |
Design
| Colour name | Indie Black |
| Form factor | Clamshell |
| Housing material | Plastic |
| Introduction year | 2023 |
| Market positioning | Home |
| Product colour | Black |
| Product type | Laptop |
Memory
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 16 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Number of SSDs installed | 1 |
| NVMe | Yes |
| Optical drive type | No |
| SSD capacity | 1000 GB |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total SSDs capacity | 1000 GB |
| Total storage capacity | 1000 GB |
Graphics
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card model | AMD Radeon 680M |
Audio
| Audio system | SonicMaster |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN | No |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
Ports & interfaces
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
Keyboard
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Pointing device | Touchpad |
Software
| Bundled software | 1-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2026. |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Trial software | 1-month trial for new Microsoft 365 customers; McAfee 30 days free trial |
Battery
| Battery capacity | 50 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.4 A |
| AC adapter output voltage | 20 V |
| AC adapter power | 68 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
Security
| Password protection | Yes |
| Password protection type | BIOS/User |
| Trusted Platform Module (TPM) | Yes |
Certificates
| Compliance certificates | REACH |
Sustainability
| Sustainability certificates | ENERGY STAR/EPEAT Silver |
Weight & dimensions
| Depth | 249.5 mm |
| Height | 19.9 mm |
| Weight | 1880 g |
| Width | 358.7 mm |
Packaging content
| AC adapter included | Yes |
