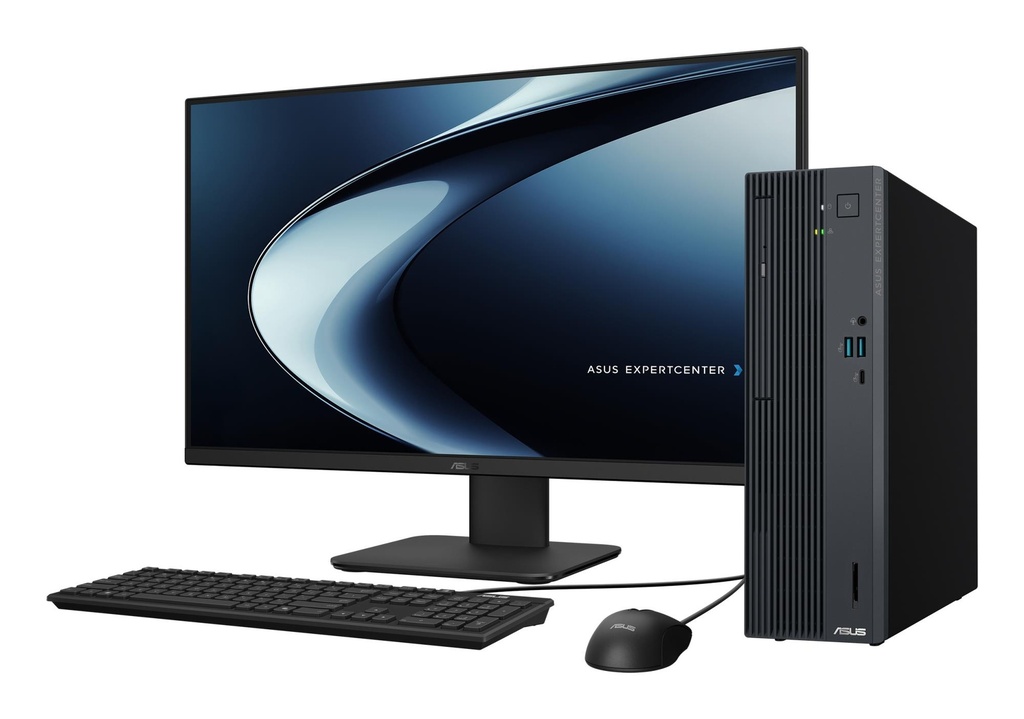

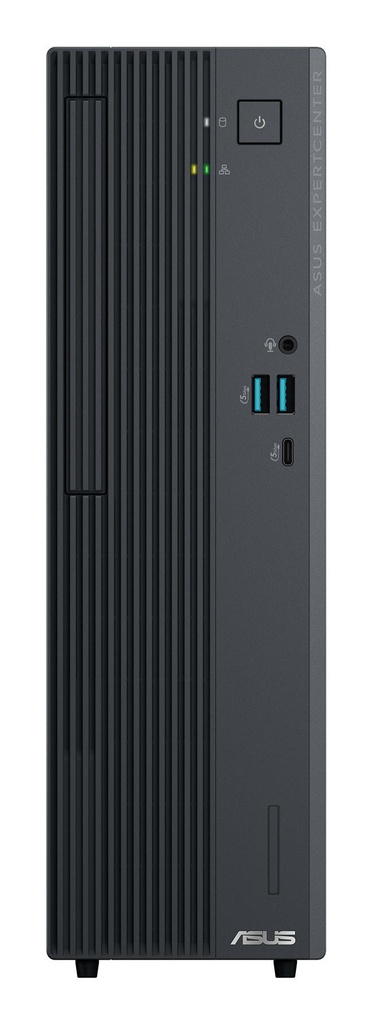

ASUS ExpertCenter P500 SFF
Exceptional Value and Performance for Businesses
ASUS ExpertCenter P500 SFF combines high-performance, business-grade security, and commercial-class services features in a compact and sleek design, providing budget-conscious small and medium business users with a flexible and organized workspace. Designed to withstand tough conditions and meet MIL-STD-810H US military standards1, it features a tool-free and expandable chassis, ensuring prolonged reliability and convenient upgrades for professionals.
- Windows 11 Pro 64-bit
- Intel Core 5 210H (12MB Cache)
- 16GB DDR5-SDRAM & 512GB SSD
General
| Unit Calculated Weight | 6.05 kg |
| Unit Calculated Volume | 0.04 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ASUS ExpertCenter P500 SFF P500SV-05210H168X. Processor family: Intel Core 5, Processor model: 210H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD, Optical drive type: DVD±RW. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: SFF. Product type: PC. Weight: 5.06 kg. Product colour: Grey |
| Unit Box Height | 0.505 |
| Unit Box Length | 0.48 |
| Unit Box Width | 0.165 |
| Desktop Computer Family name | ExpertCenter |
Design
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Chassis type | SFF |
| Colour name | Gray |
| Number of 3.5" bays | 1 |
| Placement supported | Vertical |
| Product colour | Grey |
Processor
| Efficient cores | 4 |
| Efficient-core base frequency | 1.6 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Maximum turbo power | 115 W |
| Performance cores | 4 |
| Performance-core base frequency | 2.2 GHz |
| Processor base power | 45 W |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor cores | 8 |
| Processor family | Intel Core 5 |
| Processor generation | Intel Core (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 210H |
| Processor threads | 12 |
Memory
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Memory data transfer rate | 5600 MT/s |
| Memory slots | 2x SO-DIMM |
Storage
| M.2 SSD size | 2280 (22 x 80 mm) |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| Optical drive type | DVD±RW |
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Total storage capacity | 512 GB |
Graphics
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Network
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| LAN controller | Intel WGI219V |

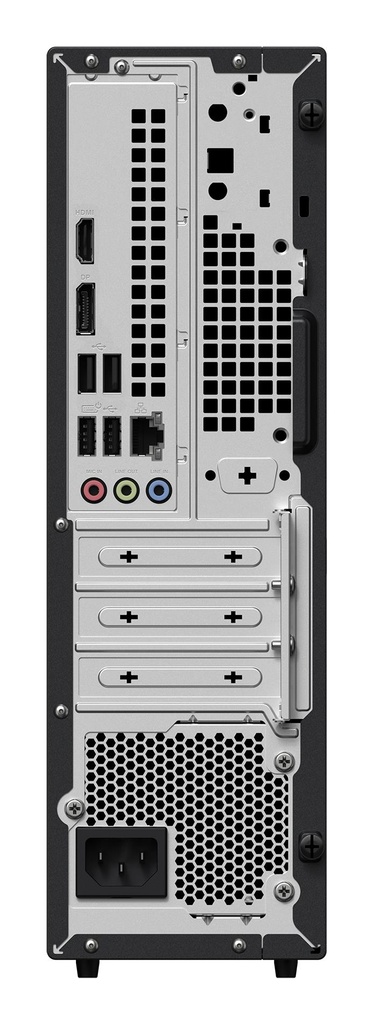

Ports & interfaces
| Combo headphone/mic port | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Line-in | Yes |
| Line-out | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Expansion slots
| PCI Express x16 (Gen 4.x) slots | 1 |
Performance
| Audio output channels | 7.1 channels |
| Audio system | High Definition Audio |
| Market positioning | Business |
| Password protection | Yes |
| Password protection type | HDD/User |
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
Power
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply | 180 W |
Certificates
| Compliance certificates | REACH |
Sustainability
| Sustainability certificates | ENERGY STAR/EPEAT Silver |
Weight & dimensions
| Depth | 296 mm |
| Height | 309 mm |
| Weight | 5060 g |
| Width | 93 mm |
Packaging content
| Keyboard connectivity | Wired |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Mouse included | Yes |
Display
| Display included | No |
Other features
| Bundled hardware | 1-month Adobe Creative Cloud Hard Bundle *Terms and exclusions apply. Offer only available in eligible markets. Eligible markets are determined at activation, and varies by region, device, and time. |
