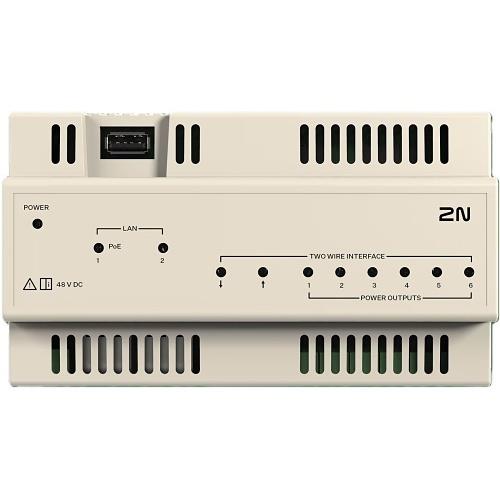

2N Clip 2wire-IP Switch
The switch is necessary for installing the 2N Clip 2wire-IP indoor station. You need one switch for each floor or every six 2N Clip 2wire-IP indoor stations. Conveniently, you can daisy-chain the switches to serve as many floors and apartments as needed.
General
| Model | 9138001 |
| Unit Box Height | 0.065 |
| Power supply requirements | external source, 48V DC, 1,92A |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.105 |
| Operating temperature range | -10 to 50°C |
| Dimensions | 155 x 88 x 59 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001228 cubm |
| Product Net Weight | 0.31 kg |
| Unit Calculated Weight | 0.31 kg |
Input/Output connectors
| RJ45 | 2 |
| USB 2.0 | 1 |
