- Double conversion topology
- Constantly monitors power conditions and regulates voltage and frequency
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Internal bypass allows service continuity in case of UPS fault
- LCD display

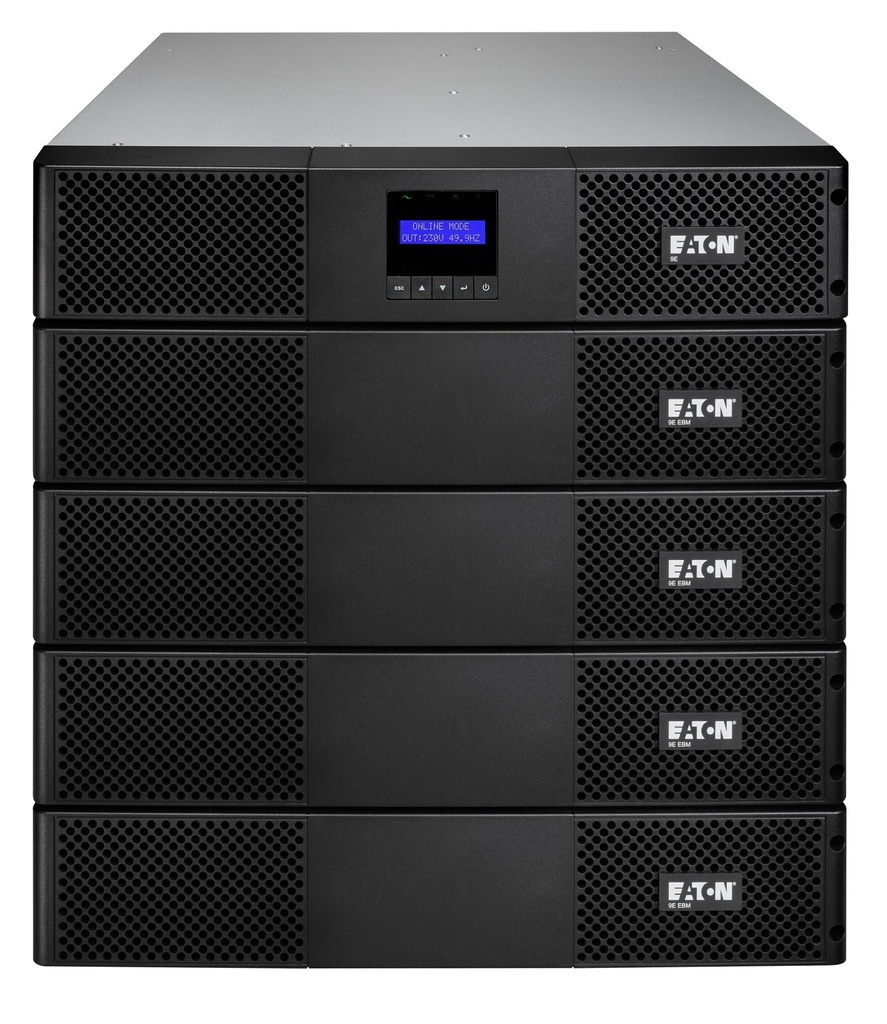

- Long backup time with up to 4 optional EBM
General
| Unit Calculated Weight | 32.4 kg |
| Unit Calculated Volume | 0.1041 cubm |
| Units per Shipping Box | 1 |
| Summary | Eaton 9E2000IR. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C13 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 CE |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.78 |
| Unit Box Width | 0.58 |
Features
| Audible alarm(s) | Yes |
| Efficiency | 91 % |
| Efficiency (ECO mode) | 96.5 % |
| Heat dissipation | 546 BTU/h |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 140 V |
| Input power factor | 99 |
| Noise level | 45 dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 1800 W |
| Output power capacity | 2 kVA |
| Output power factor | 0.9 |
| Power source type | AC |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |

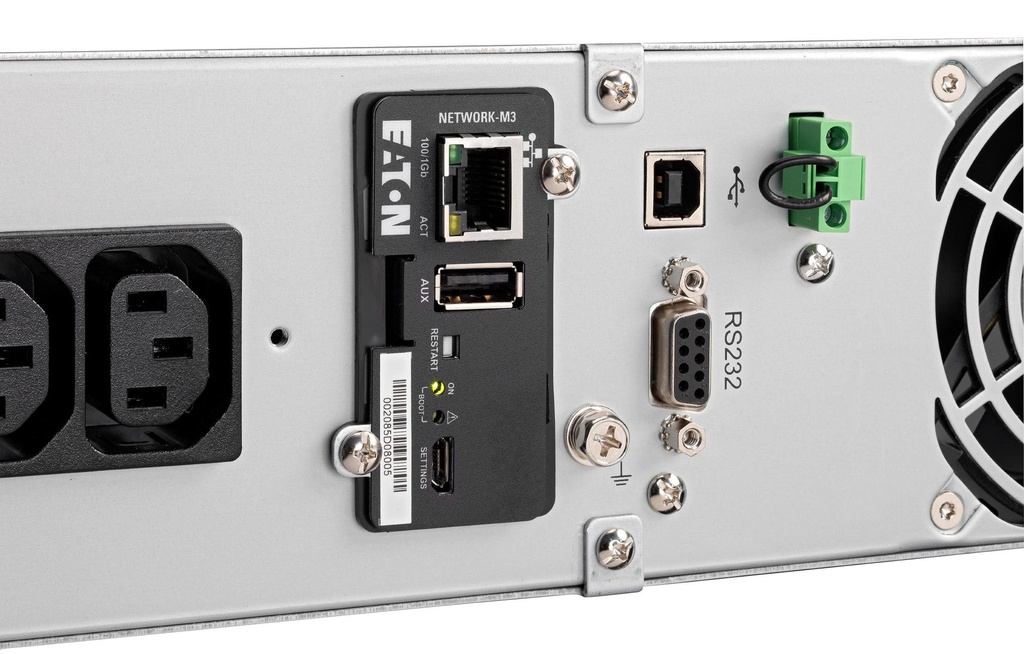

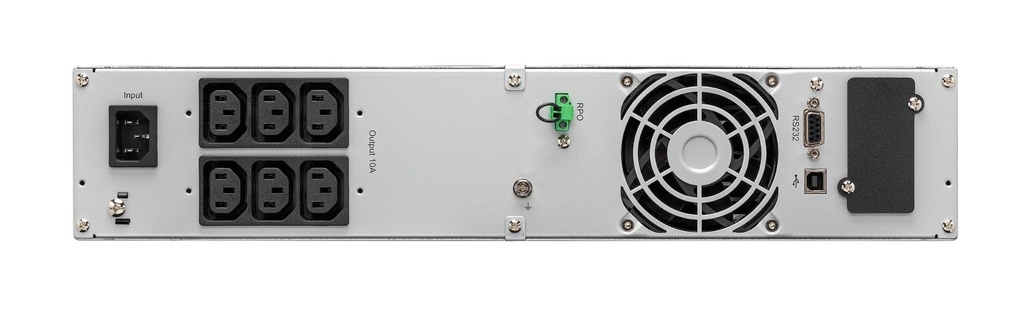

Ports & interfaces
| AC outlet types | C13 coupler/C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | C13 coupler |
| RS-232 ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| USB port | Yes |
Battery
| Battery capacity | 7 Ah |
| Battery technology | Lead-Acid |
| Battery voltage | 12 V |
| Number of batteries supported | 6 |
| Typical backup time at full load | 4.5 min |
| Typical backup time at half load | 12 min |
Design
| Control type | Buttons |

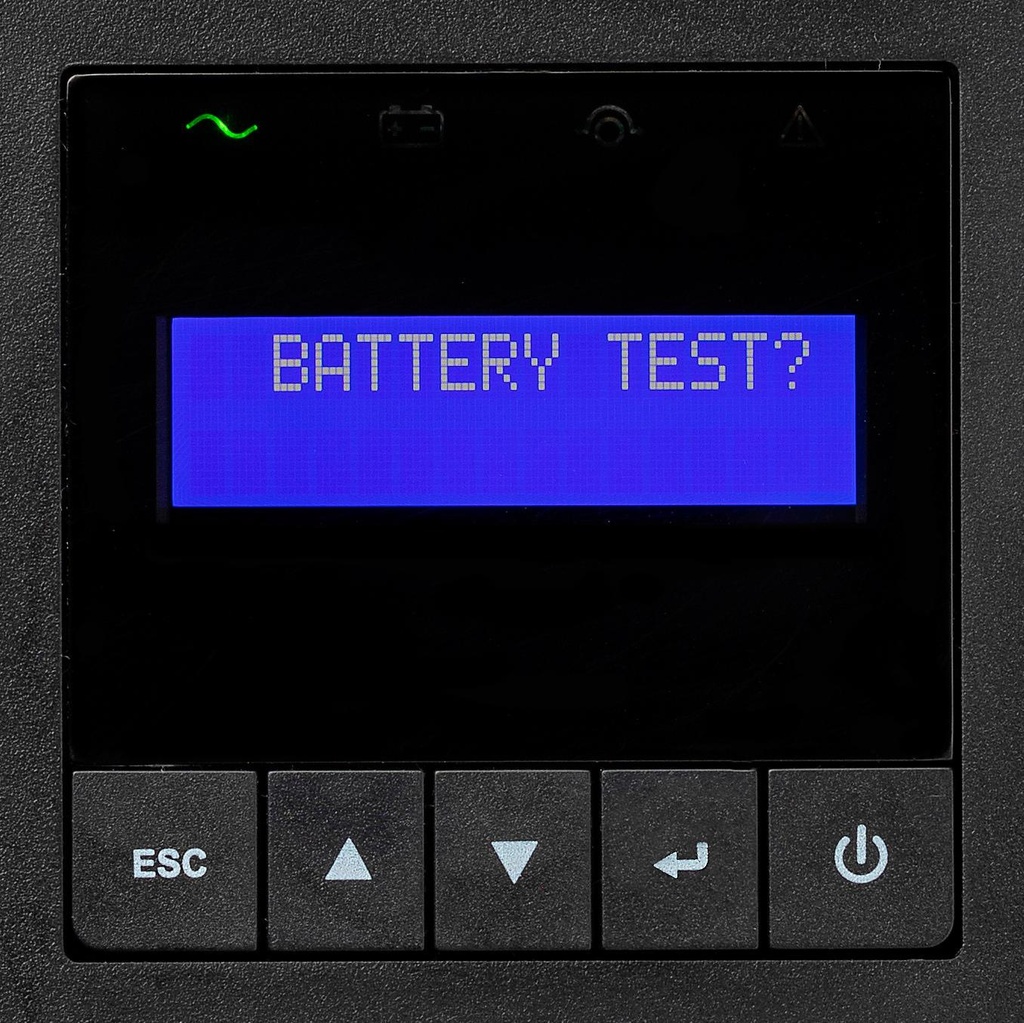

| Display type | LCD |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Rack capacity | 2U |
Operational conditions
| Operating relative humidity (H-H) | 0 - 96 % |
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Cables included | Output power cable,USB cable |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
Certificates
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 CE |
| Compliance certificates | CE |
Sustainability
| Sustainability compliance | Yes |
Weight & dimensions
| Depth | 608 mm |
| Height | 86.5 mm |
| Weight | 29900 g |
| Width | 438 mm |
