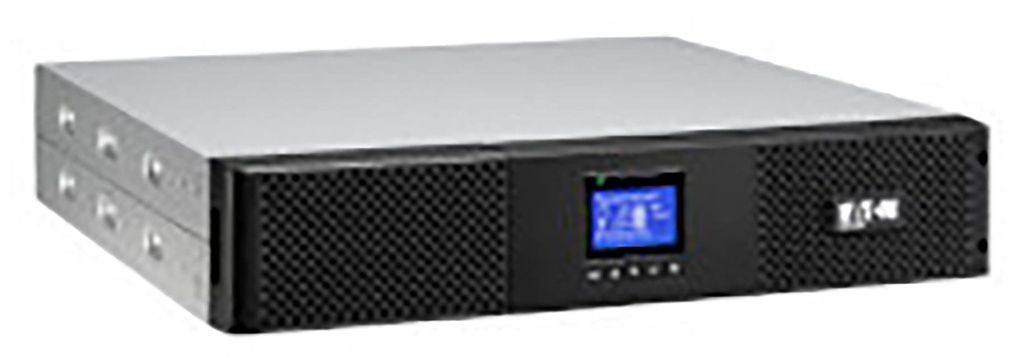

EATON 900 Watts 1000 VA OnLine DoubleConvertion 9SX1000IR
General
| Unit Calculated Weight | 15.7 kg |
| Unit Calculated Volume | 0.07524 cubm |
| Units per Shipping Box | 1 |
| Summary | Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C14 coupler, AC outlets quantity: 7 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC. Safety: IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.57 |
| Unit Box Width | 0.55 |
Features
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 190 V |
| Maximum current | 10 A |
| Noise level | 41 dB |
| Output frequency | 50/60 Hz |
| Output power | 900 W |
| Output power capacity | 1 kVA |
| UPS topology | Double-conversion (Online) |
Ports & interfaces
| AC outlet types | C13 coupler/C14 coupler |
| AC outlets quantity | 7 AC outlet(s) |
| Power plug | C14 coupler |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
Design
| Display type | LCD |
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 2U |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
Safety regulation & standards
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
Weight & dimensions
| Depth | 438 mm |
| Height | 86.5 mm |
| Weight | 15700 g |
| Width | 438 mm |
