3-port USB 3.1 Gen 1 (5 Gbps) hub
HDMI port with UHD 4K @30 Hz support
VGA Full HD video port
3.5 mm stereo audio output
10/100/1000 Mbps Gigabit LAN port
SD and Micro-SD card reader/writer
87 W USB Type-C Power Delivery 3.0 port
Durable premium style metal housing
- All functions you need in one single adapter.

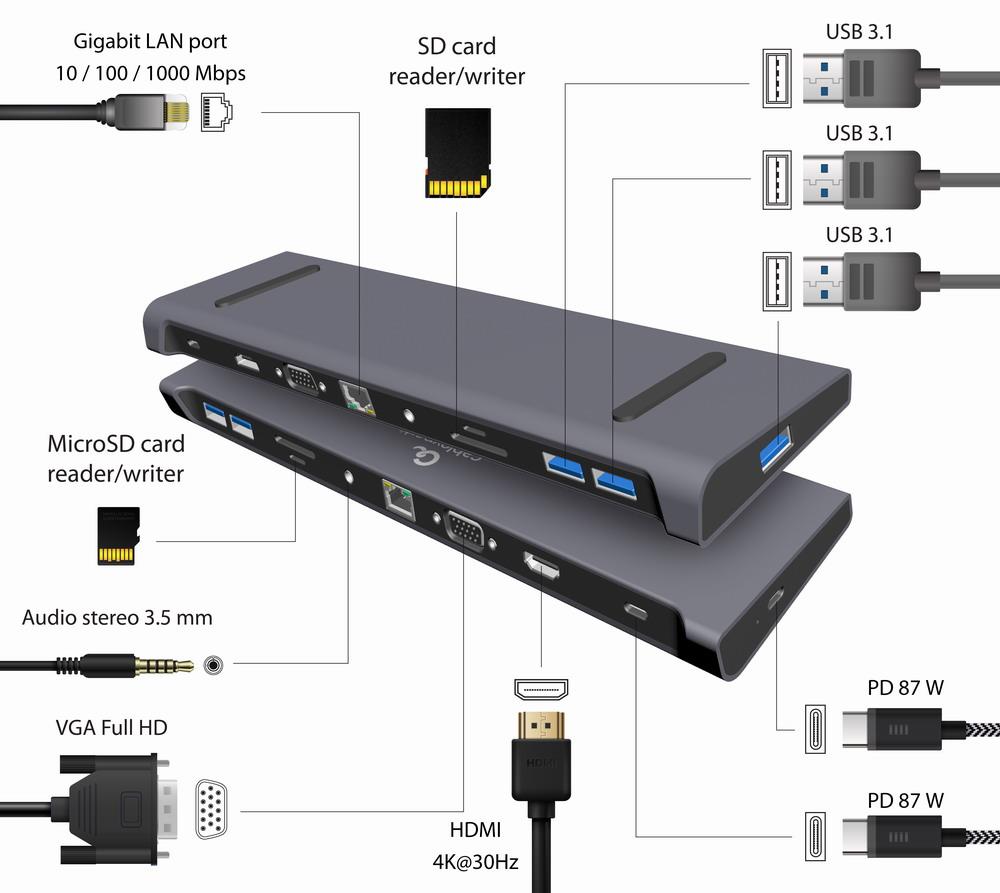

- 10-in-1 ports: USB hub, 4K HDMI and Full HD VGA video, stereo audio, Gigabit LAN port, card reader and USB Type-C PD charge support
- Plug & Play
General
| Summary | Gembird A-CM-COMBO10-01. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 87 W. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: USB, Power connector: USB Type-C, Input current: 0.2 A. Width: 74 mm, Depth: 277 mm, Height: 20 mm |
| Unit Box Height | 0.025 |
| Unit Box Length | 0.365 |
| Unit Box Width | 0.1 |
| Name | I/O ADAPTER USB-C TO HDMI/USB3/10IN1 A-CM-COMBO10-01 GEMBIRD |
Ports & interfaces
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB Power Delivery up to | 87 W |
| USB Power Delivery revision | 2.0 |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
Network
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
Performance
| Compatibility | The USB Type-C video source device must support DisplayPortT Alt Mode |
| Country of origin | China |
| Housing material | Metal |
| Plug and Play | Yes |
| Product colour | Grey |
| Maximum refresh rate | 60 Hz |
| Maximum analog resolution | 1920 x 1080 pixels |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum memory card size | 128 GB |
| Compatible memory cards | MicroSD (TransFlash)/SD |
| Card reader integrated | Yes |
| Colour name | Space Grey |
Power
| USB cable length | 0.15 m |
| Input current | 0.2 A |
| Power connector | USB Type-C |
| Power source type | USB |
Weight & dimensions
| Weight | 248 g |
| Height | 20 mm |
| Depth | 277 mm |
| Width | 74 mm |
Packaging data
| Package weight | 351 g |
| Package height | 25 mm |
| Package depth | 335 mm |
| Package width | 128 mm |
Technical details
| Compliance certificates | CE |
