3-port USB 3.1 Gen 1 (5 Gbps) hub
HDMI port with UHD 4K support
100 W USB Type-C Power Delivery port
10/100/1000 Mbps Gigabit LAN port
SD card reader/writer
Durable premium style metal housing

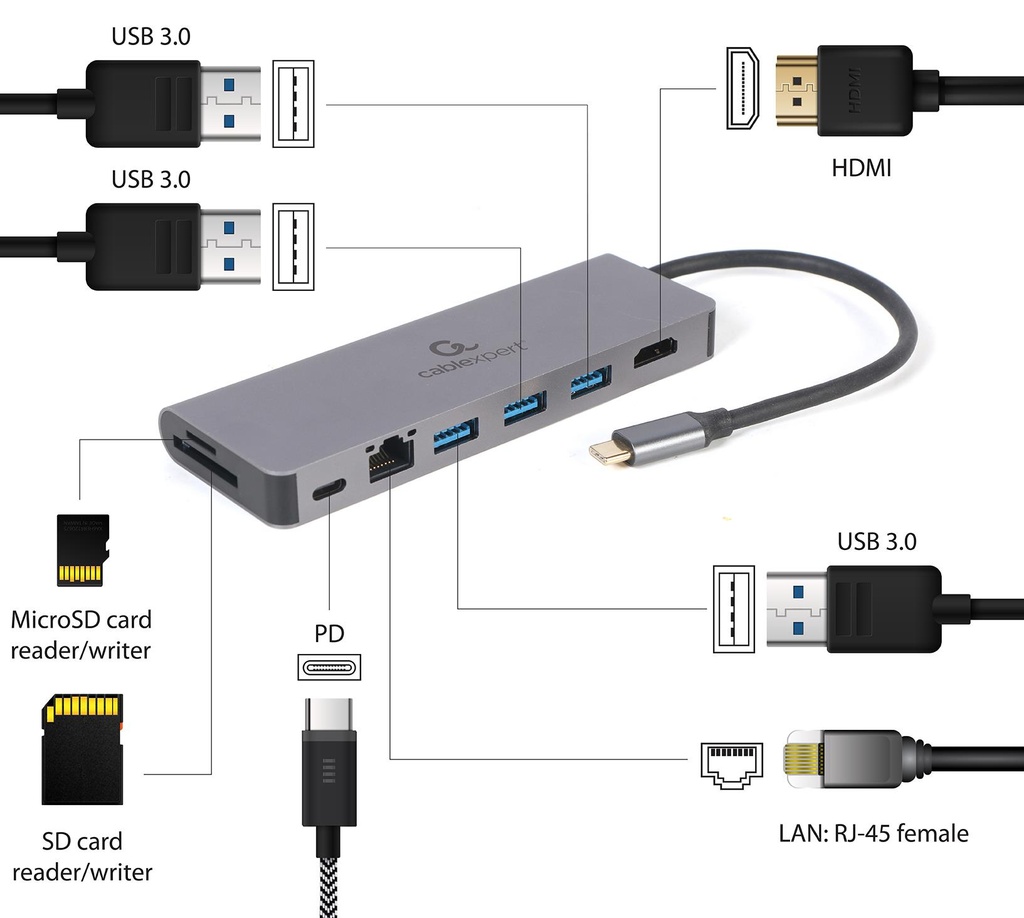

- 5-in-1: 3-port USB hub, 4K HDMI, Gigabit LAN port, card reader and USB Type-C PD charge support
- Fast Gigabit networking and Superspeed USB 3.1 data transfer via USB hub
- Practical card reader
- Plug & Play
General
| Summary | Gembird A-CM-COMBO5-05. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Hub interfaces: HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Compatible memory cards: MicroSD (TransFlash), SD. Data transfer rate: 5000 Mbit/s, Maximum refresh rate: 30 Hz, Supported graphics resolutions: 3840 x 2160. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s. Power supply type: USB. Width: 47 mm, Depth: 132 mm, Height: 14 mm |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.185 |
| Unit Box Width | 0.09 |
| Name | I/O ADAPTER USB-C TO HDMI/USB3/5IN1 A-CM-COMBO5-05 GEMBIRD |
| Model | A-CM-COMBO5-05 |
Ports & interfaces
| Compatible memory cards | MicroSD (TransFlash)/SD |
| Card reader slot | 2 |
| Card reader integrated | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ports quantity | 8 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Hub interfaces | HDMI,RJ-45,USB 3.2 Gen 1 (3.1 Gen 1) Type-A,USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Features
| Country of origin | China |
| Plug and Play | Yes |
| Cable length | 0.15 m |
| HD type | 4K Ultra HD |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Housing material | Metal |
| Product colour | Grey |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported video modes | 2160p |
| Supported graphics resolutions | 3840 x 2160 |
| Maximum refresh rate | 30 Hz |
| Data transfer rate | 5000 Mbit/s |
Network
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
Power
| Power supply type | USB |
Weight & dimensions
| Weight | 114 g |
| Height | 14 mm |
| Depth | 132 mm |
| Width | 47 mm |
Packaging data
| Package type | Box |
| Package weight | 112 g |
| Package height | 180 mm |
| Package depth | 185 mm |
| Package width | 90 mm |
Sustainability
| Sustainability compliance | Yes |
Technical details
| Compliance certificates | CE/RoHS |
