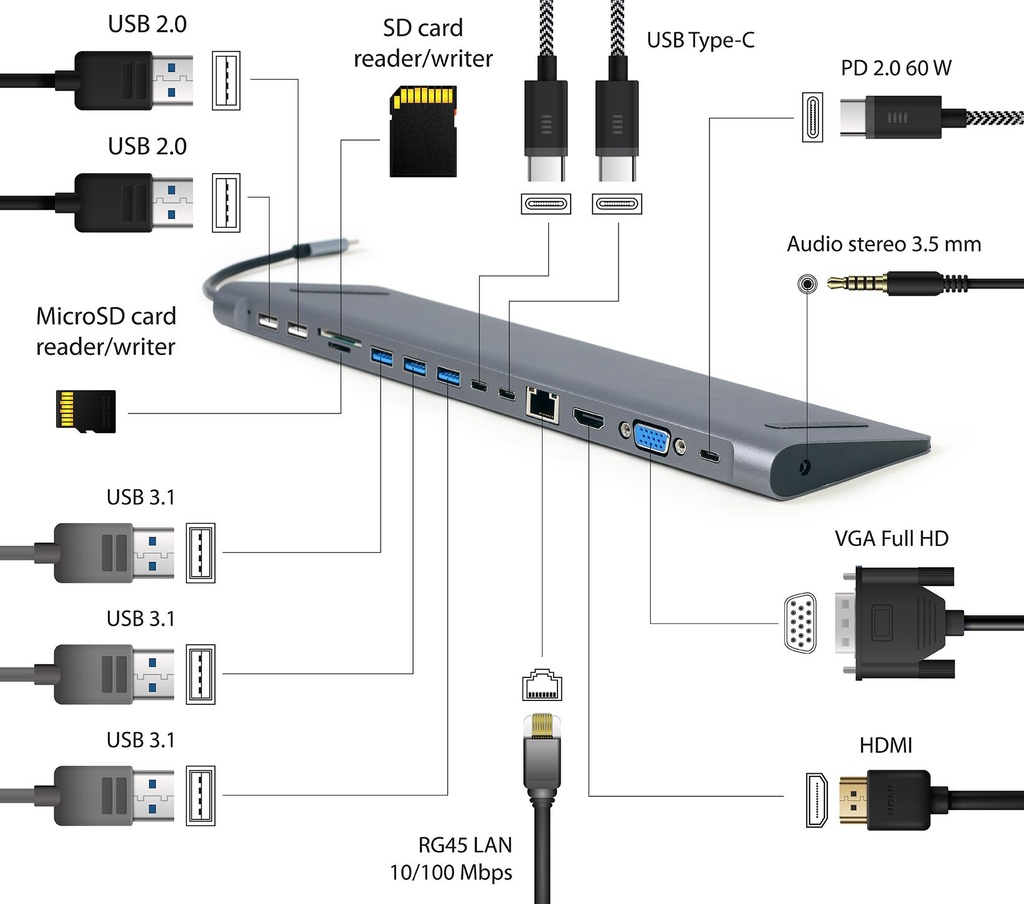

3-port USB 3.1 Gen 1 (5 Gbps) hub
2-port USB 2 (480 Mbps) hub
HDMI port with UHD 4K @30 Hz support
VGA Full HD video port
3.5 mm stereo audio output
10/100/1000 Mbps Gigabit LAN port
SD and Micro-SD card reader/writer
60 W USB Type-C Power Delivery 3.0 port
Durable premium style metal housing
- All functions you need in one single adapter.
- 9-in-1 functions: USB hub, 4K HDMI and Full HD VGA video, stereo audio, Gigabit LAN port, card reader and USB Type-C PD charge support
- Plug & Play
General
| Summary | Gembird A-CM-COMBO9-01. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Hub interfaces: 3.5mm, HDMI, RJ-45, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C, VGA. Power supply: 60 W, Power supply type: USB. Width: 84 mm, Depth: 294 mm, Height: 18 mm |
| CnCode | 84733080 |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.36 |
| Unit Box Width | 0.12 |
| Model | A-CM-COMBO9-01 |
Ports & interfaces
| HDMI ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| VGA (D-Sub) ports quantity | 1 |
Network
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
Performance
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/SD |
| Country of origin | China |
| Housing material | Metal |
| Hub interfaces | 3.5mm/HDMI/RJ-45/USB 2.0/USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB Type-C/VGA |
| Plug and Play | Yes |
| Product colour | Grey |
Power
| Power supply | 60 W |
| Power supply type | USB |
Weight & dimensions
| Depth | 294 mm |
| Height | 18 mm |
| Weight | 233 g |
| Width | 84 mm |
Packaging data
| Package depth | 340 mm |
| Package height | 21 mm |
| Package weight | 375 g |
| Package width | 120 mm |
Other features
| Cable length | 0.15 m |
ELKO Logistics Data
| Product Net Weight | 0.233 kg |
| Unit Calculated Weight | 0.351 kg |
| Units per Shipping Box | 1 |
ELKO Internal Logistics Data
| Shipping Box Depth | 36 cm |
| Shipping Box Height | 2 cm |
| Shipping Box Weight | 0.351 kg |
| Shipping Box Width | 12 cm |
| Unit Calculated Volume | 0.000864 cubm |
