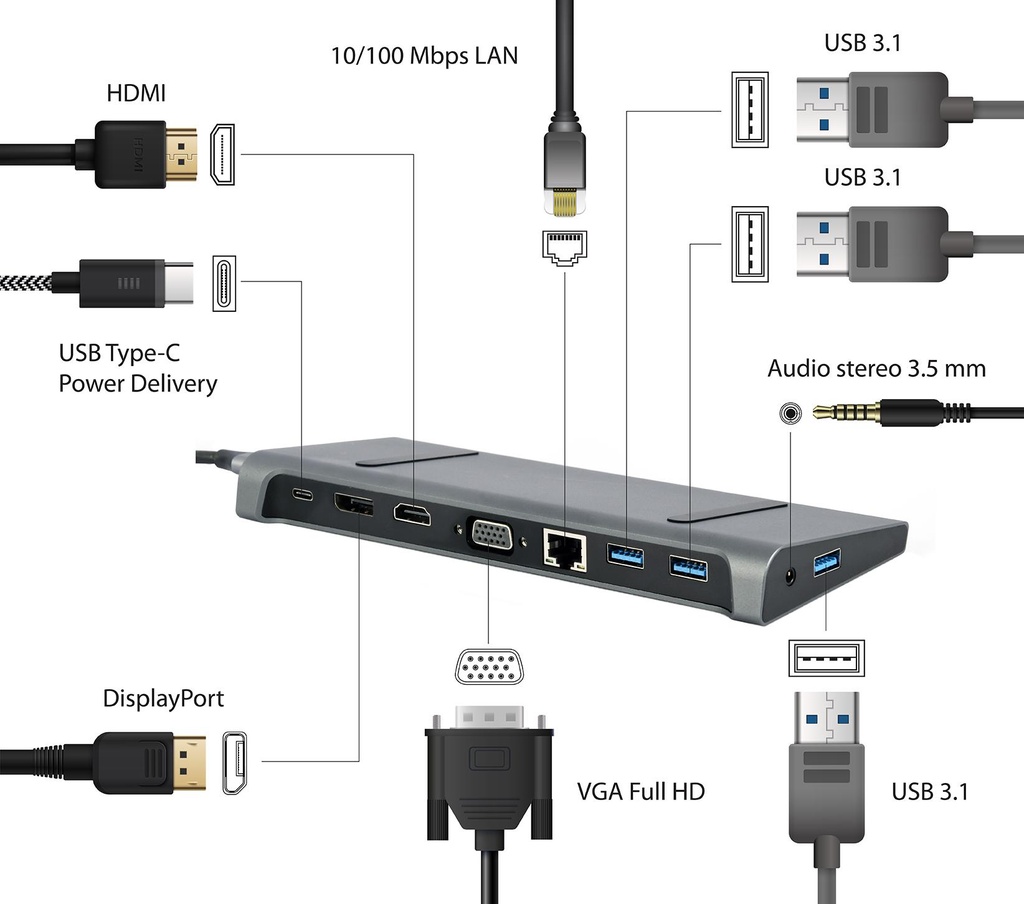

3-port USB 3.1 Gen 1 (5 Gbps) hub
HDMI port with UHD 4K @30 Hz support
DisplayPort port with UHD 4K @30 Hz support
VGA Full HD video port
Audio stereo 3.5 mm output
87 W USB Type-C Power Delivery 3.0 port
10/100/1000 Mbps Gigabit LAN port
Durable premium style metal housing
- 9-in-1: USB 3 hub, 4K HDMI, DisplayPort and Full HD VGA video, stereo audio, Gigabit LAN port and USB Type-C PD charge support
- Fast Gigabit networking and Superspeed USB 3.0 data transfer via USB hub
- Practical card reader, video and audio outputs
- Plug & Play
General
| Summary | Gembird A-CM-COMBO9-02. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 87 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 5 V, Input current: 0.2 A. Width: 74 mm, Depth: 201 mm, Height: 20 mm |
| Unit Box Height | 0.025 |
| Unit Box Length | 0.29 |
| Unit Box Width | 0.1 |
| Name | I/O ADAPTER USB-C TO HDMI/USB3/9IN1 A-CM-COMBO9-02 GEMBIRD |
Ports & interfaces
| Headphone outputs | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB Power Delivery up to | 87 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
Network
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
Performance
| Charging function | Yes |
| Plug and Play | Yes |
| Rubber feet | Yes |
| Hub interfaces | USB 3.1 (3.1 Gen 1) Type-A |
| Product colour | Grey |
| Maximum refresh rate | 30 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| Data transfer rate | 5 Gbit/s |
Power
| Input current | 0.2 A |
| AC input voltage | 5 V |
Weight & dimensions
| Weight | 193 g |
| Height | 20 mm |
| Depth | 201 mm |
| Width | 74 mm |
Packaging data
| Package weight | 276 g |
| Package height | 25 mm |
| Package depth | 335 mm |
| Package width | 128 mm |
ELKO Verified Logistics Data
| Unit Height | 2.5 cm |
| Unit Depth | 29 cm |
| Unit Width | 10 cm |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.193 kg |
| Unit Calculated Weight | 0.25 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 10 cm |
| Shipping Box Depth | 29 cm |
| Shipping Box Height | 2.5 cm |
| Shipping Box Weight | 0.25 kg |
| Unit Calculated Volume | 0.000725 cubm |
