Discover Hidden Potential
The ASUS A31 PLUS is a PC case crafted for minimalist mainstream DIY PC builders. It supports a variety of AIO coolers and graphics cards, and easily accommodates motherboards with hidden connector designs, ensuring a clean, clutter-free setup.
- Ready for Hidden Connectors: Built for motherboards featuring hidden connectors to optimize cable management for a clutter-free setup
- Broad Compatibility: The A31 PLUS supports up to 360mm radiators combined with fans of up to 80mm thick, plus graphics cards up to 380mm in length and CPU air coolers with heights of up to 165mm
- Panoramic Design: Tempered glass panels on the front and side offer unobstructed views of the main chamber
- 8° Angled Base: The golden angle combines functionality and aesthetics, enhancing airflow efficiency for better thermal performance while widening the viewing angle for a more immersive experience
General
| Unit Calculated Weight | 10.6 kg |
| Unit Calculated Volume | 0.0918 cubm |
| Units per Shipping Box | 1 |
| Summary | ASUS A31 Plus TG ARGB BLACK. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Side fans installed: 3x 120 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 238 mm, Depth: 511 mm, Height: 435 mm |
| CnCode | 84733080 |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.575 |
| Unit Box Width | 0.515 |
| Case product features | Transparent panel |
| Model name | ASUS A31 PLUS Case |
Design
| Anti-dust filter | Yes |
| Cable management | Yes |
| Form factor | Midi Tower |
| Illumination | Yes |
| Illumination colour | Multi |
| Maximum CPU cooler height | 165 mm |
| Maximum graphics card length | 380 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 7 |
| On/off button | Yes |
| Product colour | Black |
| Side window | Yes |
| Supported motherboard form factors | ATX/micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
Power supply
| Power supply included | No |
| Power supply location | Bottom |

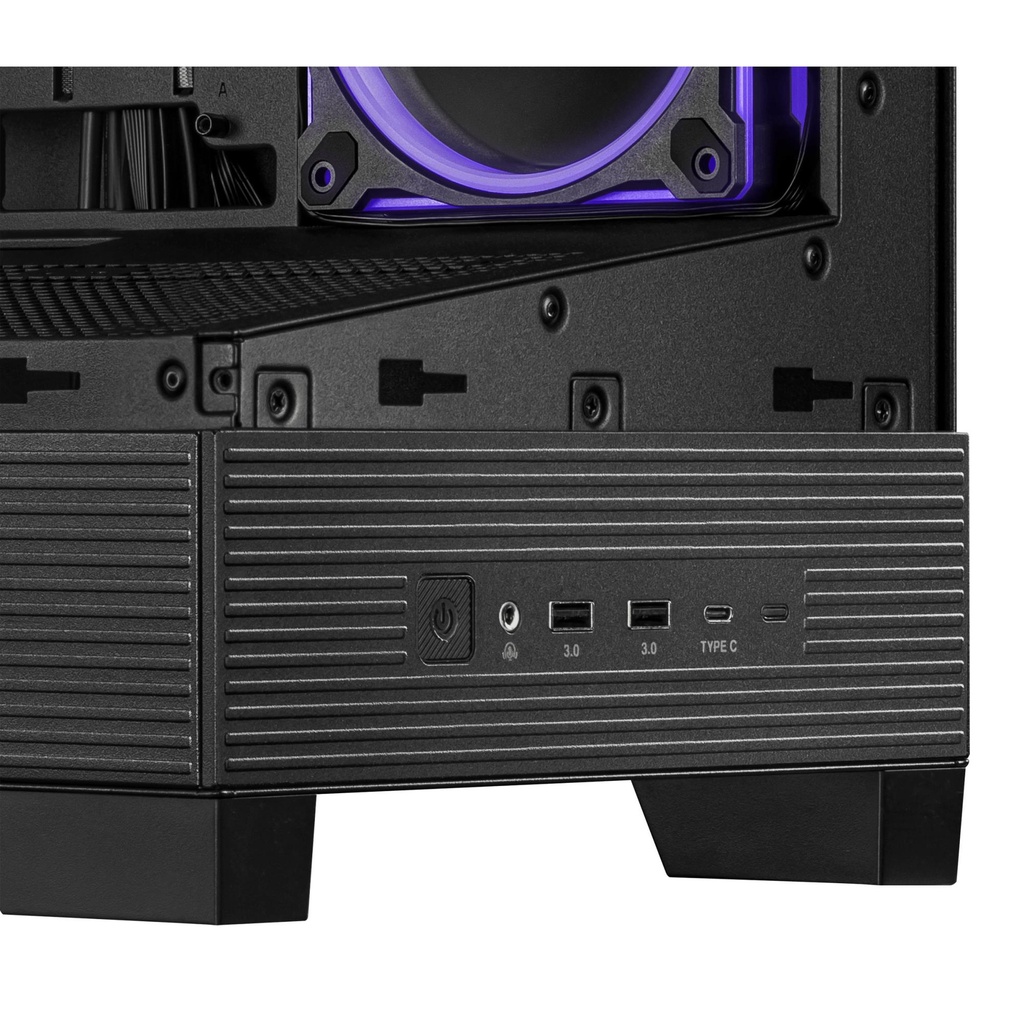

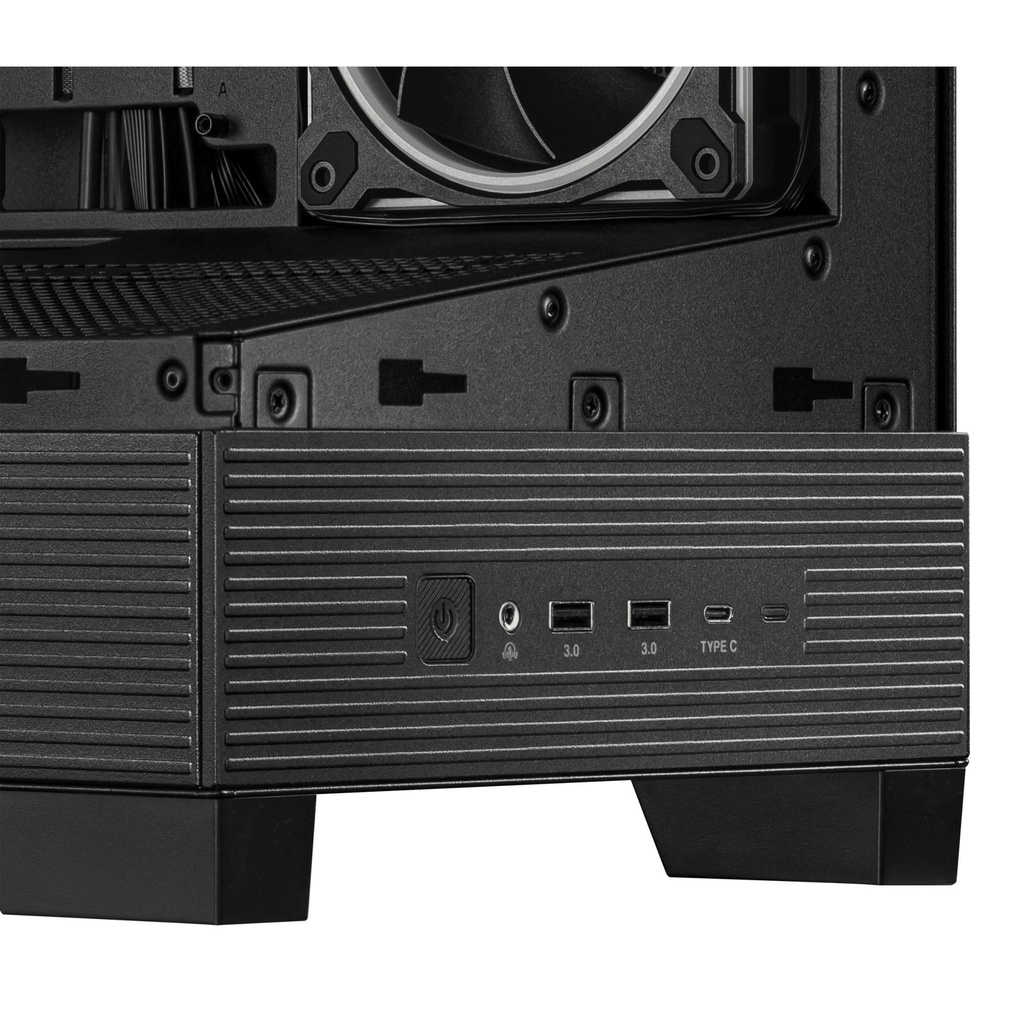

Ports & interfaces
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Cooling
| Front radiator installed | No |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120/140 mm |
| Rear fans installed | 1x 120 mm |
| Rear radiator installed | No |
| Rear radiator sizes supported | 120 mm |

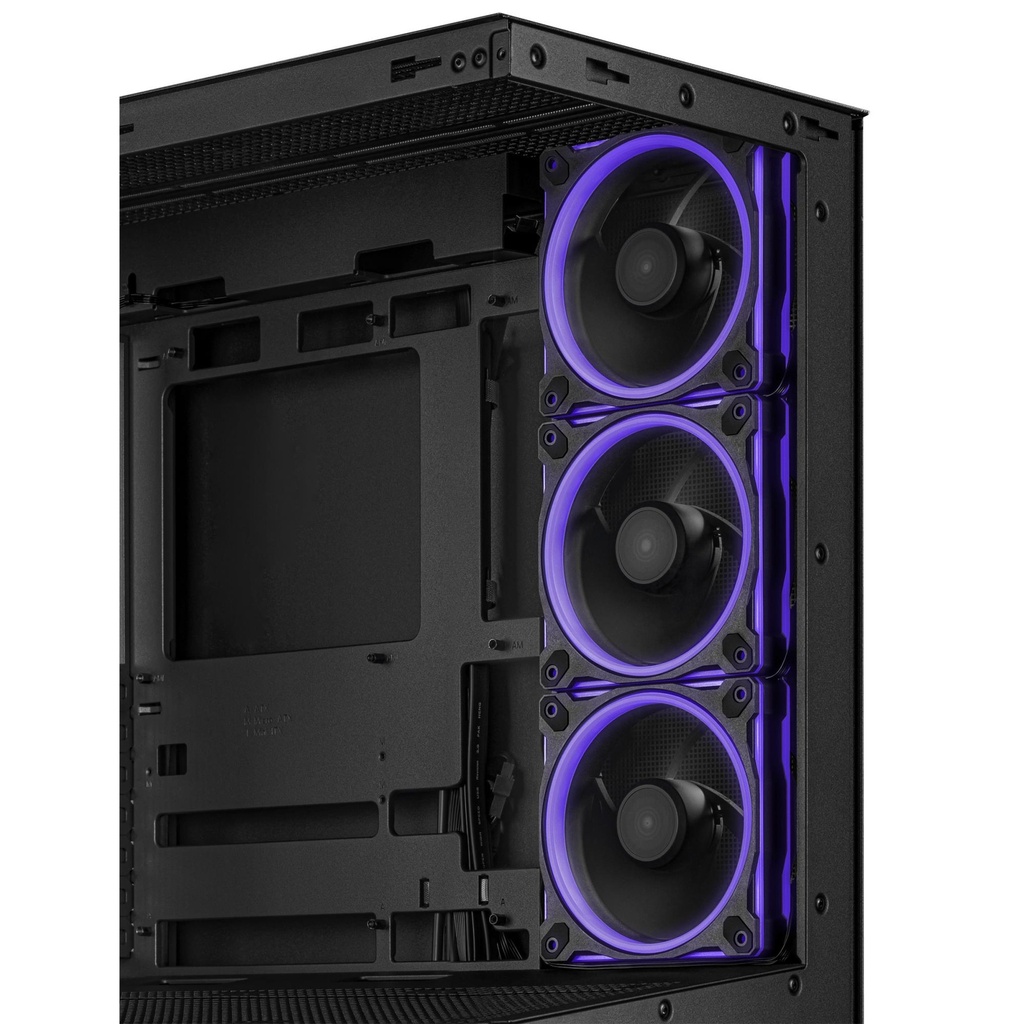

| Side fans installed | 3x 120 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator installed | No |
| Top radiator sizes supported | 120/140/240/280/360 mm |
Storage
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Depth | 511 mm |
| Height | 435 mm |
| Weight | 9100 g |
| Width | 238 mm |
