Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
High Speed M.2 Solution
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Intelligent Cooling Design
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
Fan-Tastic Tuning
ASRock Phantom Gaming Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.
EZ Installation
Toolless SSD Installation
SSD installation is simplified with a quick release latch, making the installation super easy & simple.
General
| Summary | Asrock A620AM-P. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Unit Box Height | 0.265 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.06 |
| Name | MB AMD A620A SAM5 MATX/A620AM-P WIFI ASROCK |
Features
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD A620A |
Processor
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
Memory
| Maximum internal memory | 128 GB |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
Storage controllers
| Supported storage drive interfaces | SATA III,M.2 |
Internal I/O
| RGB LED pin header | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

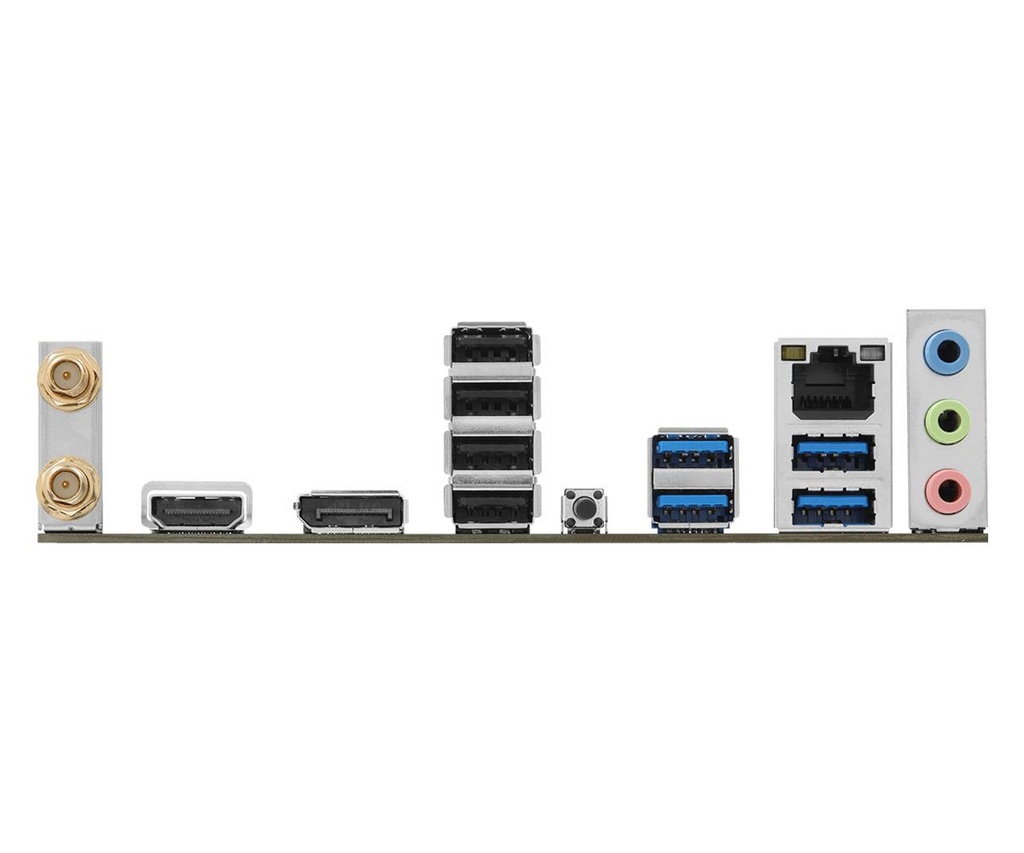

Rear panel I/O ports
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
Network
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Expansion slots
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
BIOS
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
Weight & dimensions
| Depth | 229 mm |
| Width | 244 mm |
Packaging content
| Antenna included | Yes |
| Cables included | SATA |
ELKO Logistics Data
| Unit Height | 26.5 cm |
| Unit Depth | 30 cm |
| Unit Width | 6 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Product Net Weight | 1 kg |
| Unit Calculated Weight | 1.15 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 31 cm |
| Shipping Box Depth | 54.4000015258789 cm |
| Shipping Box Height | 32 cm |
| Shipping Box Weight | 11.5 kg |
| Unit Calculated Volume | 0.005396 cubm |
