ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
General
| Unit Calculated Weight | 1.07 kg |
| Unit Calculated Volume | 0.002767 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |

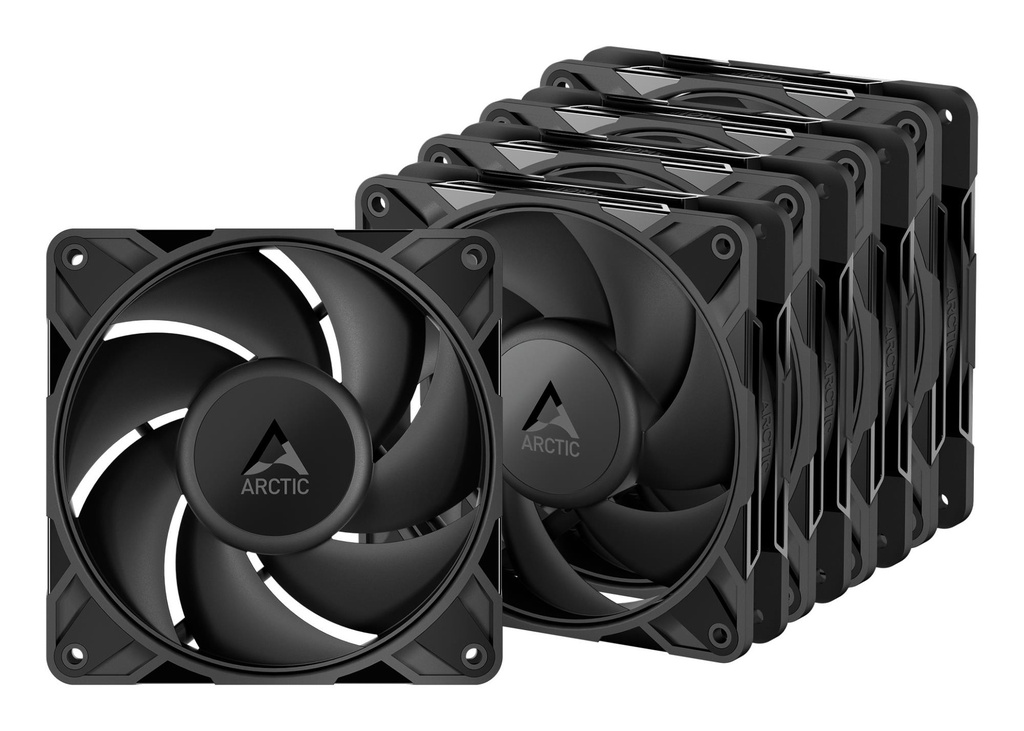

| Summary | ARCTIC Freezer P12 Pro PST - 5 Pack - 120 mm PWM Fan with Cable Splitter. Type: Fan, Fan diameter: 12 cm, Airflow: 131 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black |
| CnCode | 84145925 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.125 |
| Model name | P12 Pro PST |
| Model | ACFAN00307A |
Performance
| Airflow | 131 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 120 mm |
| Fan speed (max) | 3000 RPM |
| Fan speed (min) | 600 RPM |
| Fan static pressure | 6.9 mmH2O |
| Maximum airflow | 77 cfm |
| Operating temperature (T-T) | 0 - 40 °C |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 5 pc(s) |
| Suitable location | Computer case |
| Type | Fan |
Design
| Fan connector | 4-pin + 4-pin |
| Number of fan blades | 7 |
| Product colour | Black |
Power
| Fan current | 0.33 A |
| Fan voltage | 12 V |
| Starting voltage | 3.3 V |
Weight & dimensions
| Cable length | 0.4 m |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan weight | 185 g |
| Package depth | 130 mm |
| Package height | 123 mm |
| Package weight | 1033 g |
| Package width | 127 mm |
Technical details
| Warranty period | 6 year(s) |
Packaging content
| Number of screws | 20 |
| Package type | Hanging box |
| Screws included | Yes |
