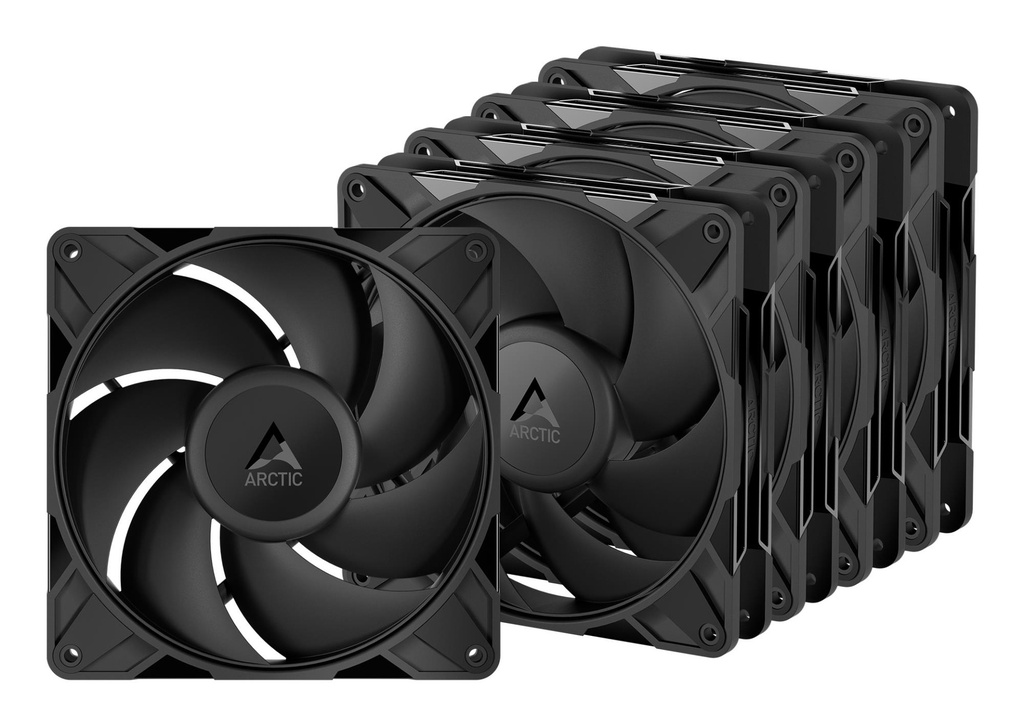

CASE FAN 140MM P14 PRO PST/5PCS ACFAN00319A ARCTIC
General
| Unit Calculated Weight | 1.4 kg |
| Unit Calculated Volume | 0.003771 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Summary | ARCTIC P14 Pro PST - 5 Pack 140 mm PWM Fan with Cable Splitter. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 400 RPM, Rotational speed (max): 2500 RPM, Airflow: 186 m³/h, Maximum air pressure: 5.2 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black |
| CnCode | 84145925 |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.145 |
| Model name | P14 PRO |
| Model | ACFAN00319A |
Performance
| Airflow | 186 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 140 mm |
| Maximum air pressure | 5.2 mmH2O |
| Maximum airflow | 110 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 5 pc(s) |
| Rotational speed (max) | 2500 RPM |
| Rotational speed (min) | 400 RPM |
| Suitable location | Computer case |
| Type | Fan |
Design
| Fan connector | 4-pin + 4-pin |
| Product colour | Black |
Power
| Rated current | 0.35 A |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
Weight & dimensions
| Cable length | 0.48 m |
| Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
| Fan weight | 242 g |
| Package depth | 146 mm |
| Package height | 145 mm |
| Package weight | 1350 g |
| Package width | 145 mm |
Packaging content
| Number of screws | 20 |
| Screws included | Yes |
