ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
General
| Unit Calculated Weight | 0.844 kg |
| Unit Calculated Volume | 0.002223 cubm |
| Units per Shipping Box | 16 |
| Units per Pallet | 0 |

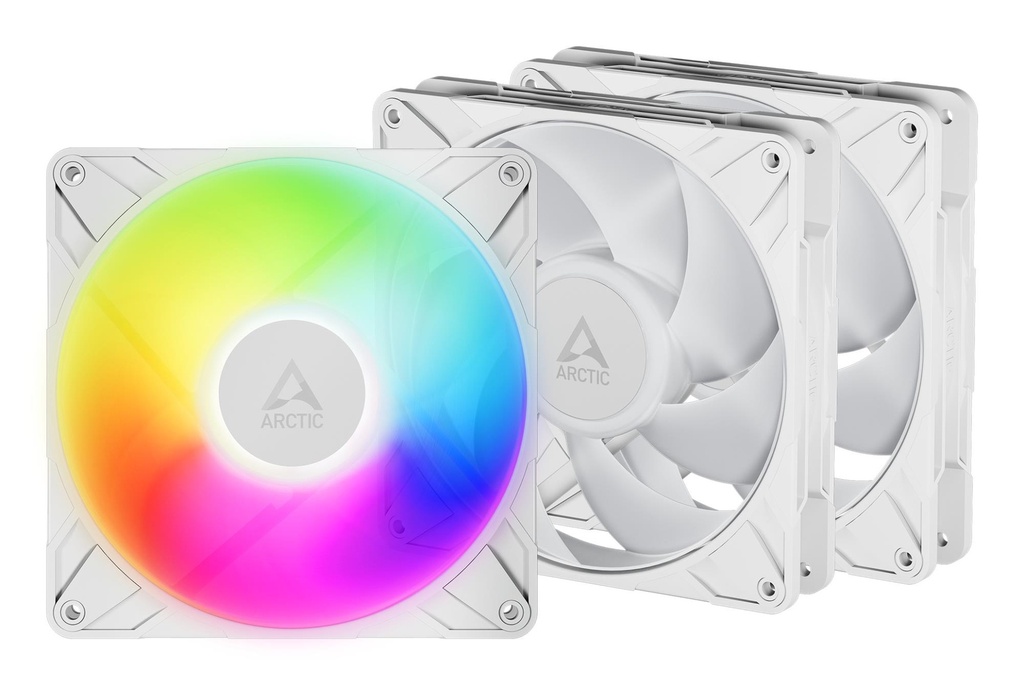

| Summary | ARCTIC Freezer P14 Pro A-RGB (White) - 3 Pack 140 mm A-RGB PWM Fan with Cable Splitter. Type: Fan, Fan diameter: 14 cm, Airflow: 186 m³/h, Maximum air pressure: 5.2 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: White |
| Unit Box Height | 0.087 |
| Unit Box Length | 0.147 |
| Unit Box Width | 0.147 |
| Model name | P14 Pro A-RGB (White) - 3 Pack 140 mm A-RGB PWM Fan with Cable Splitter |
| Model | ACFAN00321A |
Performance
| Airflow | 186 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 140 mm |
| Fan speed (max) | 2500 RPM |
| Fan speed (min) | 400 RPM |
| Maximum air pressure | 5.2 mmH2O |
| Maximum airflow | 110 cfm |
| Operating temperature (T-T) | 0 - 40 °C |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Suitable location | Computer case |
| Type | Fan |
Design
| Fan connector | 4-pin + 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Number of fan blades | 7 |
| Number of fans | 3 fan(s) |
| Number of LEDs | 12 |
| Product colour | White |
Power
| LED current | 0.4 A |
| LED voltage | 5 V |
| Rated current | 0.35 A |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
Weight & dimensions
| Cable length | 0.48 m |
| Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
| Fan weight | 237 g |
Packaging content
| Number of screws | 12 |
| Package type | Box |
| Screws included | Yes |
