ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
General

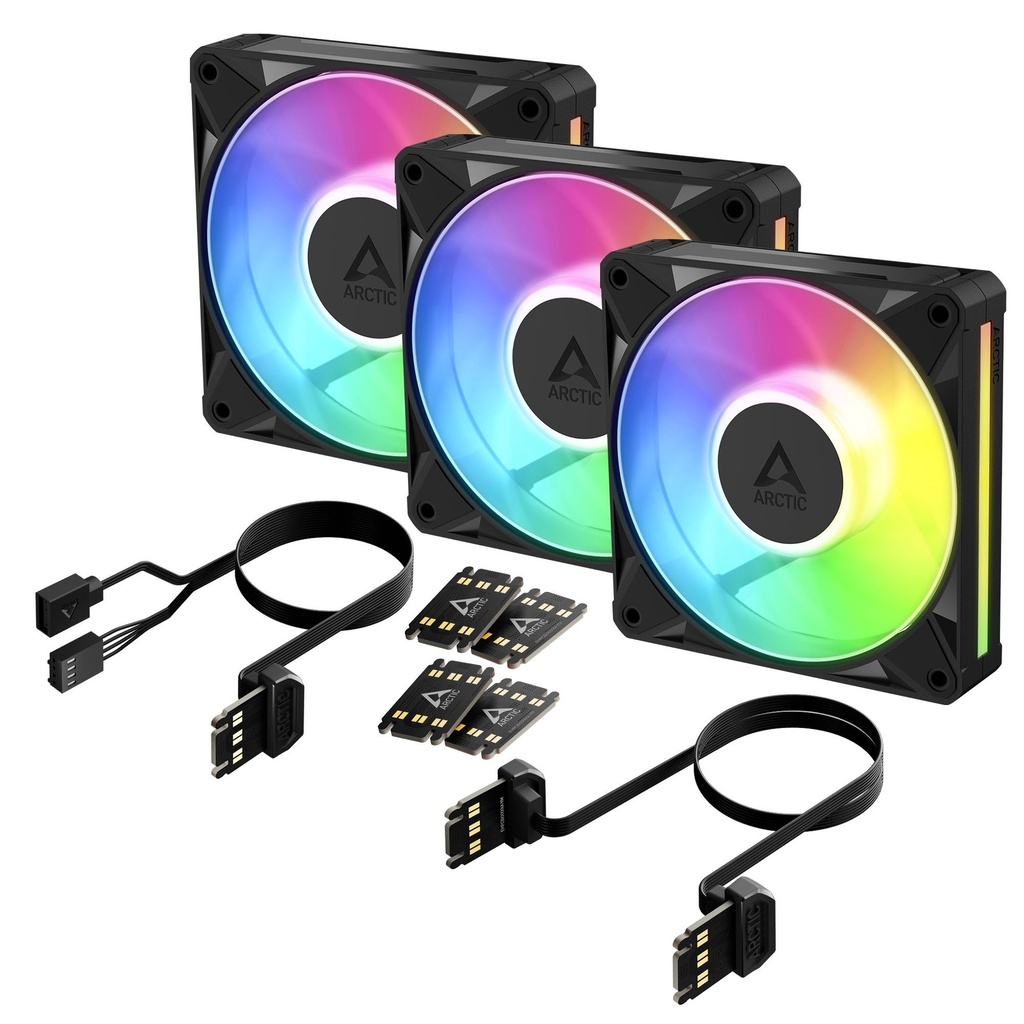

| Summary | ARCTIC BioniX P12 A-RGB - 3 Pack 120 mm PWM Fan with Daisy Chain. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 450 RPM, Rotational speed (max): 3000 RPM, Airflow: 129 m³/h, Maximum air pressure: 6.7 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 120 mm, Depth: 120 mm, Height: 26 mm. Product colour: Black |
| CnCode | 84145925 |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.125 |
| Model name | BioniX P12 A-RGB - 3 Pack 120 mm PWM Fan with Daisy Chain |
Performance
| Airflow | 129 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 120 mm |
| Maximum air pressure | 6.7 mmH2O |
| Maximum airflow | 76 cfm |
| Operating temperature (T-T) | 0 - 40 °C |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 3 pc(s) |
| Rotational speed (max) | 3000 RPM |
| Rotational speed (min) | 450 RPM |
| Suitable location | Computer case |
| Type | Fan |
Design

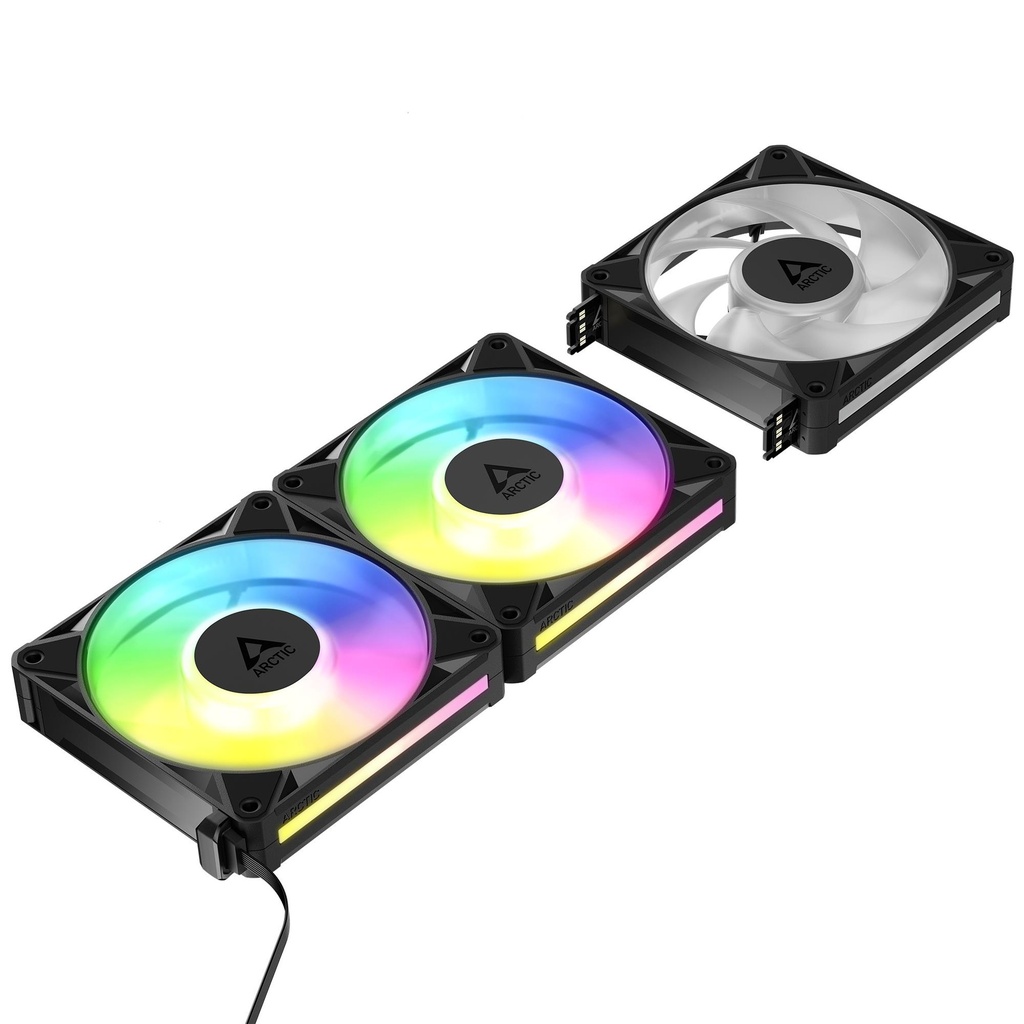

| Daisy chain | Yes |
| Fan connector | 4-pin |
| Illumination colour | Blue/Green/Red |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Number of LEDs | 16 |
| Product colour | Black |
Power
| Fan current | 0.34 A |
| Fan voltage | 12 V |
| LED current | 0.6 A |
| LED voltage | 5 V |
| Starting voltage | 5 V |
Weight & dimensions
| Cable length | 0.4 m |
| Depth | 120 mm |
| Height | 26 mm |
| Package depth | 124 mm |
| Package height | 85 mm |
| Package weight | 715 g |
| Package width | 158 mm |
| Width | 120 mm |
Packaging content
| Number of screws | 12 |
| Package type | Box |
| Screws included | Yes |
ELKO Internal Logistics Data
| Shipping Box Depth | 49.5 cm |
| Shipping Box Height | 28.5 cm |
| Shipping Box Weight | 19.8999996185303 kg |
| Shipping Box Width | 39 cm |
| Unit Calculated Volume | 0.002038 cubm |
ELKO Logistics Data
| Unit Calculated Weight | 0.737 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 27 |
