Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
General
| Unit Calculated Weight | 1.56 kg |
| Unit Calculated Volume | 0.004704 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

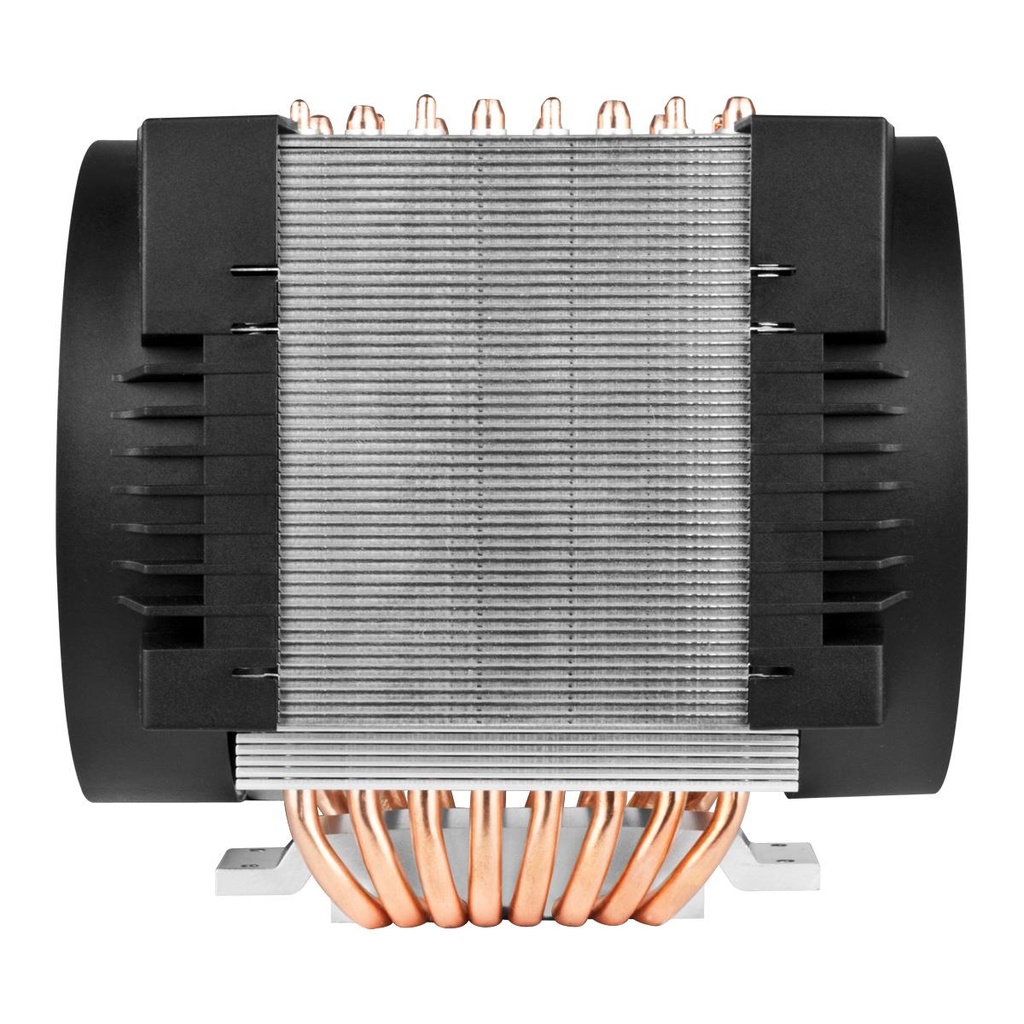

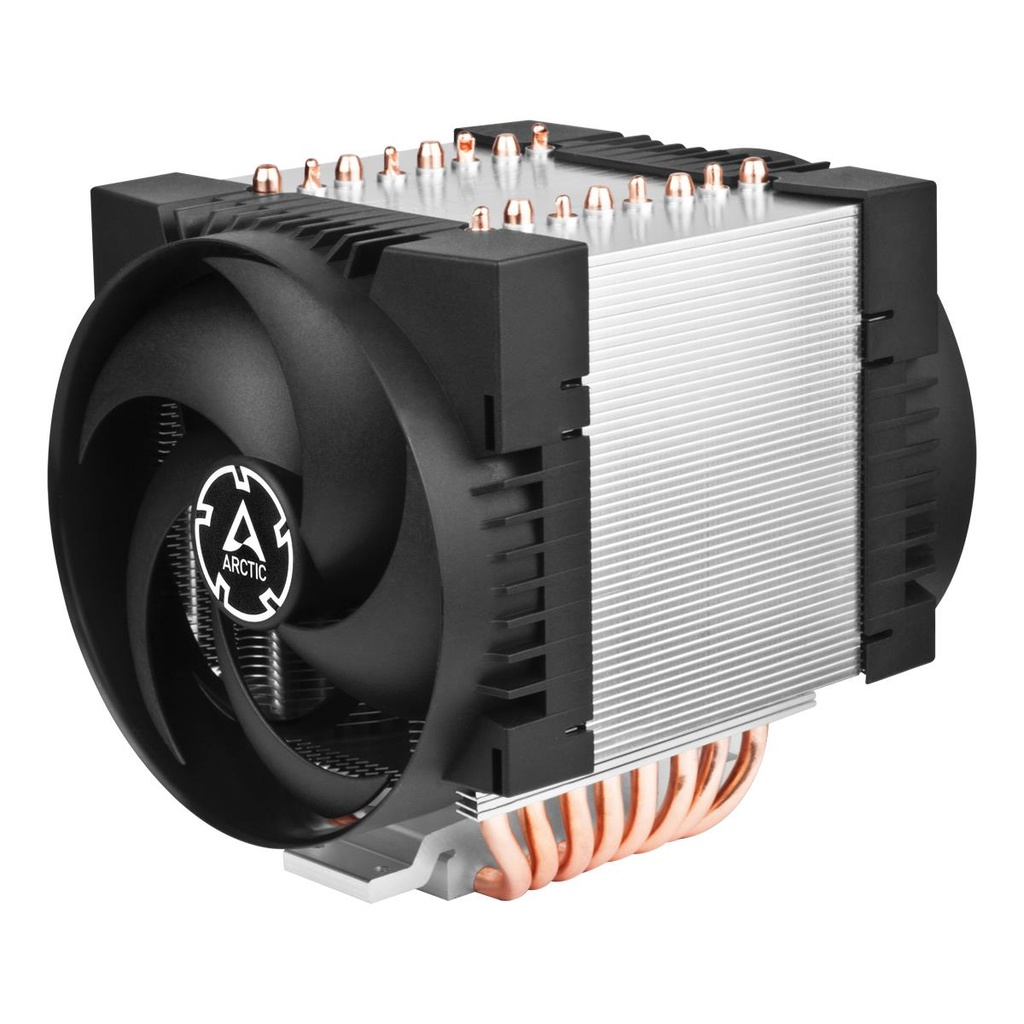

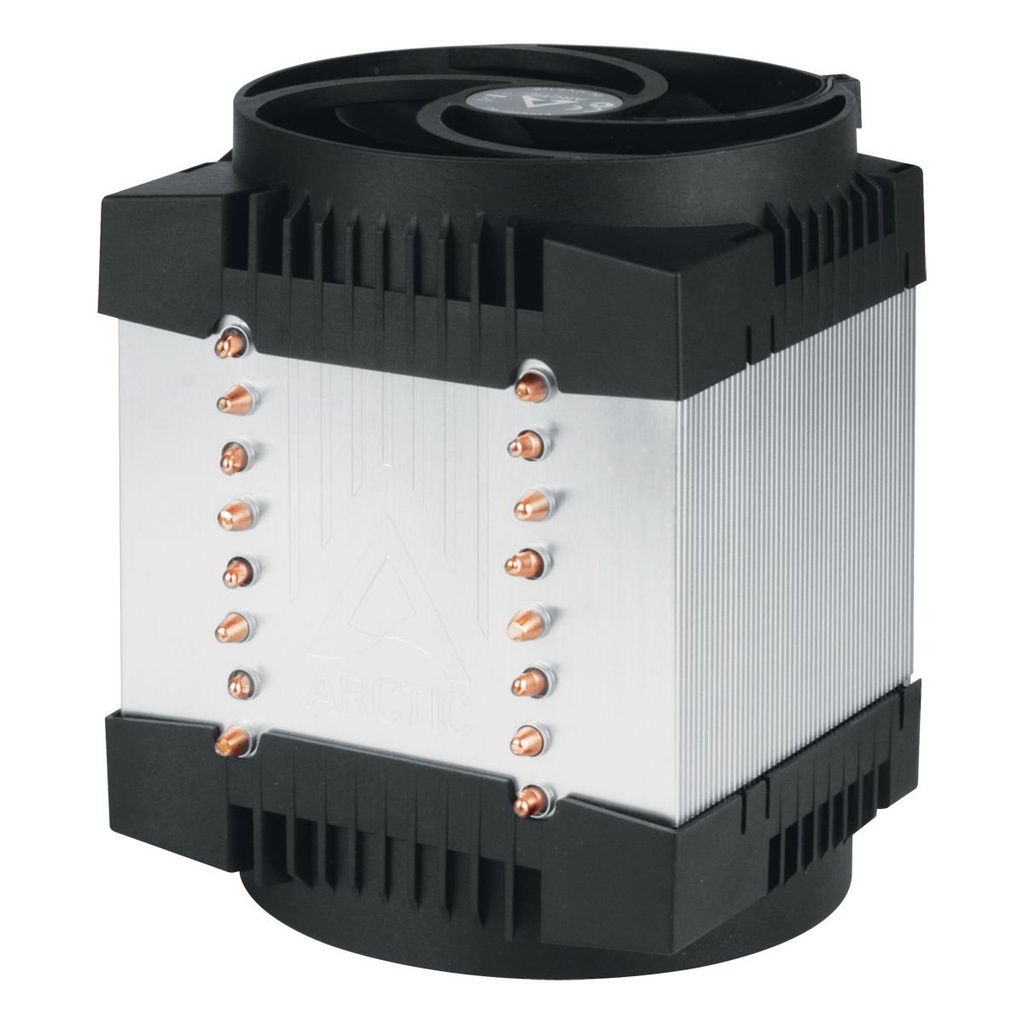

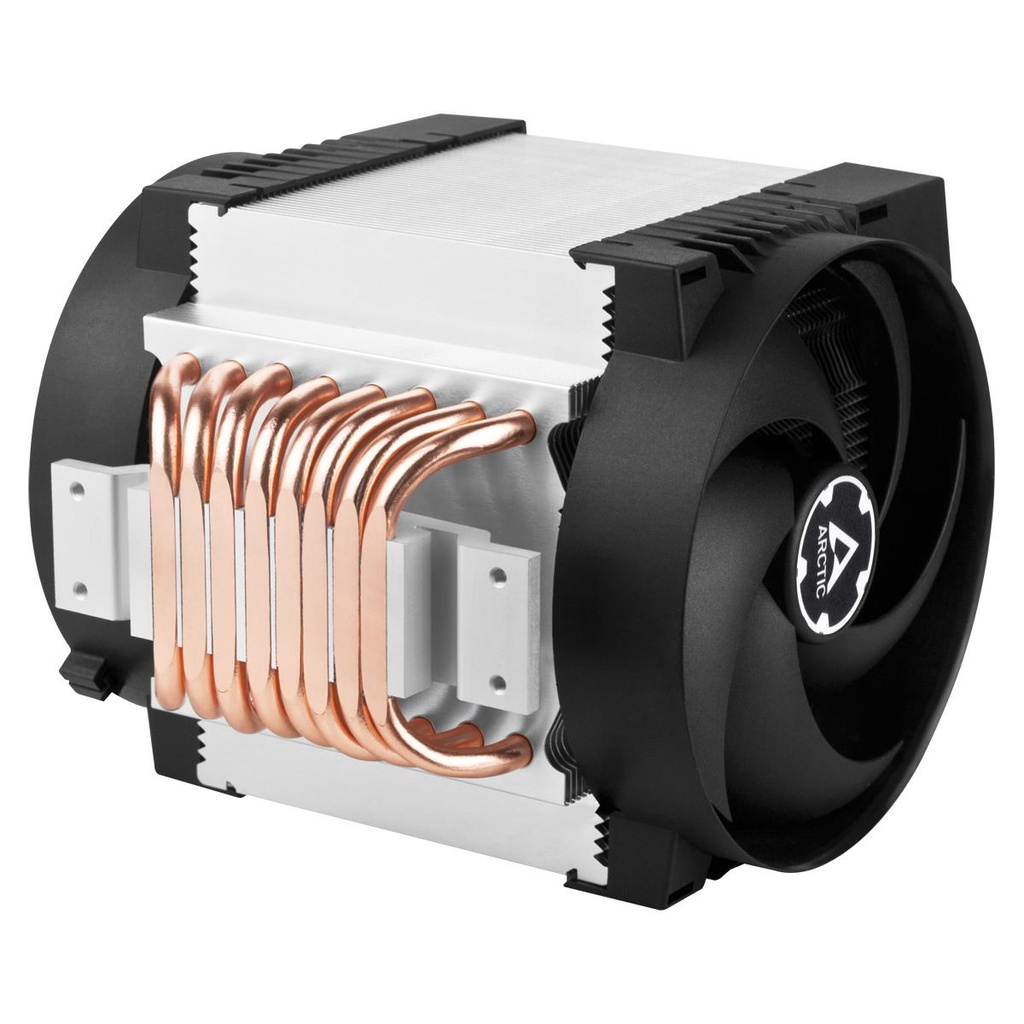

| Summary | ARCTIC Freezer 4U-M Rev. 2 - 4U Server Cooler for AMD, Intel. Type: Air cooler, Fan diameter: 12 cm, Airflow: 122.16 m³/h, Bearing type: Dual ball bearing. Width: 156 mm, Depth: 124 mm, Height: 145 mm. Product colour: Aluminium, Black |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.14 |
Performance
| Airflow | 122.16 m³/h |
| Bearing type | Dual ball bearing |
| Fan diameter | 120 mm |
| Fan noise level (max) | 40 dB |
| Fan speed (max) | 2300 RPM |
| Fan speed (min) | 400 RPM |
| Fan static pressure | 3.3 mmH2O |
| Maximum airflow | 71.9 cfm |
| Operating temperature (T-T) | 0 - 40 °C |
| Suitable location | Processor |
| Supported processor sockets | LGA 4189/LGA 4677 (Socket E)/LGA 4710 (Socket E2)/Socket sTRX4/Socket sWRX8/Socket TR4/Socket TR5/SP6 |
| Type | Air cooler |
Design
| Fan connector | 4-pin |
| Fins material | Aluminium |
| Number of fans | 2 fan(s) |
| Number of fins | 57 |
| Number of heat pipes | 8 |
| Product colour | Aluminium/Black |
| Rack capacity | 4U |
Power
| Fan current | 0.12 A |
| Fan voltage | 12 V |
| Starting voltage | 8 V |
| Thermal Design Power (TDP) | 350 W |
Weight & dimensions
| Cable length | 0.2 m |
| Depth | 124 mm |
| Heat pipes diameter | 6 mm |
| Height | 145 mm |
| Package depth | 211 mm |
| Package height | 141 mm |
| Package weight | 1548 g |
| Package width | 160 mm |
| Weight | 1275 g |
| Width | 156 mm |
Packaging content
| Package type | Box |
