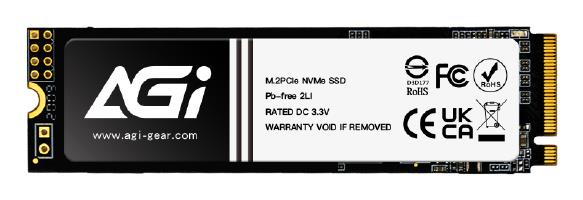

PCIe Gen3x4 SSD
The most universal flash memory currently on the market.
PCIe Gen3x4 Product line
3D NAND SSD is the most universal flash memory currently on the market, taking into account stability, durability and speed.
Where to use
The M.2 PCIe specification can be assembled in the M.2 interface of a new generation computer, and significantly improved the transmission speed by PCIe technology
Speed up 30 times to replace HDD
"This is internal test data, and actual read and write speeds may vary depending on system hardware, testing software, operating system, and capacity."
- PCIe Gen 3 x 4 interface
- Support NVMe 1.3
- Advanced LDPC ECC technology
General
| Unit Calculated Weight | 0.065 kg |
| Unit Calculated Volume | 0.000484 cubm |
| Units per Shipping Box | 100 |
| Units per Pallet | 0 |
| Summary | AGI Technology AI198. SSD capacity: 256 GB, SSD form factor: M.2, Read speed: 1950 MB/s, Write speed: 1200 MB/s, Component for: PC |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.102 |
Features
| Component for | PC |
| ECC | Yes |
| Interface | PCI Express 3.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Mean time between failures (MTBF) | 1600000 h |
| Memory type | 3D TLC NAND |
| NVMe | Yes |
| NVMe version | 1.3 |
| PCI Express interface data lanes | x4 |
| Read speed | 1950 MB/s |
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| TBW rating | 150 |
| Write speed | 1200 MB/s |
Power
| Operating voltage | 3.3 V |
Brand-specific features
| Brand specific technologies | SLC Caching |
Weight & dimensions
| Depth | 80 mm |
| Height | 3.5 mm |
| Weight | 6 g |
| Width | 22 mm |
Packaging data
| Package type | Box |
Operational conditions
| Operating shock | 1500 G |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Other features
| Compliance certificates | BSMI/CE/Federal Communications Commission (FCC)/RoHS/VCCI |
