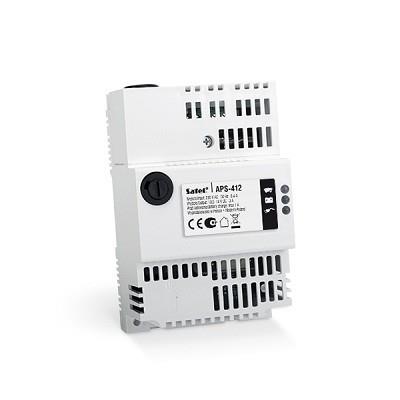

The switching mode power supply designed to power 12 V devices. It is equipped with a dedicated connector for use with SATEL devices. Its design enables it to be easily installed in the SATEL offered enclosure or on the DIN rail.
- EN50131-6 Grade 2 compliant
- high efficiency 12 V DC switching mode power supply, requiring no mains transformer
- 4 A total output current
- short circuit and overload protection
- designed for use with sealed lead-acid batteries
- optionally selected battery charging current
- battery deep discharge protection
- 3 OC outputs for trouble indication
- optical indication of mains, battery and overload status
- audible trouble signal
- dedicated connector for use with new SATEL modules
- DIN 35 mm rail mountable
General
| Unit Box Height | 0.065 |
| Unit Box Length | 0.145 |
| Units per Shipping Box | 1 |
| Unit Box Width | 0.095 |
| Unit Calculated Volume | 0.0008954 cubm |
| Product Net Weight | 0.306 kg |
| Unit Calculated Weight | 0.368 kg |
