WiFi 7 — WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.◇
Ultra-Fast 15 Gbps 8-Stream Tri-Band WiFi
Enjoy smooth 8K streaming, VR/AR, video conferencing, online gaming, and high-speed downloading.
10 Gbps Port for Multi-Gigabit Connectivity
Supports multi-gig internet service plans up to 10 Gbps

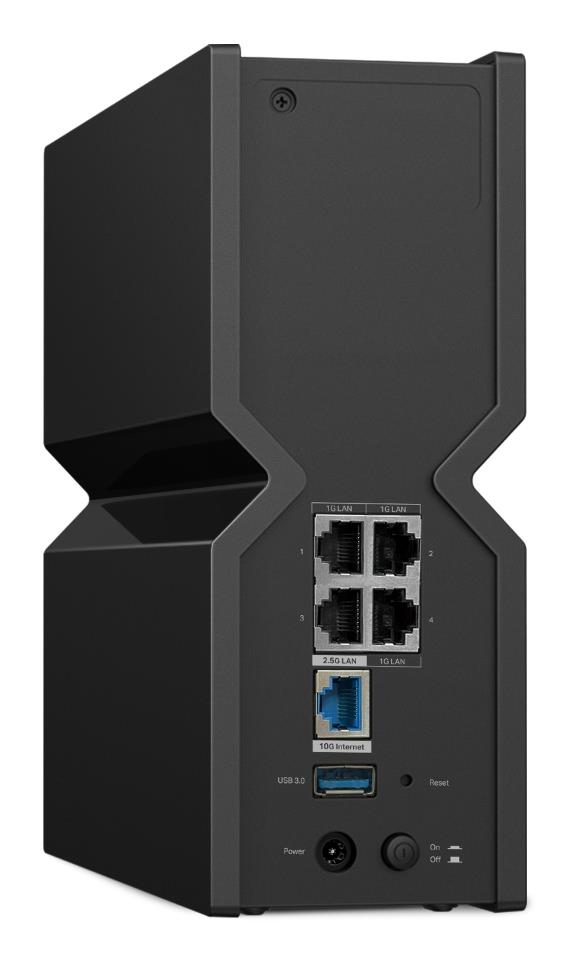

Equipped with one 10 Gbps WAN port, one 2.5 Gbps LAN port, three 1 Gbps LAN ports, and one USB 3.0 port, Archer Archer BE700 provides super-fast connections and data transfers, driving your devices to peak performance.
Create Whole Home Mesh WiFi
Archer BE700 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
Set Up in Minutes
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
HomeShield
Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE700 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
- Blazing-Fast 15 Gbps Tri-Band Wi-Fi: Wi-Fi 7 unleashes the full potential of the 6 GHz band with up to 320 MHz channels and 11.5 Gbps Wi-Fi speeds. Enjoy full access to 8K streaming and high-speed downloading.†◇
- 3× Faster than Wi-Fi 6E: Multi-Link Operation (MLO) enables Archer BE700 to transmit data with Wi-Fi 7 clients across the 6 GHz, 5 GHz and 2.4 GHz bands simultaneously, delivering 3× faster Wi-Fi speeds than Wi-Fi 6/6E routers.‡◇
- 4× Latency with Minimal Buffering: Significantly lower latency than Wi-Fi 6/6E routers enables emerging applications like VR/AR, video conferencing, and online gaming to always run at top performance.△
- Higher Capacity for More Devices: Communicates with multiple devices via 8 streams and tri-band simultaneously. Combined with the powerful CPU, Wi-Fi 7 provides congestion-free signals to your laptop, TV, thermostat, and baby monitor.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.***
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
General
| Unit Calculated Weight | 2.34 kg |
| Unit Calculated Volume | 0.01173 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | TP-Link Archer BE700. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 15000 Mbit/s. Ethernet LAN interface type: Multi-Gigabit Ethernet, Ethernet LAN data rates: 25000 Mbit/s, Networking standards: IEEE 802.1x. Fiber optic connector: SFP+. Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| CnCode | 85176200 |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.24 |
| Model name | ARCHER BE700 |
Wireless LAN features
| Modulation | 4096-QAM/OFDMA |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (max) | 15000 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| WLAN data transfer rate (third band) | 11528 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Built-in FTP server | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 25000 Mbit/s |
| Ethernet LAN interface type | Multi-Gigabit Ethernet |
| Media server | Yes |
| Networking standards | IEEE 802.1x |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (6 GHz) | 1 |
| Port forwarding | Yes |
| Port triggering | Yes |
| VPN server | OpenVPN, PPTP, L2TP, WireGuard |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| Fiber optic connector | SFP+ |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
Management features
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Guest access | Yes |
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Security algorithms | WPA/WPA2/WPA2-Enterprise/WPA3/WPA-Enterprise |
| Stateful Packet Inspection (SPI) | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Universal Plug and Play (UPnP) | Yes |
Design
| Built-in display | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Certificates
| Certification | CE, FCC, RoHS |
Antenna
| Antenna design | Internal |
| Antennas quantity | 6 |
Features
| Number of simultaneously connected devices (max) | 100 |
Power
| Output current | 3.3 A |
| Output voltage | 12 V |
| Power source type | AC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
System requirements
| Browser supported | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ |
Weight & dimensions
| Depth | 231.7 mm |
| Height | 203 mm |
| Width | 76 mm |
Packaging data
| Number of products included | 1 pc(s) |
| Package type | Box |
