- Ultra-fast Dual Band Wi-Fi 7: Boost network speeds up to 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†

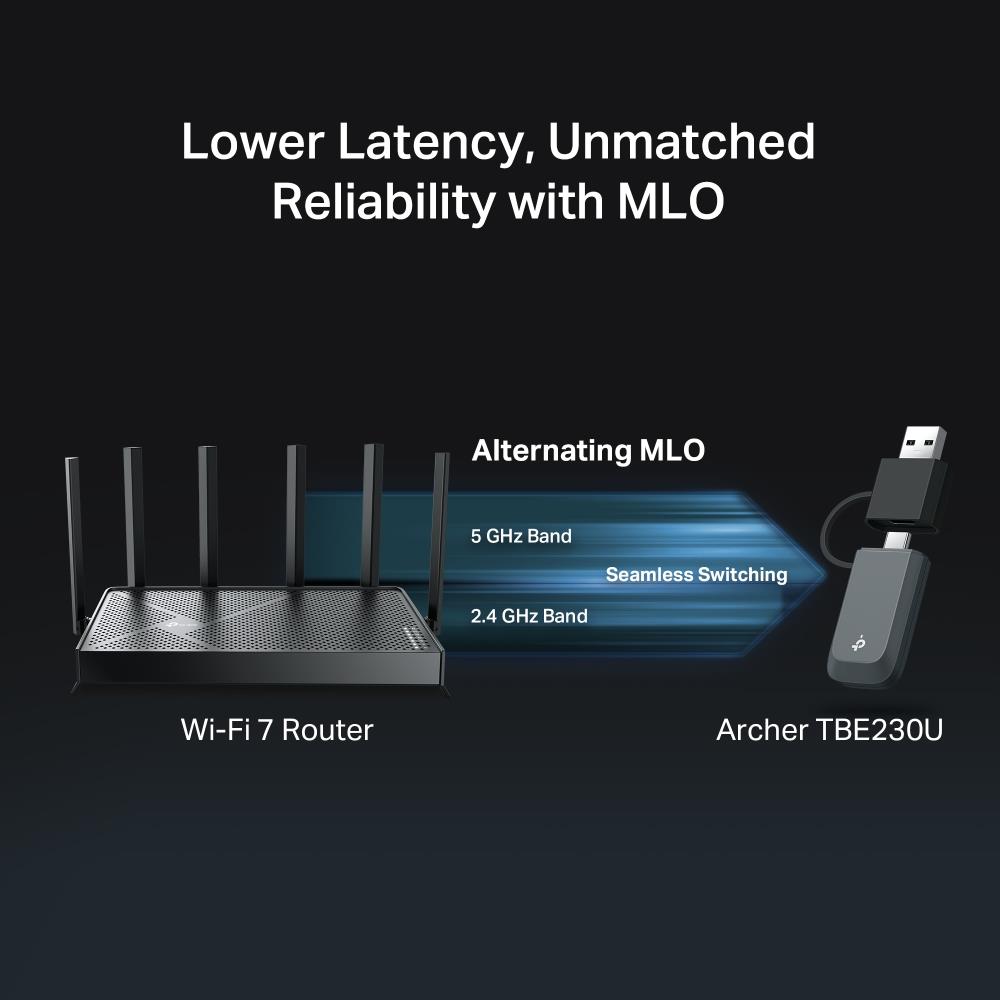

- Boosted Throughput, Unmatched Reliability: Wi-Fi 7's Multi-Link Operation delivers reduced latency and a lag-free experience for gaming and streaming.‡

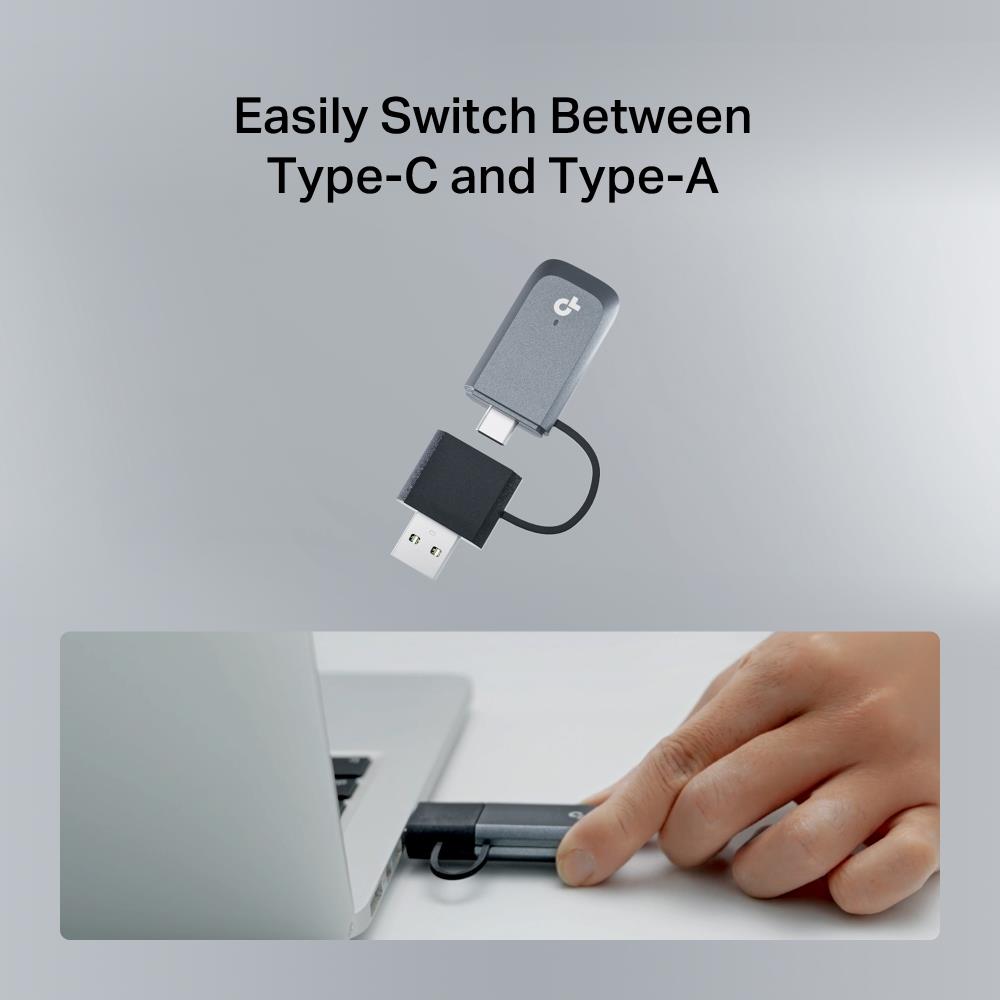

- Ultimate Flexibility: Switch effortlessly between USB-C and USB-A so you can enjoy seamless connectivity and the ultimate flexibility without interface constraints.

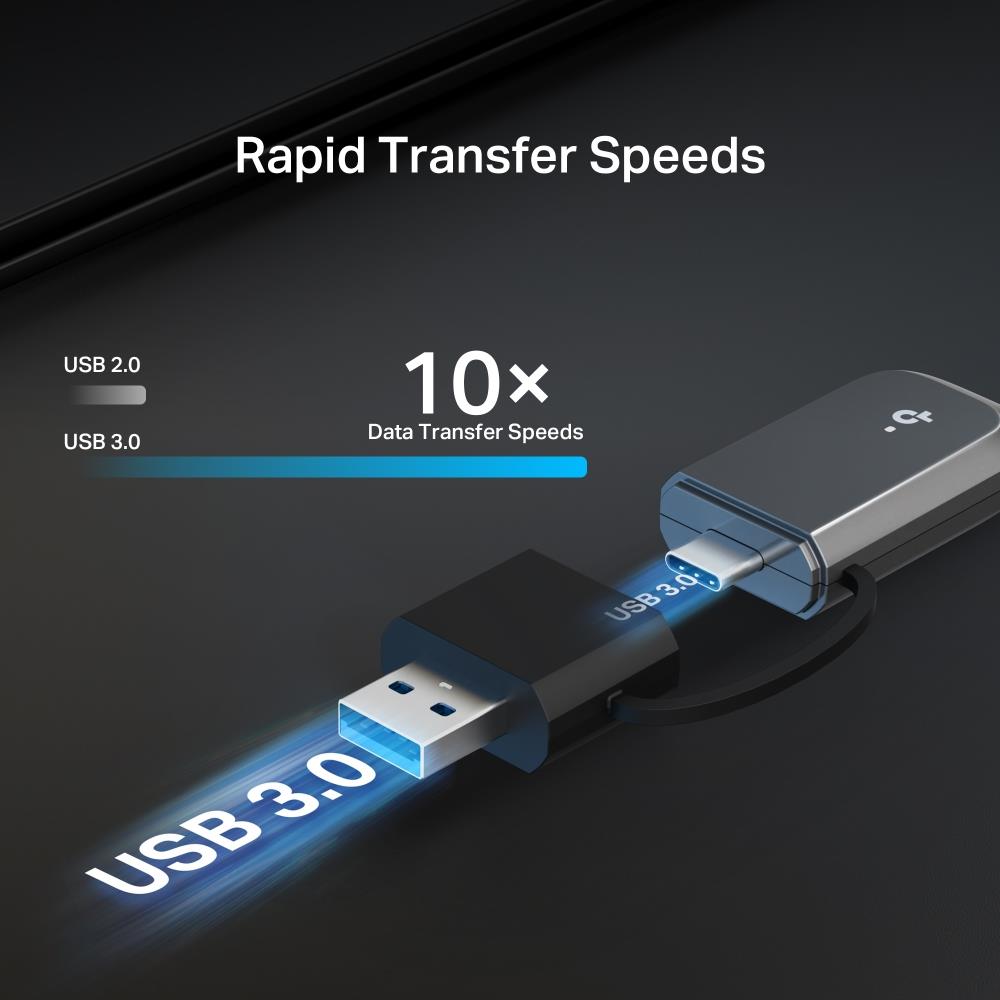

- SuperSpeed USB 3.0: USB 3.0 offers 10× faster speeds, shorter response times, and improved power management compared to USB 2.0.§
- Enhanced Data Security: The latest security enhancement, WPA3, provides enhanced protection for personal password safety.△
- Plug & Play Simplicity: CD-Free installation for Win 10/11, ensuring effortless setup.☆
- Supported Operating System: Windows 10/11(64-bit).☆
General
| Summary | TP-Link ARCHER TBE230U. Connectivity technology: Wired, Host interface: USB Type-A/USB Type-C, Interface: Ethernet. Maximum data transfer rate: 2882 Mbit/s, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Grey |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.13 |
Ports & interfaces
| Connectivity technology | Wired |
| Host interface | USB Type-A/USB Type-C |
| Interface | Ethernet |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Maximum data transfer rate | 2882 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n |
| Security algorithms | WPA/WPA2/WPA2-PSK/WPA3/WPA-PSK |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
Design
| Antenna | Yes |
| Antenna design | Internal |
| Certification | FCC, CE, RoHS |
| Component for | PC/Laptop |
| Product colour | Black/Grey |
System requirements
| Windows operating systems supported | Windows 10/Windows 11 |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 24 mm |
| Height | 10.8 mm |
| Width | 72 mm |
Packaging content
| Quick installation guide | Yes |
ELKO Internal Logistics Data
| Shipping Box Depth | 13.5 cm |
| Shipping Box Height | 3 cm |
| Shipping Box Weight | 0.0799999982118607 kg |
| Shipping Box Width | 13 cm |
| Unit Calculated Volume | 0.0022 cubm |
ELKO Logistics Data
| Unit Calculated Weight | 0.6 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
