Enjoy 4G+ Speed Sharing Everywhere
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

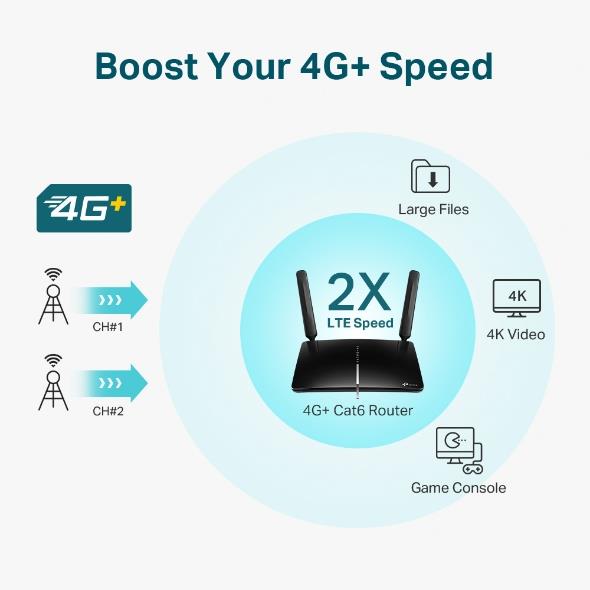

Boost Your 4G+ Speed
Supports the 4G+ Cat6, which used Carrier Aggregation technology to boost the data speeds of up to 300 Mbps. Plug your SIM card and enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming.

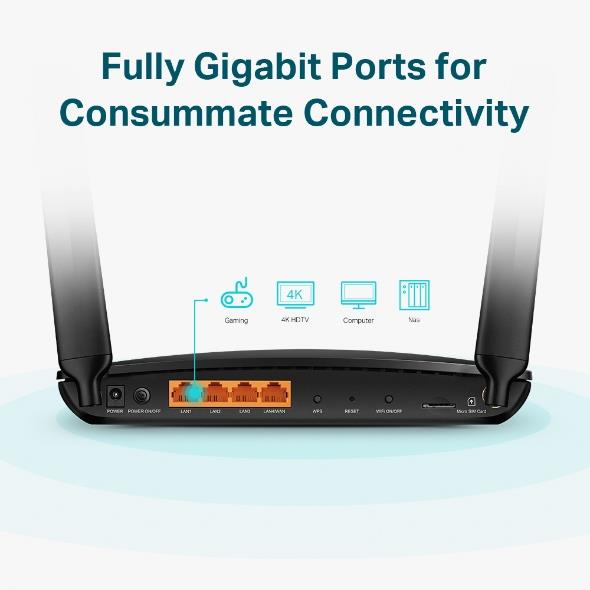

Fully Gigabit Ports for Consummate Connectivity
Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.
Got SIM Card?
Then Plug and Play!
With an integrated 4G+ modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G+ network has never been easier.
Reliable Access for Up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Easy Setup and Management
Set up the Archer MR600 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
- TP-Link's First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*
- Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

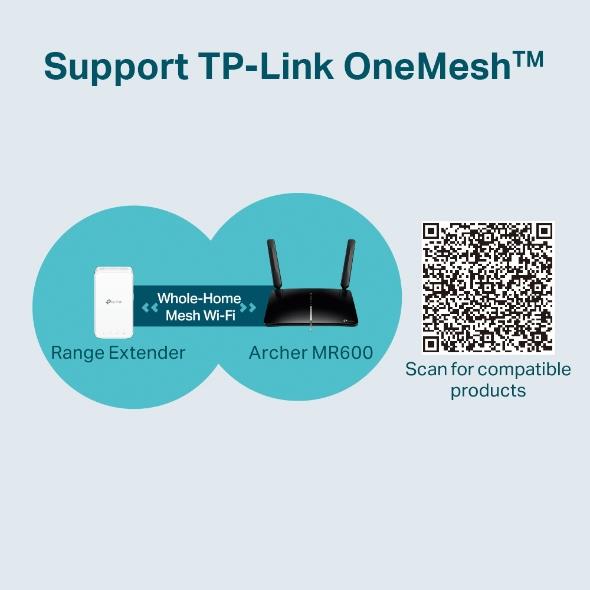

- Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
General
| Unit Calculated Weight | 0.905 kg |
| Unit Calculated Volume | 0.005789 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | TP-Link 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Mobile network generation: 4G, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: Domain Filter, IP, MAC Address Binding |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.31 |
| Unit Box Width | 0.225 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 867 Mbit/s |
| WLAN data transfer rate (max) | 867 Mbit/s |
| WLAN data transfer rate (second band) | 300 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Port forwarding | Yes |
| Port triggering | Yes |
| Receiver sensitivity | 5 GHz: 11a 54M: -74 dBm 11ac HT20: -66 dBm 11ac HT40: -63 dBm 11ac HT80 : -59 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm |
| VPN support | PPTP VPN, IPSec VPN , OpenVPN |
Mobile network
| 3G | Yes |
| 3G bands supported | 2100/850/900 MHz |
| 3G standards | HSPA/HSPA+/UMTS |
| 4G | Yes |
| 4G bands supported | 1800/2100/2300/2500/2600/700/800/850/900 MHz |
| 4G standard | LTE |
| 5G | No |
| Dual SIM support | No |
| Mobile network generation | 4G |
| SIM card type | MicroSIM |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Memory card slot(s) | No |
| USB port | No |
Management features
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Firewall security | Domain Filter, IP, MAC Address Binding |
| Guest access | Yes |
| Parental control | Yes |
| Security algorithms | 128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
| Stateful Packet Inspection (SPI) | Yes |
| URL filtering | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Routing protocols | IP |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
Design
| LED indicators | LAN,Power,WLAN |
| Product colour | Black |
| Product type | Tabletop router |
| Wall mountable | No |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Certificates
| Certification | CE, RoHS |
Antenna
| Antenna design | External |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power source type | AC,DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Depth | 160 mm |
| Height | 37 mm |
| Width | 229 mm |
Packaging data
| Number of products included | 1 pc(s) |
| Package depth | 223 mm |
| Package height | 70 mm |
| Package type | Box |
| Package width | 307 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
