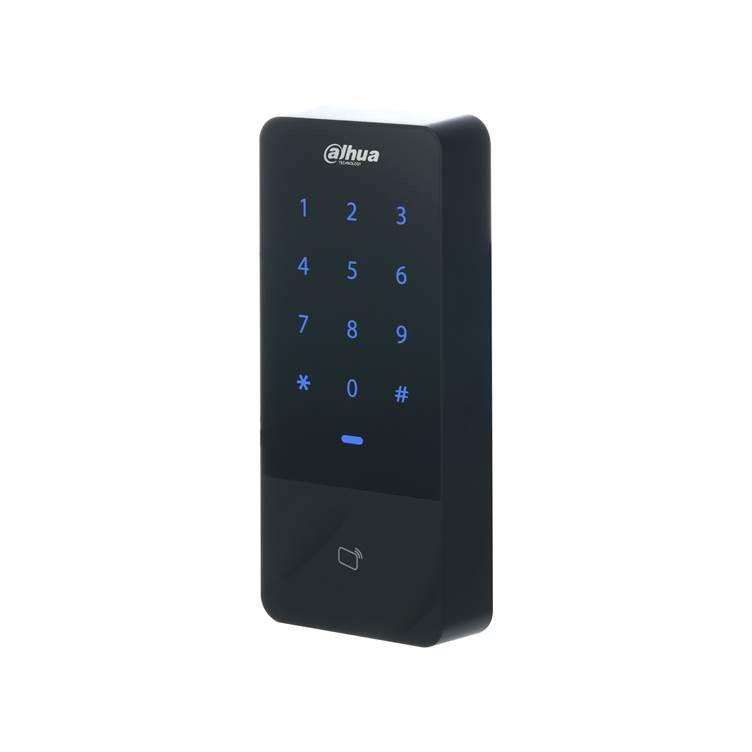

Dahua ID Card Access Standalone
> Made from PC materials and composite panels.
> Supports 30,000 users, 30,000 passwords, 30,000 cards, and 60,000 records.
> Offers multiple unlock methods including card and password. You can also combine them to create your own personal unlock methods.
> Provides touch keypad with backlighting.
> Contactless card reading for ID cards (125 KHz, EM-Marine RFID).
> Supports RS-485 communication and Wiegand communication.
> Buzzer and indicator light.
> Tamper alarm.
> Controller mode and card reader mode.
> Offers multiple types of alarms such as duress, intrusion, unlock timeout, and excessive use of illegal card.
> Cards can be issued to many types of users such as normal, VIP, patrol, guest, and blocklist users.
> Supplies power to 1 lock (12 V, 1 A or lower) or 1 card reader (12 V, 200 mA or lower).
> Online update.
> TCP/IP connection and auto registration.
> IP66 rated.
> Ideal for use outdoors.
> Surface mount.
> Compatible with the platforms of SmartPSS Lite and DSS Pro.
General
| Unit Box Height | 0.055 |
| Dimensions | 142 × 62 × 23 mm |
| Unit Box Length | 0.195 |
| Units per Shipping Box | 1 |
| Unit Box Width | 0.13 |
| Unit Calculated Volume | 0.001394 cubm |
| Product Net Weight | 0.22 kg |
| Unit Calculated Weight | 0.29 kg |
