LANCER BLADE DDR5
SLEEK EFFICIENCY, COMPACT POWER

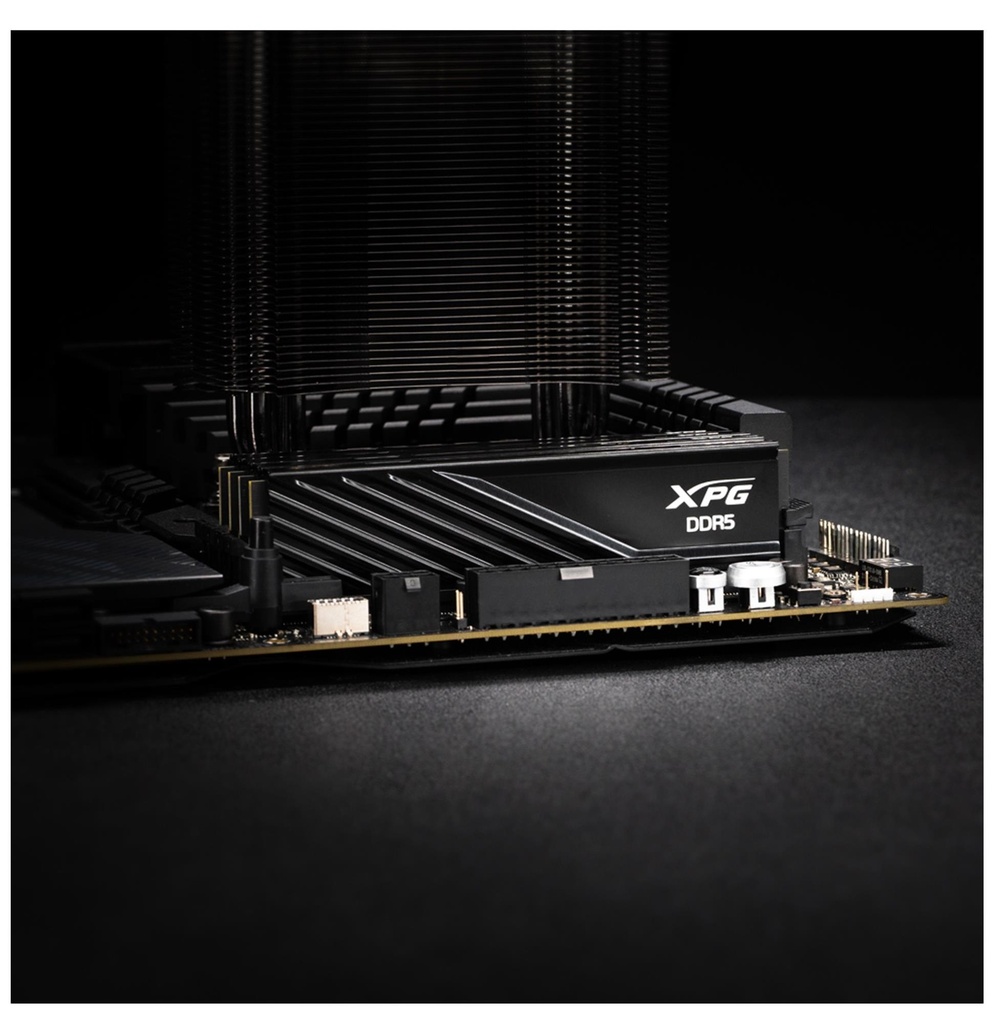

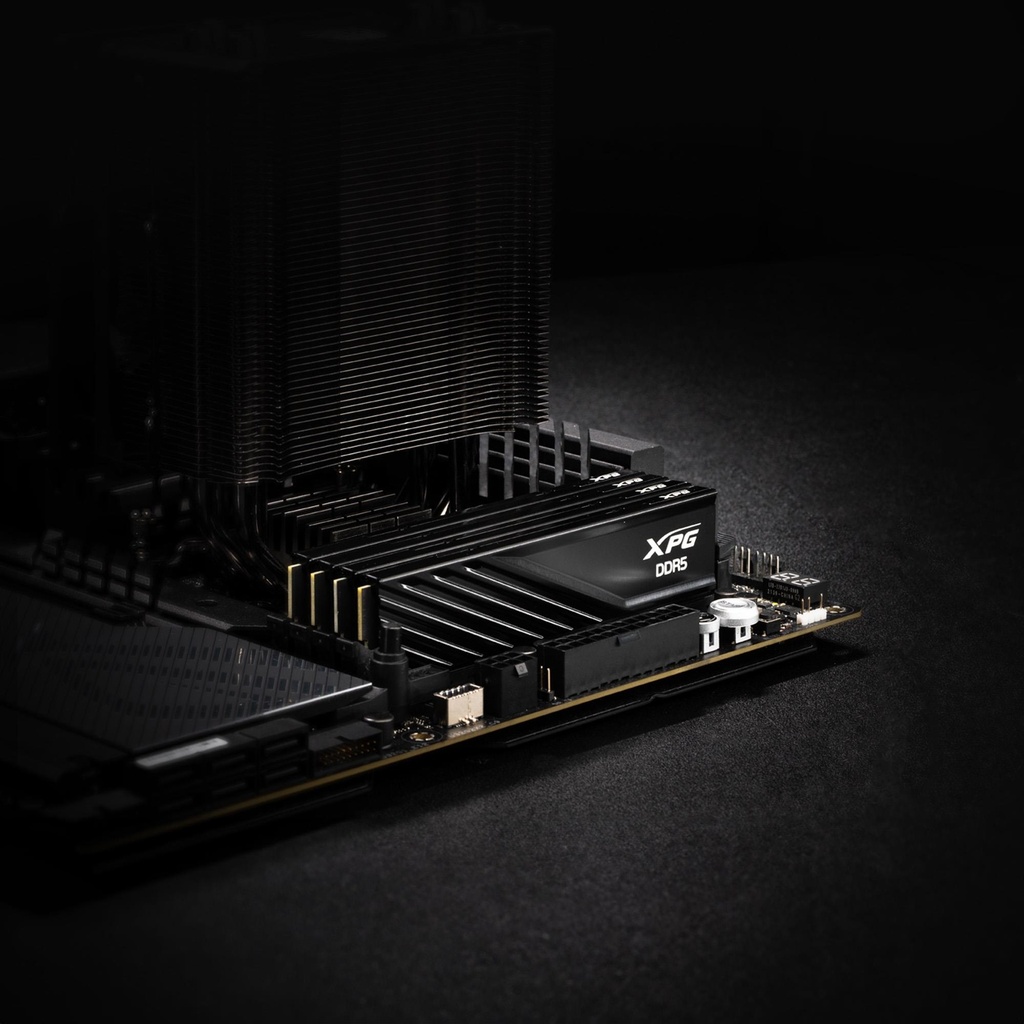

Compact Low-Profile Heatsink Design
The LANCER BLADE boasts a low-profile heatsink that fits perfectly in smaller PC cases and avoids interference with tower CPU coolers. Its sleek geometric lines add versatility and visual appeal to any case design.
Enhanced Power Management
The XPG LANCER BLADE DDR5 features a built-in Power Management IC (PMIC) that enhance power supply stability. It's lower operating voltage also make LANCER more power-efficient than DDR4.
Stability and Reliability
With On-die error correcting code (ECC), this DDR5 memory module can correct errors in real-time to provide increased stability and reliability.
Made with High-Quality Materials
High-quality ICs and PCBs ensure uncompromised performance and reliable overclocking, ideal for discerning gamers and overclockers.
AMD EXPO
Support for AMD EXPO (EXtended Profiles for Overclocking) and compatibility with the latest platforms for reliability and stability.
Overclocking Made Easy
With support for Intel XMP 3.0, get overclocking easily without the need to hassle with BIOS settings. There is no need to repeatedly adjust and fine-tune overclocking parameters.
- Compact Low-Profile Heatsink Design
- Enhanced Power Management
- Stability and Reliability
- Made with High-Quality Materials
General
| Summary | XPG LANCER BLADE DDR5. Component for: PC, Internal memory: 16 GB, Memory layout (modules x size): 2 x 8 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black |
| Unit Box Height | 0.015 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.14 |
| Name | MEMORY DIMM 16GB DDR5-5600 K2/AX5U5600C468G-DTLABBK ADATA |
Features
| Cooling type | Heatsink |
| Product colour | Black |
| AMD Extended Profiles for Overclocking (EXPO) | Yes |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| Intel Extreme Memory Profile (XMP) | Yes |
| ECC | Yes |
| Memory layout (modules x size) | 2 x 8 GB |
| Component for | PC |
| Memory form factor | 288-pin DIMM |
| Memory voltage | 1.1/1.4 V |
| CAS latency | 46 |
| Memory clock speed | 5600 MHz |
| Buffered memory type | Unregistered (unbuffered) |
| Internal memory | 16 GB |
| Internal memory type | DDR5 |
Operational conditions
| Storage temperature (T-T) | -20 - 65 °C |
| Operating temperature (T-T) | 0 - 85 °C |
Weight & dimensions
| Weight | 32.9 g |
| Height | 7.8 mm |
| Depth | 133.35 mm |
| Width | 33.8 mm |
Packaging data
| Package type | Blister |
| Package weight | 106.3 g |
| Package height | 12.2 mm |
| Package depth | 170 mm |
| Package width | 141 mm |
