- Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
- Killer 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
General
| Unit Calculated Weight | 1.97 kg |
| Unit Calculated Volume | 0.009768 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Asrock B650 PG Lightning. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA II, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) |
| Unit Box Height | 0.3 |
| Unit Box Length | 0.075 |
| Unit Box Width | 0.355 |

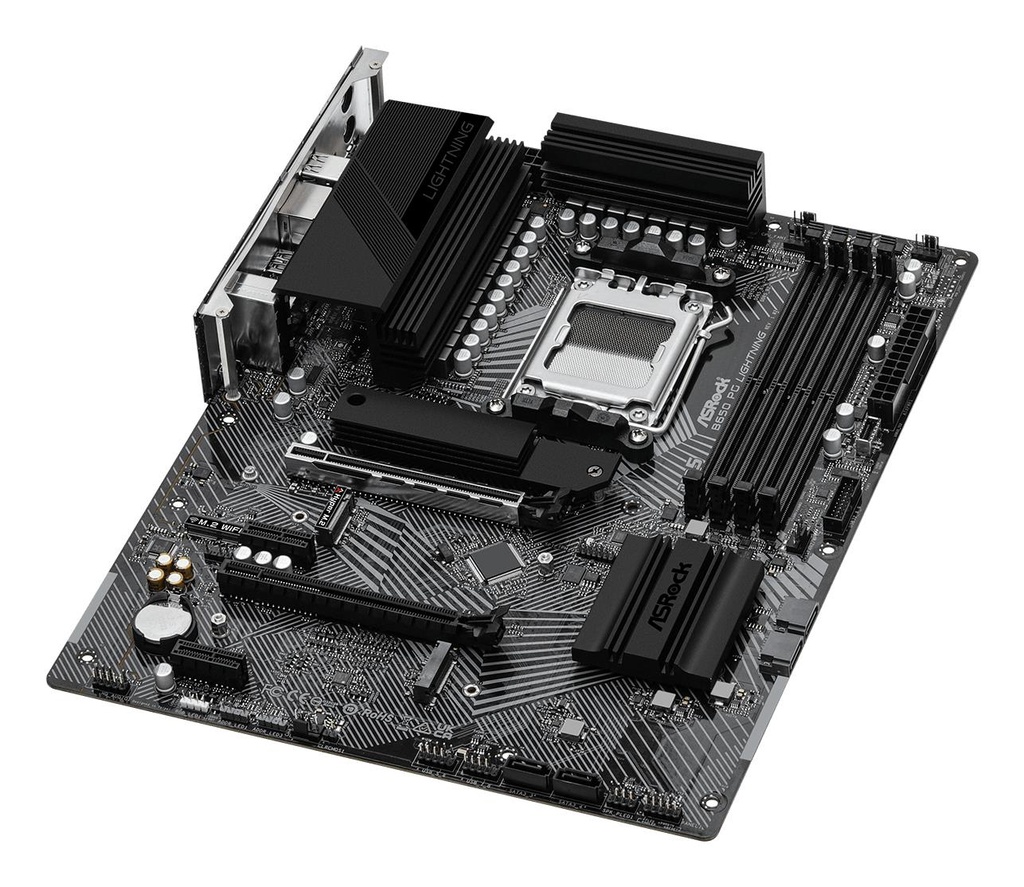

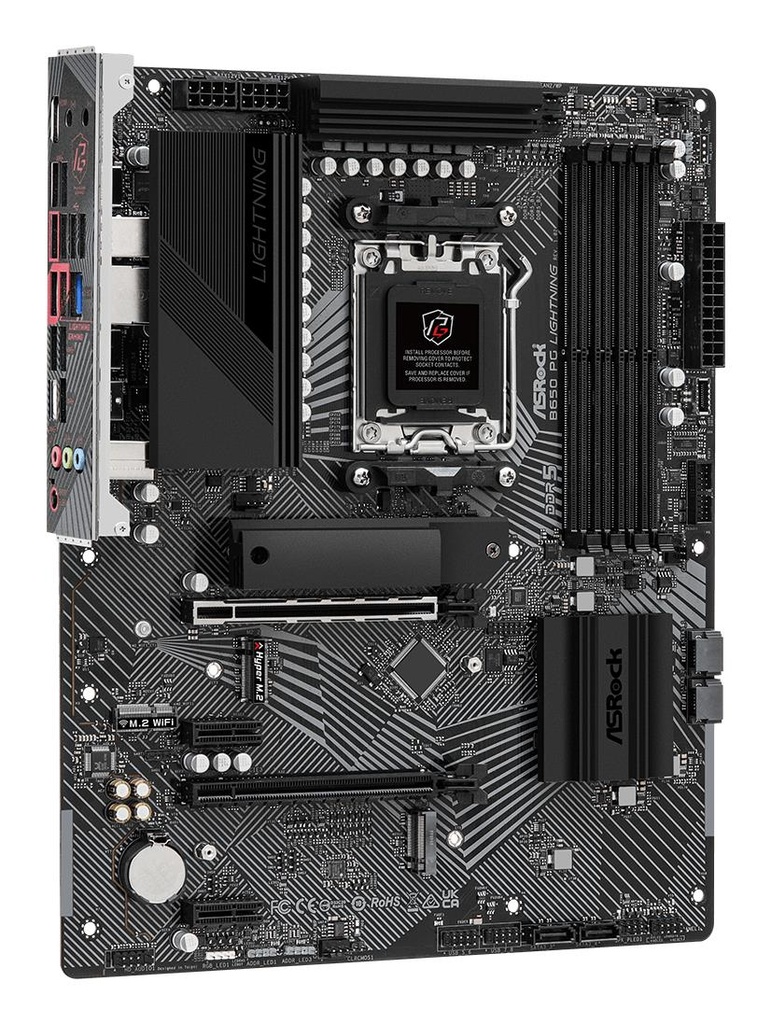

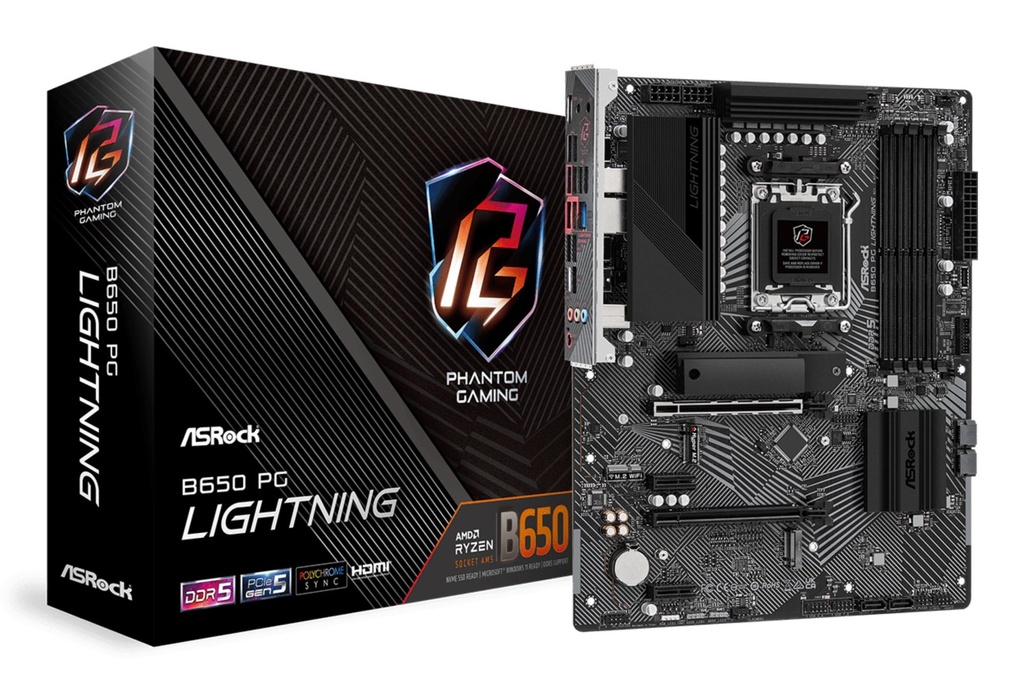

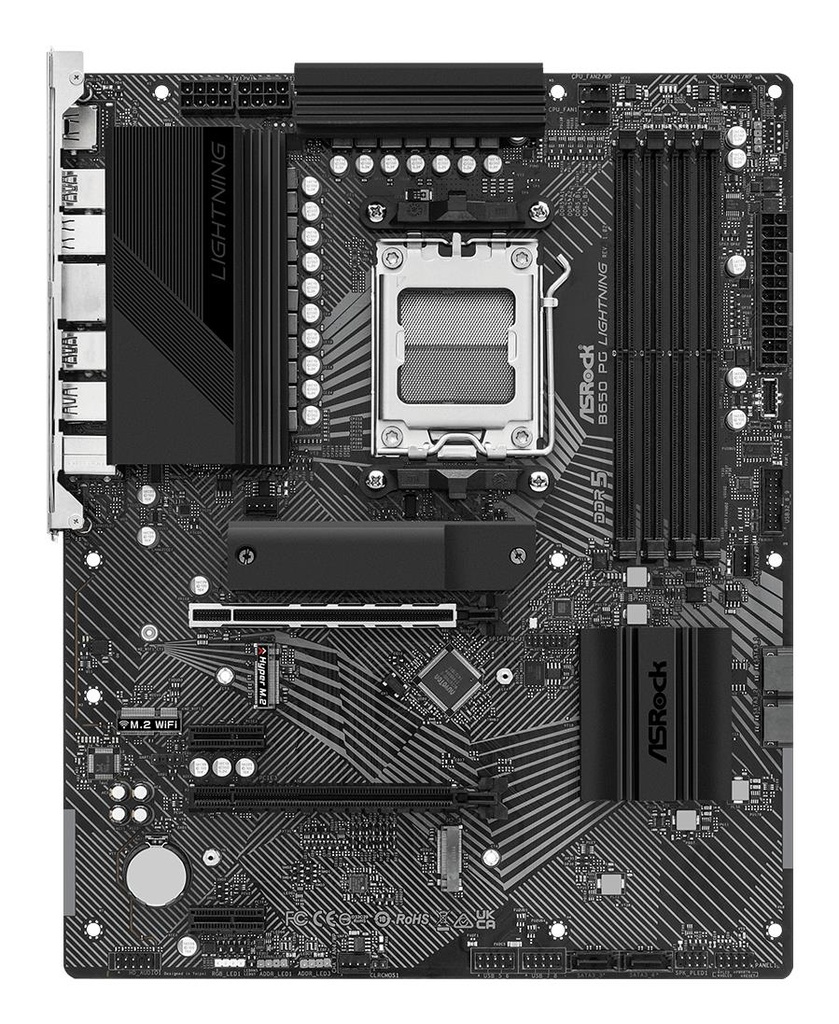

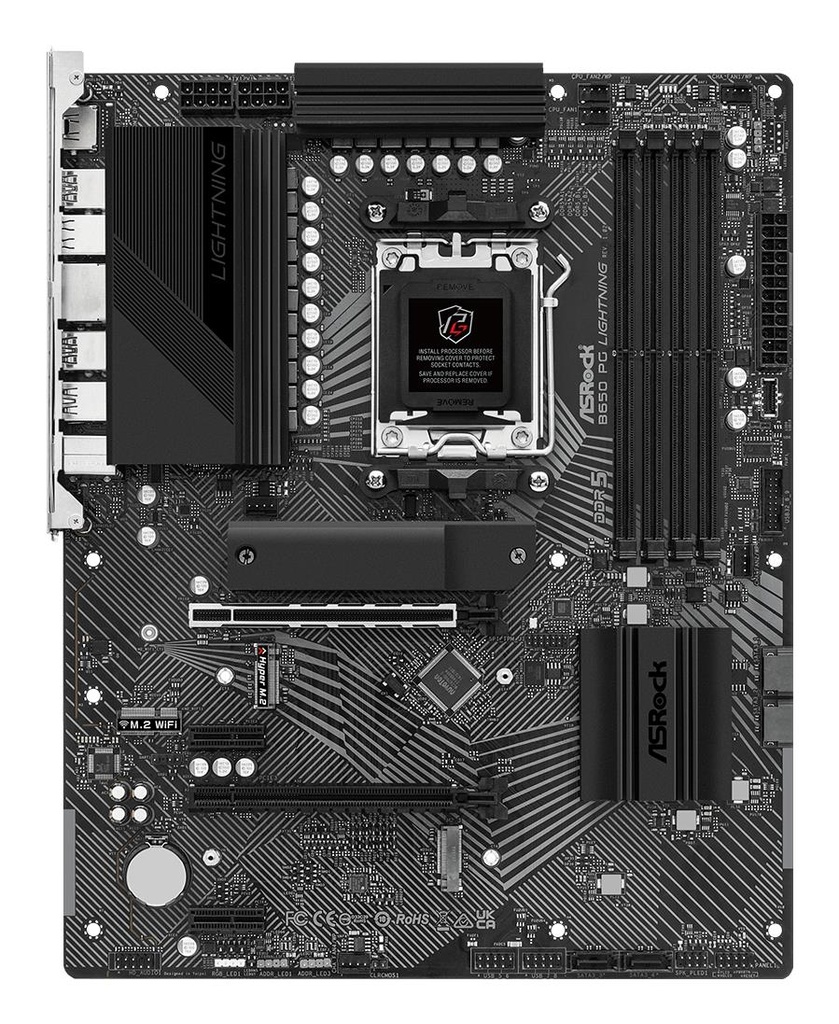

| Model | B650 PG Lightning |
Features
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
Processor
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
Memory
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 6400/6600/6666/6800 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA II |
| Supported storage drive types | HDD & SSD |
Graphics
| Graphics card | AMD RDNA 2 |
| Graphics card family | AMD |
| HDCP | Yes |
| On-board graphics card | Yes |
Internal I/O
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |

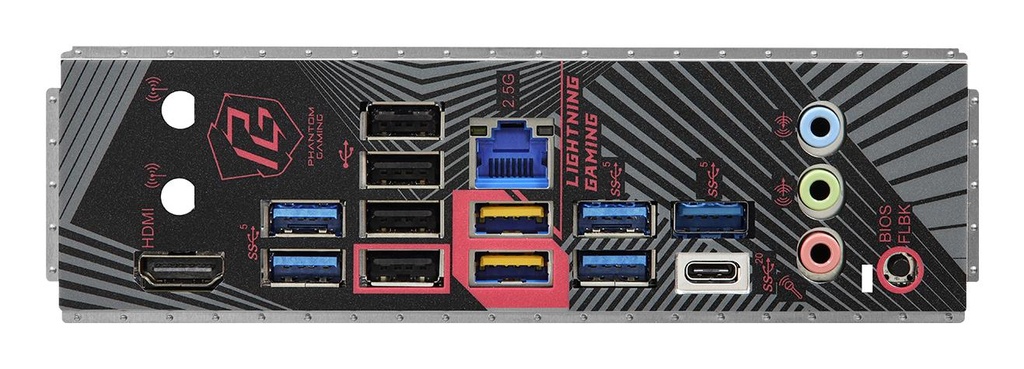

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Network
| Bluetooth | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
BIOS
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
Weight & dimensions
| Depth | 244 mm |
| Width | 305 mm |
Packaging content
| Cables included | SATA |
