Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
- Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
General
| Unit Calculated Weight | 1.25 kg |
| Unit Calculated Volume | 0.00614 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | GIGABYTE B760M GAMING PLUS WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax) |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.27 |

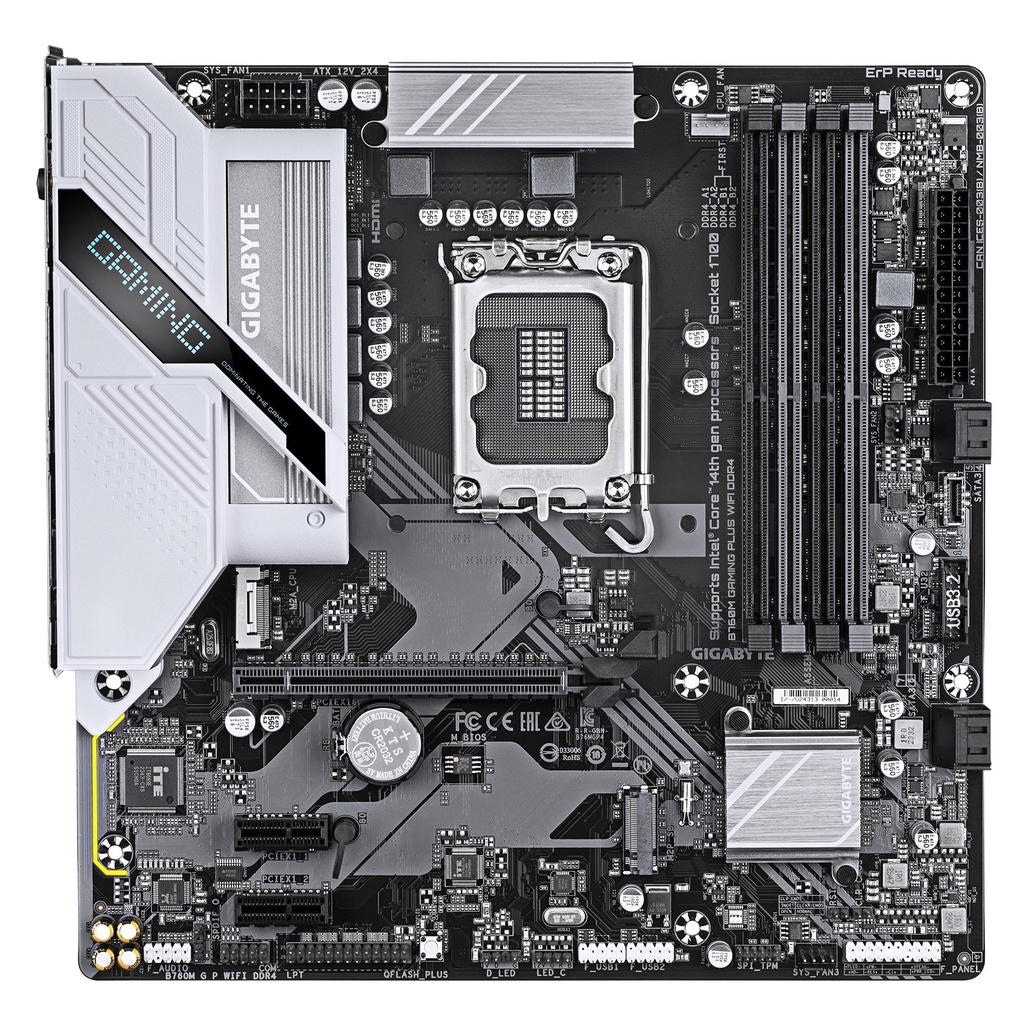

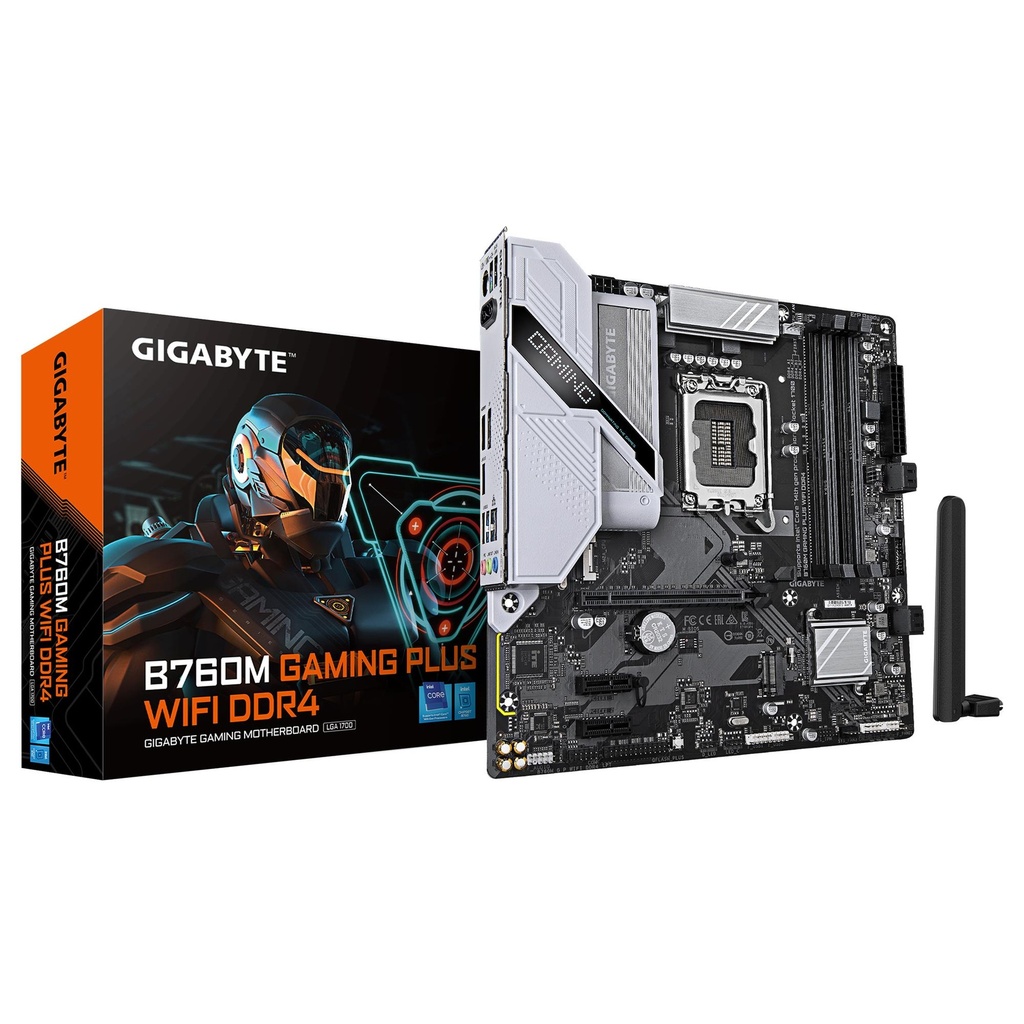

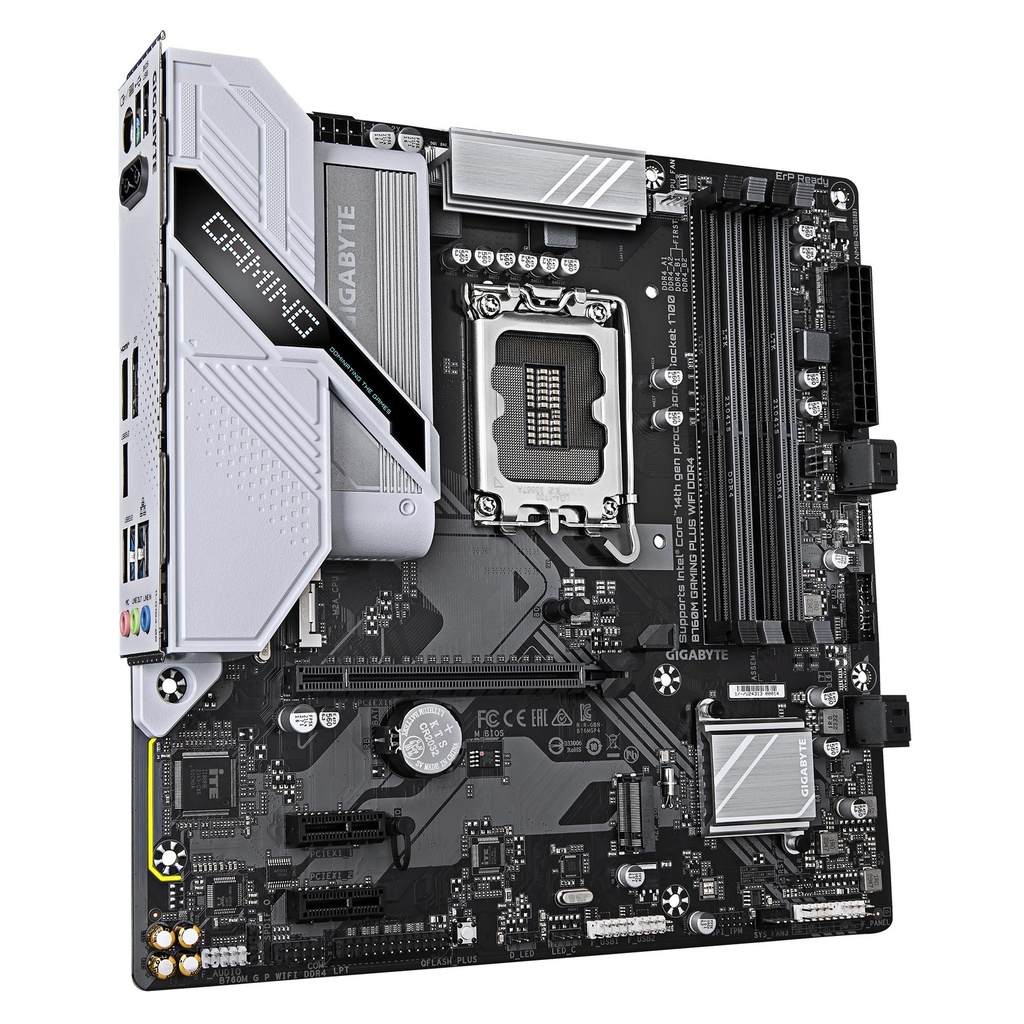

| Model | B760M GAMING PLUS WIFI DDR4 (REV. 1.1) |
Features
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source type | ATX |
| Product colour | Grey |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
Processor
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® |
| Maximum internal memory supported by processor | 128 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
Memory
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
Internal I/O
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 2 |
| Number of SATA III connectors | 4 |
| Parallel connector | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |

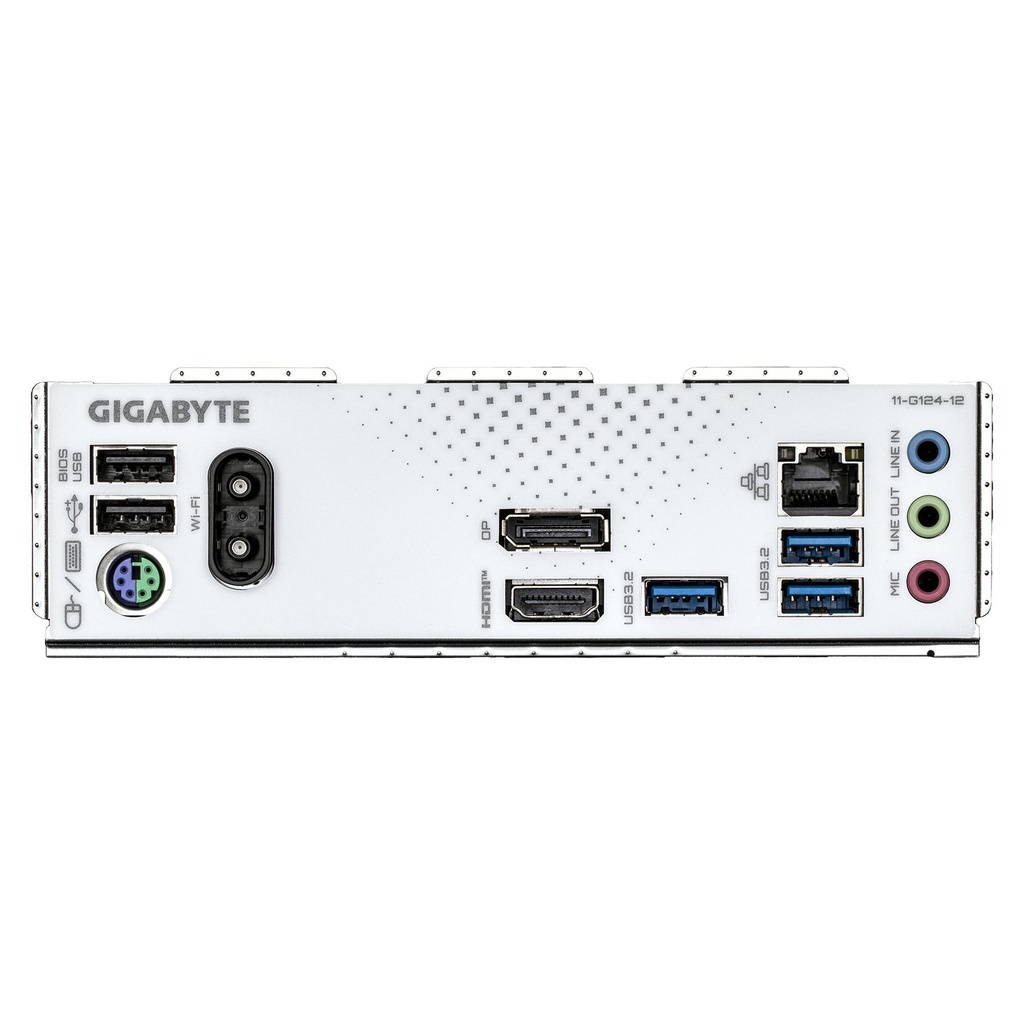

Rear panel I/O ports
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| WiFi-AP antenna jack | 2 |
Network
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
Expansion slots
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
BIOS
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Battery
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
Logistics data
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Packaging data
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1200 g |
| Package width | 270 mm |
Weight & dimensions
| Depth | 244 mm |
| Height | 35 mm |
| Width | 244 mm |
Packaging content
| Antenna included | Yes |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
Technical details
| Warranty period | 3 year(s) |
Other features
| Weight | 1100 g |
