IMPRESSIVE LIGHTING, SUPERIOR COOLING
Light Wings 140mm PWM offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
If you are looking for a quiet case fan with an impressive look from every angle, Light Wings 140mm PWM is your fan of choice. Not only a visual highlight in any PC case, it’s also reliable and performant. This fan hits the sweet spot between performance, noise and ARGB lighting.

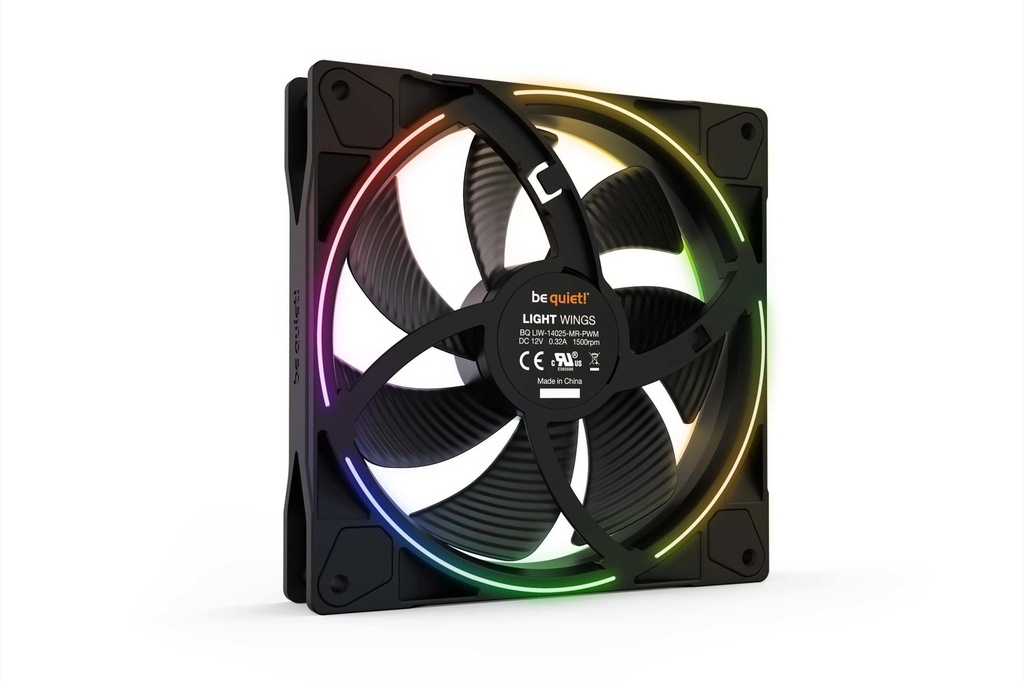

- ARGB lighting on front and rear
- Multiple colors and modes for an individual look thanks to 20 LEDs
- Illumination can be synced with the ARGB adjustments of the motherboard
- Seven silence-optimized fan blades for high airflow and low noise-generating turbulences
- Very quiet operation with max. 23.3dB(A)
- Long life rifle-bearing gives an operating lifetime of 60,000 hours

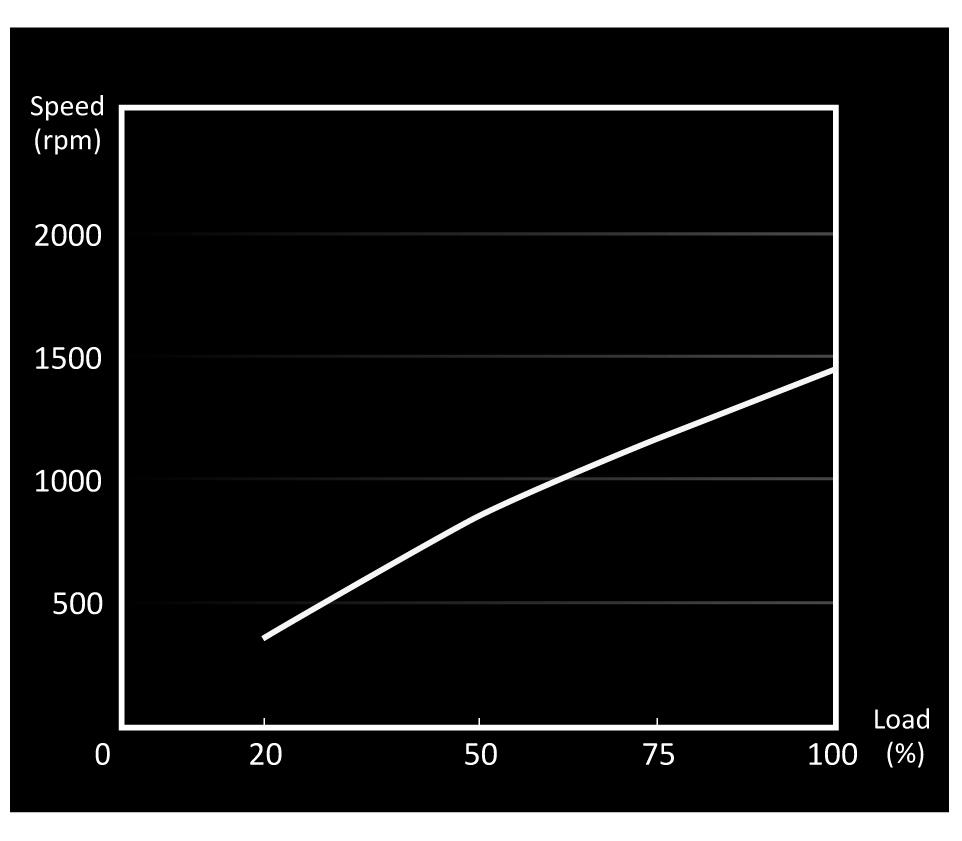

- PWM controlled fan speed through the motherboard
- Product conception, design and quality control in Germany
General
| Unit Calculated Weight | 0.35 kg |
| Unit Calculated Volume | 0.001033 cubm |
| Units per Shipping Box | 30 |
| Units per Pallet | 0 |
| Summary | be quiet! Light Wings 140mm ARGB PWM Fan Black. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1500 RPM, Airflow: 95.14 m³/h, Maximum air pressure: 1.49 mmH2O, Bearing type: Rifle bearing. Voltage: 5 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: Black |
| CnCode | 84145925 |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.15 |
| Model name | Light Wings |
| Model | BL074 |
Performance
| Airflow | 95.14 m³/h |
| Bearing type | Rifle bearing |
| Compatible processor series | Not supported |
| Fan diameter | 140 mm |
| Maximum air pressure | 1.49 mmH2O |
| Maximum airflow | 56 cfm |
| Mean time between failures (MTBF) | 60000 h |
| Noise level (high speed) | 23.3 dB |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Rotational speed (max) | 1500 RPM |
| Suitable location | Computer case |
| Supported processor sockets | Not supported |
| Type | Fan |
Design
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Product colour | Black |
Power
| Power consumption (typical) | 3.84 W |
| Rated current | 0.67 A |
| Rated voltage | 12 V |
| Safety current | 0.32 Ah |
| Voltage | 5 - 13.2 V |
Weight & dimensions
| Cable length | 0.5 m |
| Depth | 140 mm |

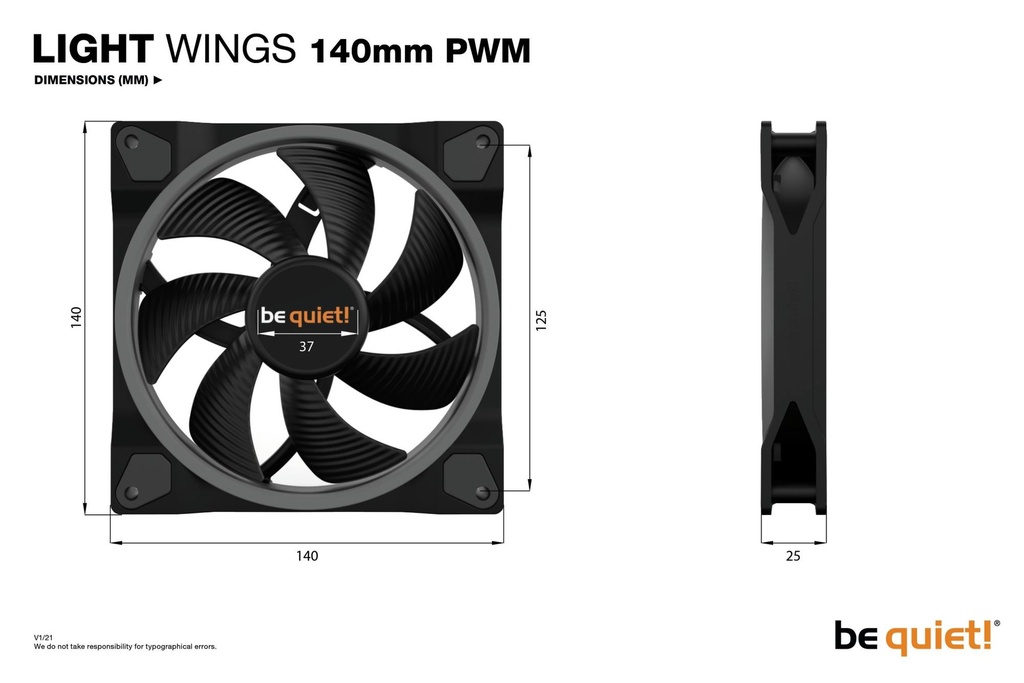

| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Height | 25 mm |
| Package depth | 173 mm |
| Package height | 29.5 mm |
| Package weight | 325 g |
| Package width | 153 mm |
| Weight | 241 g |
| Width | 140 mm |
Technical details
| Compliance certificates | CE/RoHS/WEEE |
| Sustainability compliance | Yes |

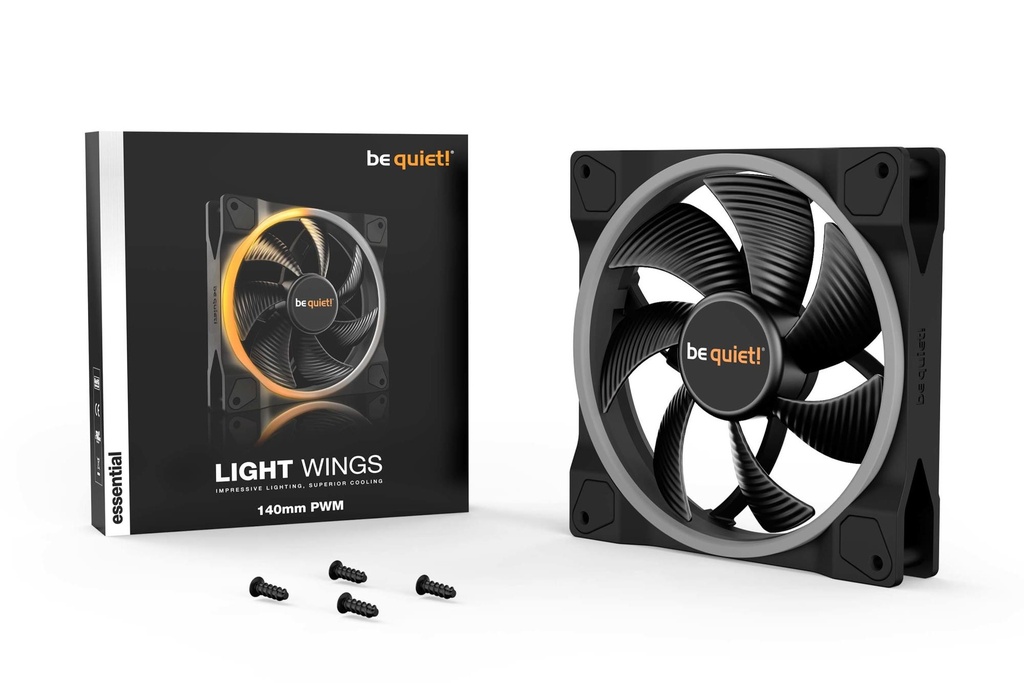

Packaging content
| Number of screws | 4 |
| Screws included | Yes |
Other features
| Country of origin | China |
Logistics data
| Harmonized System (HS) code | 84733080 |
| Products per shipping (inner) case | 30 pc(s) |
| Shipping (inner) case gross weight | 10500 g |
| Shipping (inner) case height | 200 mm |
| Shipping (inner) case length | 478 mm |
| Shipping (inner) case width | 320 mm |
