QUIET AND BREATHTAKING

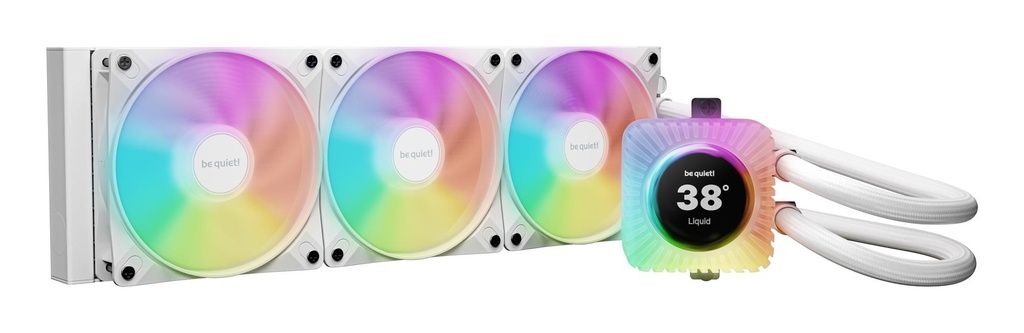

Light Loop IO LCD 360mm White is an extremely high-performing All-in-One water cooler featuring an IPS display and intense RGB lighting, designed for heavily overclocked systems. An IO Controller, enabling software control, and daisy-chained fans are included. Engineered with silence-optimized fan blades and an advanced IC for pump control, the Light Loop IO LCD 360mm White delivers exceptional, whisper-quiet performance.
- Advanced IPS display to show system information, videos, images and a wide range of extensive customization options
- ARGB lighting with vivid presets and individualizations are available via IO Center for Windows for instant use
- High cooling performance and whisper-quiet operation for all consumer CPUs
- 3 daisy-chained Light Wings LX PWM high-speed fans with funnel-shaped air outlets for colorful and vibrant cooling

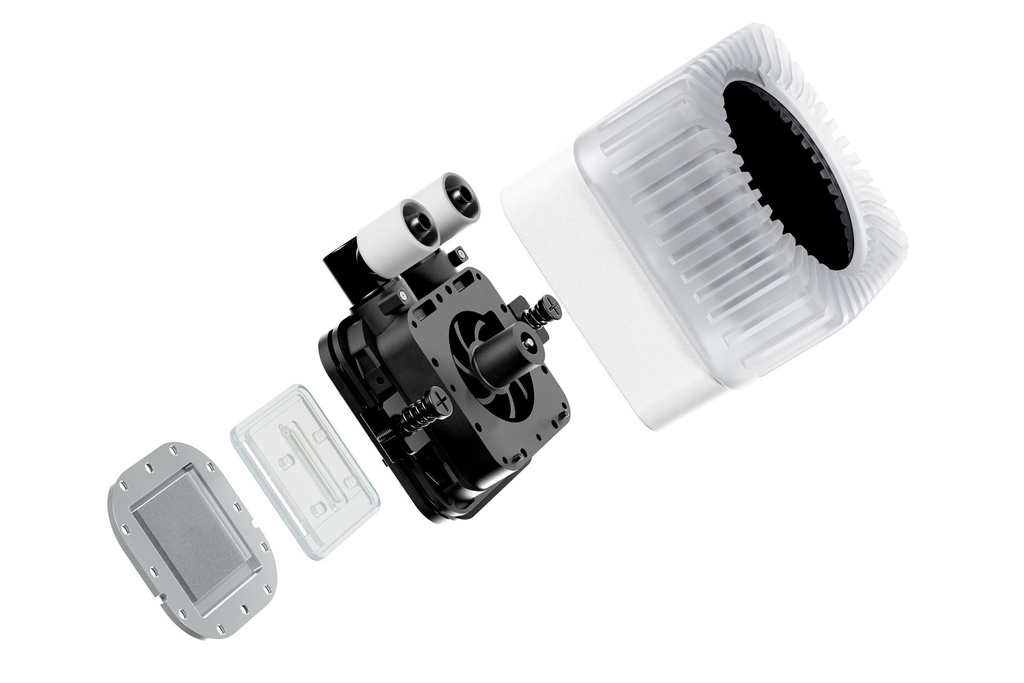

- Specially designed jet plate and cold plate for superior performance
- State-of-the-art pump with progressive IC
- Flexible sleeved tubes and convenient mounting ensure easy handling
- Easy-to-access refill port
General
| Summary | be quiet! Light Loop IO LCD 360 mm White. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Airflow: 105.1 m³/h, Maximum air pressure: 2.51 mmH2O, Bearing type: Rifle bearing. Height: 52 mm. Product colour: White |
| Unit Box Height | 0.205 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.14 |
| Model name | Light Loop IO LCD 360 mm White |
Performance
| Airflow | 105.1 m³/h |
| Bearing type | Rifle bearing |
| Compatible processor series | AMD Ryzen 9000 Series/Intel® Core™ i9 |
| Fan diameter | 120 mm |

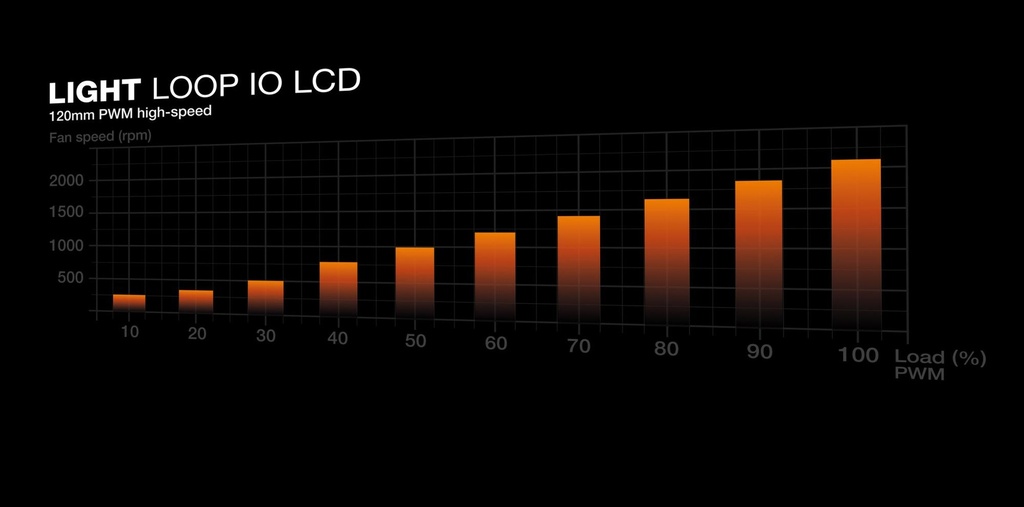

| Fan speed (max) | 2100 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
| Maximum air pressure | 2.51 mmH2O |
| Maximum airflow | 61.8 cfm |
| Noise level (high speed) | 36.8 dB |
| Noise level (low speed) | 17.2 dB |
| Pulse-width modulation (PWM) support | Yes |
| Pump motor speed | 2900 RPM |
| Pump motor speed (max) | 2900 RPM |
| Pump motor speed (min) | 2900 RPM |
| Quantity per pack | 1 pc(s) |
| Suitable location | Processor |
| Supported processor sockets | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/Socket AM4/Socket AM5 |
| Type | All-in-one liquid cooler |
Design
| Base plate material | Copper |
| Daisy chain | Yes |
| Display type | Not applicable |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| Number of fans | 3 fan(s) |
| Product colour | White |

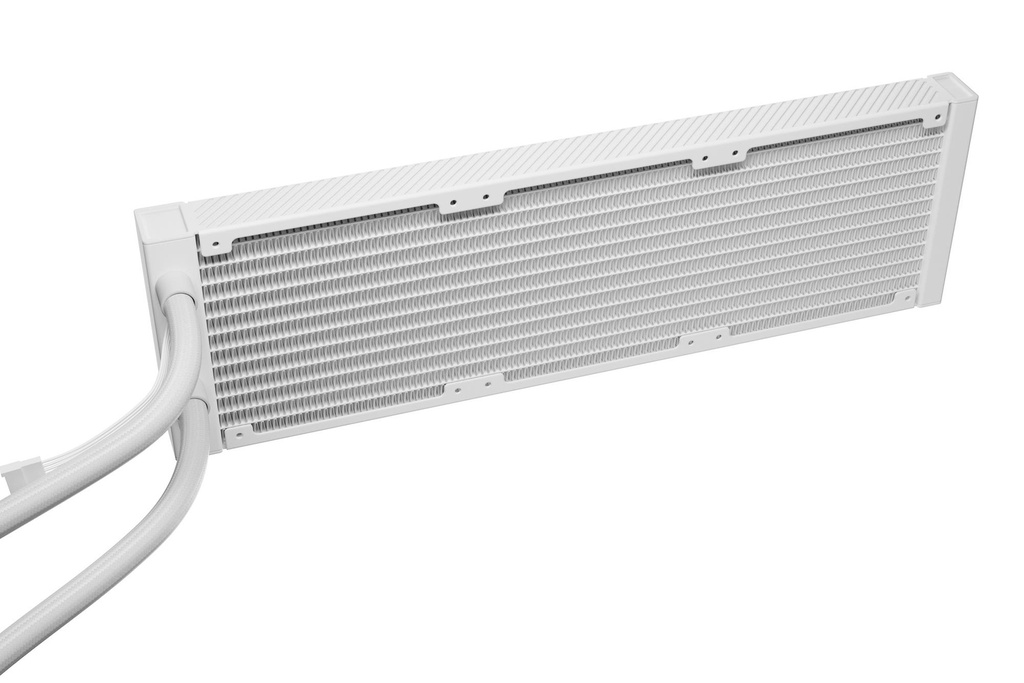

| Radiator material | Aluminum |
Power
| Fan current | 0.17 A |
| Fan power consumption | 5.4 W |
| Fan voltage | 12 V |
Weight & dimensions
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Height | 52 mm |
| Package depth | 448 mm |
| Package height | 137 mm |
| Package weight | 2610 g |
| Package width | 205 mm |

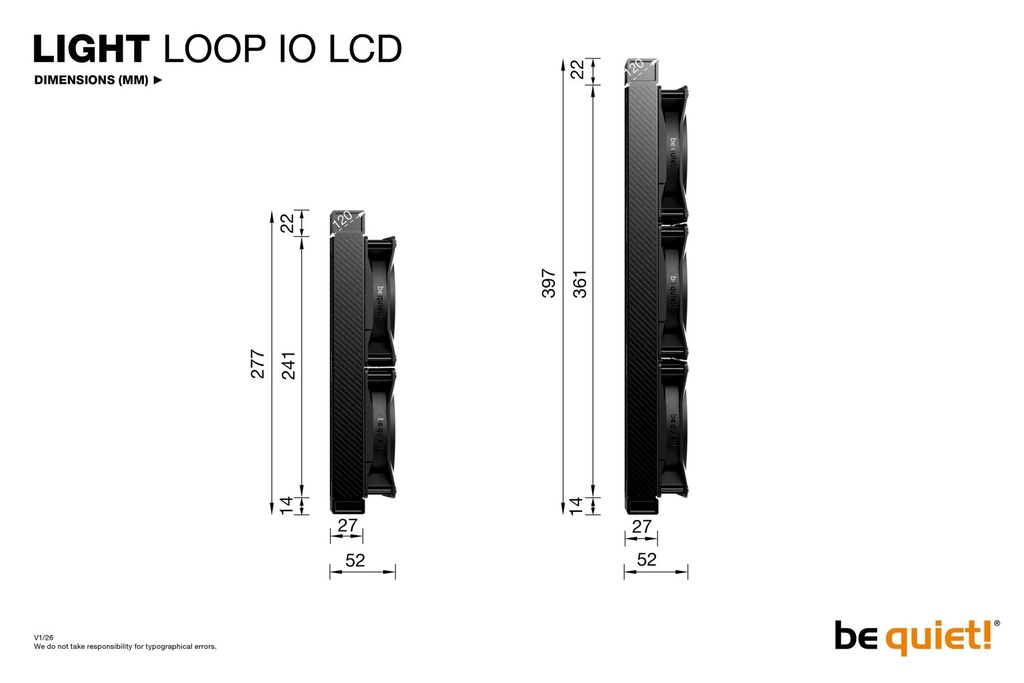

| Radiator depth | 397 mm |
| Radiator height | 27 mm |
| Radiator width | 120 mm |
| Tube length | 400 mm |
| Waterblock depth | 63.8 mm |
| Waterblock height | 54 mm |
| Waterblock width | 61.9 mm |
| Weight | 1600 g |
Technical details
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS/UKCA |
| Doesn't contain | Cadmium/Lead/Mercury |
| Warranty period | 3 year(s) |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Packaging content
| Manual | Yes |
| Mounting kit | Yes |
| Package type | Box |
Other features
| Thermal grease | Yes |
