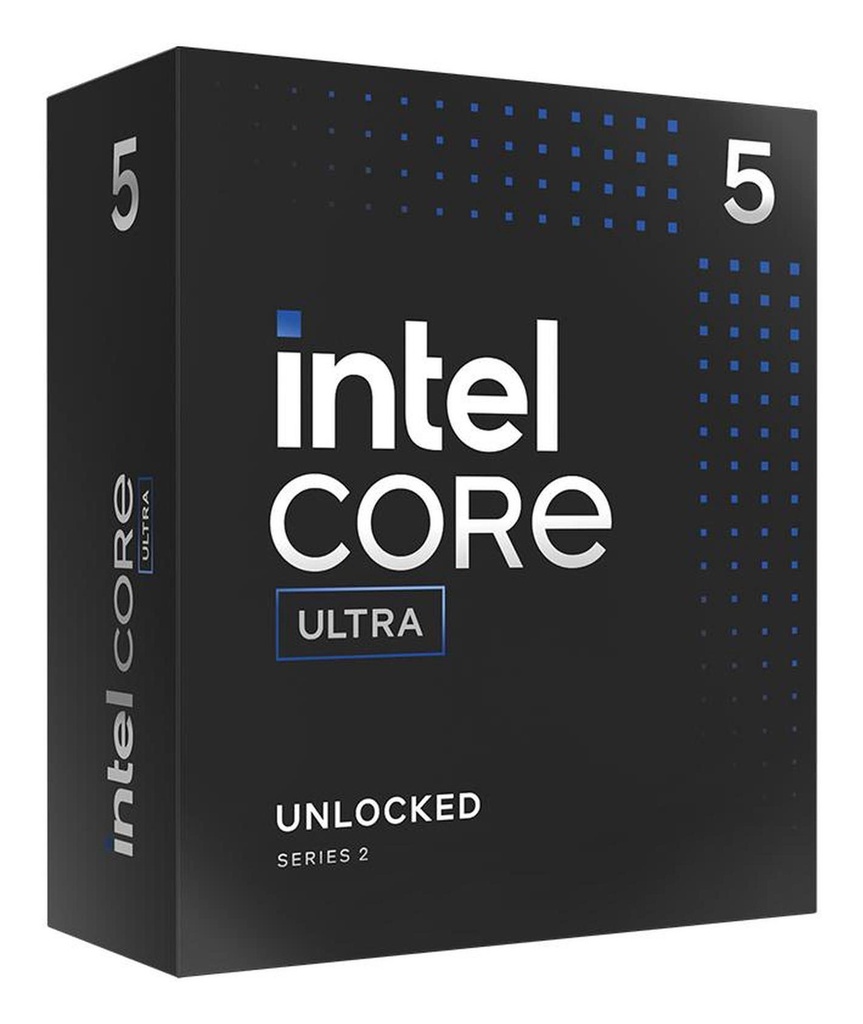

INTEL U5-245KF Intel Core Ultra Desktop Intel Core Ultra 5 245KF 14xCores Cache 24 MB Socket LGA 1851 (Socket V1) Box BX
General
| Unit Calculated Weight | 0.106 kg |
| Unit Calculated Volume | 0.00072 cubm |
| Units per Shipping Box | 5 |
| Model number | U5-245KF |
| CPU Family name | Intel Core Ultra |
| Summary | Intel Core Ultra 5 245KF. Processor family: Intel Core Ultra 5, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 22 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. L2 cache: 26624 KB, Maximum internal memory: 192 GB |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.045 |
Processor
| AI software frameworks supported by CPU | DirectML/ONNX RT/OpenVINO/WebNN/Windows ML |
| Cooler included | No |
| Efficient cores | 8 |
| Efficient-core base frequency | 3.6 GHz |
| Efficient-core boost frequency | 4.6 GHz |
| Maximum number of DMI lanes | 8 |
| Maximum turbo power | 159 W |
| Package type | Box |
| Performance cores | 6 |
| Performance-core base frequency | 4.2 GHz |
| Performance-core boost frequency | 5.2 GHz |
| Processor ARK ID | 241066 |
| Processor base power | 125 W |
| Processor boost frequency | 5.2 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Processor codename | Arrow Lake |
| Processor cores | 14 |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 245KF |
| Processor operating modes | 64-bit |
| Processor socket | LGA 1851 (Socket V1) |
| Stepping | B0 |
Neural processor unit (NPU)
| AI software frameworks supported by NPU | DirectML/ONNX RT/OpenVINO/WebNN/Windows ML |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 TOPs |
| Sparsity support | Yes |
| Total processor performance up to | 22 TOPs |
| Windows Studio effects support | Yes |
Memory
| Maximum internal memory supported by processor | 192 GB |
| Memory channels | Dual-channel |
| Memory clock speeds supported by processor | 6400 MHz |
| Memory types supported by processor | DDR5-SDRAM |
Graphics
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| On-board graphics card model | Not available |
Features
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Desktop |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 4.0/5.0 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0/SSE4.1/SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2020A |
| Use conditions | PC/Client/Tablet |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Thread Director | Yes |
| Intel® Thunderbolt 4 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
Operational conditions
| Maximum operating temperature | 105 °C |
Logistics data
| Harmonized System (HS) code | 8542310050 |
Technical details
| Launch date | Q4'24 |
| Memory speed (max) | 6400 MHz |
| Status | Launched |
Other features
| L2 cache | 26624 KB |
| Maximum internal memory | 192 GB |
