| Unit Calculated Weight | 0.104 kg |
| Unit Calculated Volume | 0.0006912 cubm |
| Units per Shipping Box | 5 |

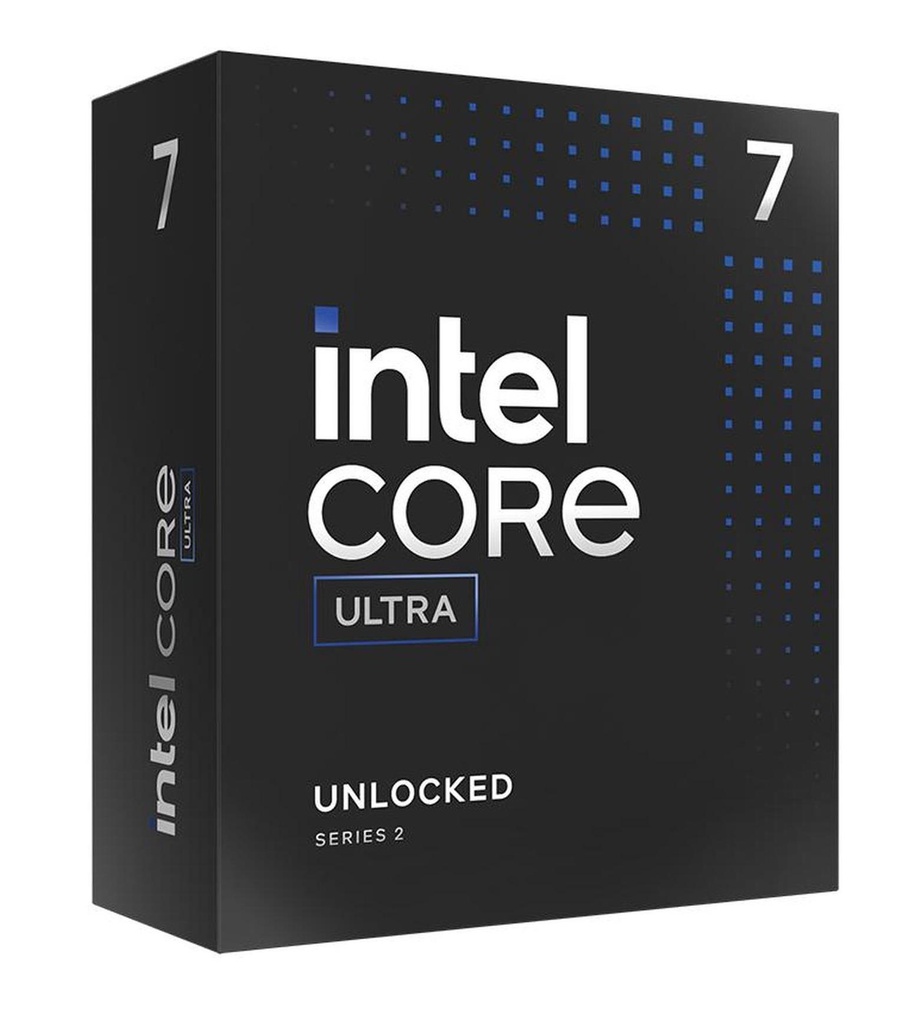

| Model number | U7-265K |
| CPU Family name | Intel Core Ultra |
| Summary | Intel Core Ultra 7 265K. Processor family: Intel Core Ultra 7, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 33 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0 |
| Unit Box Height | 0.045 |
| Unit Box Length | 0.115 |
| Unit Box Width | 0.105 |
| AI software frameworks supported by CPU | DirectML/ONNX RT/OpenVINO/WebNN/Windows ML |
| Cooler included | No |
| Efficient cores | 12 |
| Efficient-core base frequency | 3.3 GHz |
| Efficient-core boost frequency | 4.6 GHz |
| Maximum number of DMI lanes | 8 |
| Maximum turbo power | 250 W |
| Package type | Box |
| Performance cores | 8 |
| Performance-core base frequency | 3.9 GHz |
| Performance-core boost frequency | 5.4 GHz |
| Processor ARK ID | 241063 |
| Processor base power | 125 W |
| Processor boost frequency | 5.5 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Processor codename | Arrow Lake |
| Processor cores | 20 |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 265K |
| Processor operating modes | 64-bit |
| Processor socket | LGA 1851 (Socket V1) |
| Processor threads | 20 |
| Stepping | B0 |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card | Yes |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card dynamic frequency (max) | 2000 MHz |
| On-board graphics card ID | 0x7D67 |
| On-board graphics card model | Intel® Graphics |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card outputs supported | DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| Xe-cores | 4 |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Desktop |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 4.0/5.0 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0/SSE4.1/SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2020A |
| Use conditions | PC/Client/Tablet/Workstation |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel vPro® Enterprise Platform Eligibility | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Active Management Technology (Intel® AMT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU | Yes |
| Intel® Hardware Shield Eligibility | Yes |
| Intel® One-Click Recovery | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Remote Platform Erase (RPE) | Yes |
| Intel® Secure Key | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Thread Director | Yes |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Thunderbolt 4 | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.5 GHz |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
